6.1 Inch OLCD Display 1080×2160 MIPI IPS AMOLED Display For Handheld PDA

6.1 Inch AMOLED Display Overview

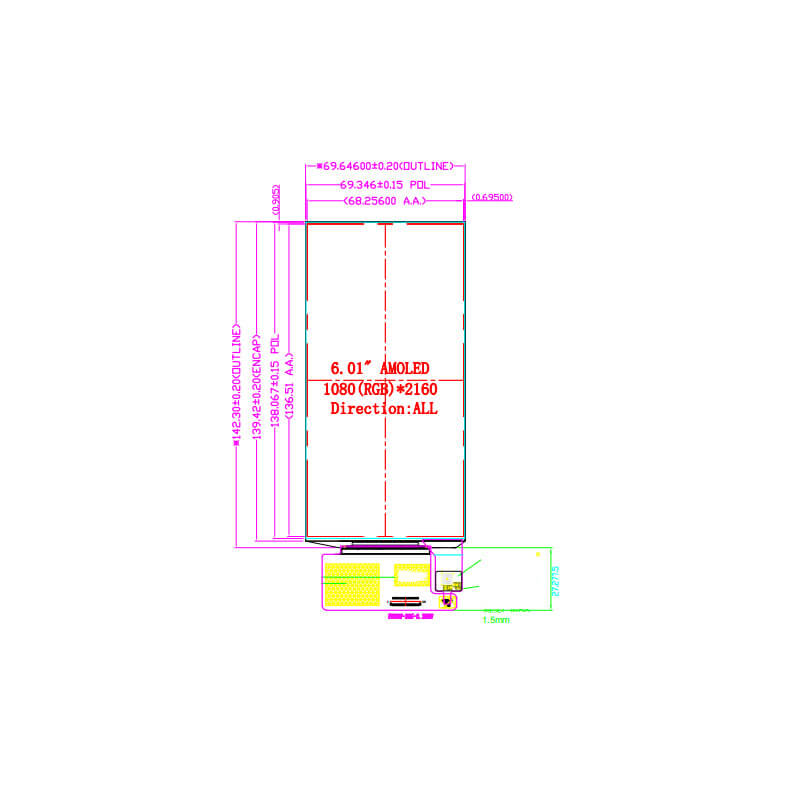

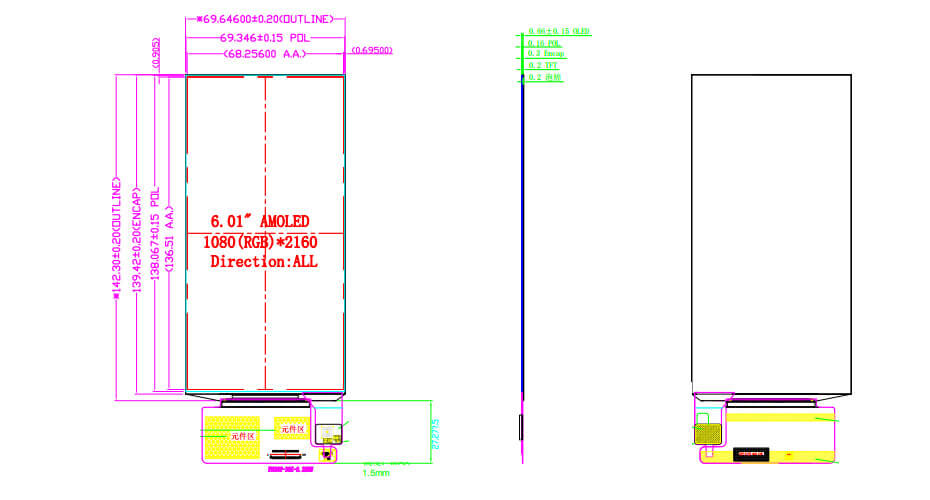

ET6D0103 is a 6.1 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET6D0103 supports a resolution of 1080×2160 with an approximate 9:18 aspect ratio (W:H) and offers viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 68.256(W) × 136.51(H) mm and an outline dimension of 69.646(W) × 142.3(H) mm, and adopts a MIPI interface for signal transmission. The display operates within a temperature range of -20°C to 70°C (storage: -30°C to 80°C). Designed without a touch function, ET6D0103 is suitable for handheld PDA applications requiring high-resolution display performance.

AMOLED Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
