7.6 Inch Square Display 800X800 MIPI HDMI TFT LCD Display with HDMI Driver Board

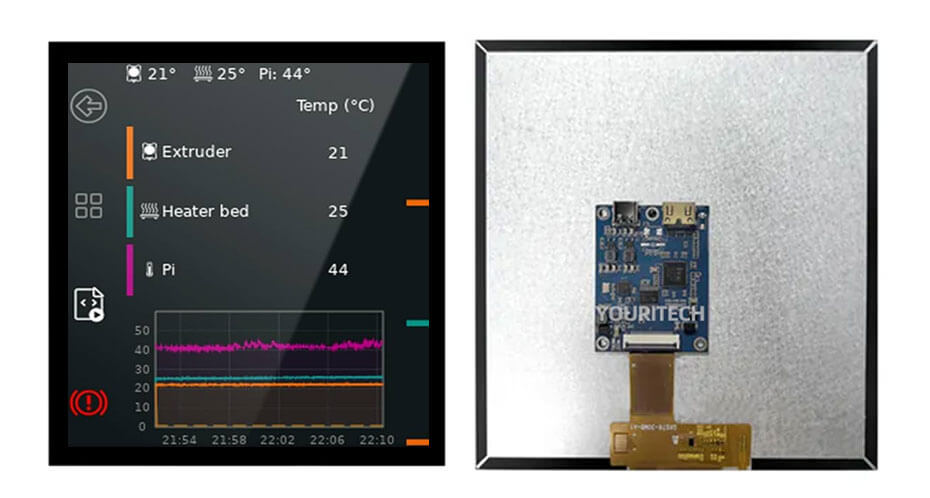

7.6 Inch 800X800 Square Display Overview
7.6 Inch Square Display 800X800 MIPI HDMI TFT LCD Display with HDMI Driver Board1) 7.6 Inch HDMI TFT Display.

7.6 Inch 800X800 Square Display Features
Model：ET076SQ01-V-HDMI
1) 7.6 Inch HDMI TFT Display with 800×800 Hardware Resolution.
2) With Capacitive Touch Screen, Support 5-point model control, USB touch, free drive.

HDMI1.4 to Dual-port MIPI DSI/CSI/LVDS with Audio
1) HDMI1.4 Receiver
2) Single/Dual-Port MIPI DSI/CSI Transmitter
3) Single/Dual-Port LVDS Transmitter

7.6 Inch 800×800 IPS TFT Display
1) Interface Mode: MIPI
2) Driver IC: ST7703; Touch IC: FT6336U
3) Display mode: Normally black
4) Operation Temperature: -20-70℃

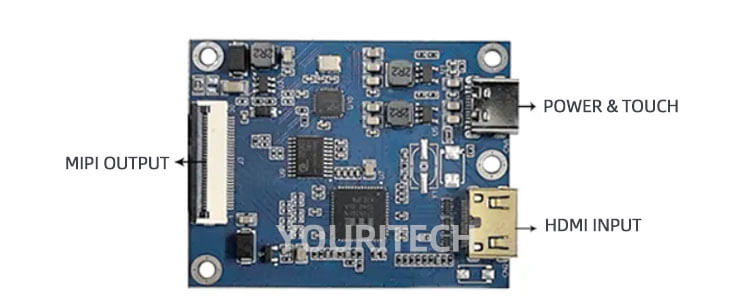

Onboard Resources

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.

Display Applications
