5.1"-7" LCD Display (6.2")

6.2 Inch Bar LCD Display 360x960 Full Viewing Angle IPS SPI RGB HD Display With Driver Board For Industrial Medical

Part No.:ET062NH02-T-HDMI
Size:6.2″ inch
Resolution:360x960
Panel Interface:SPI/RGB
Display mode:Transmissive

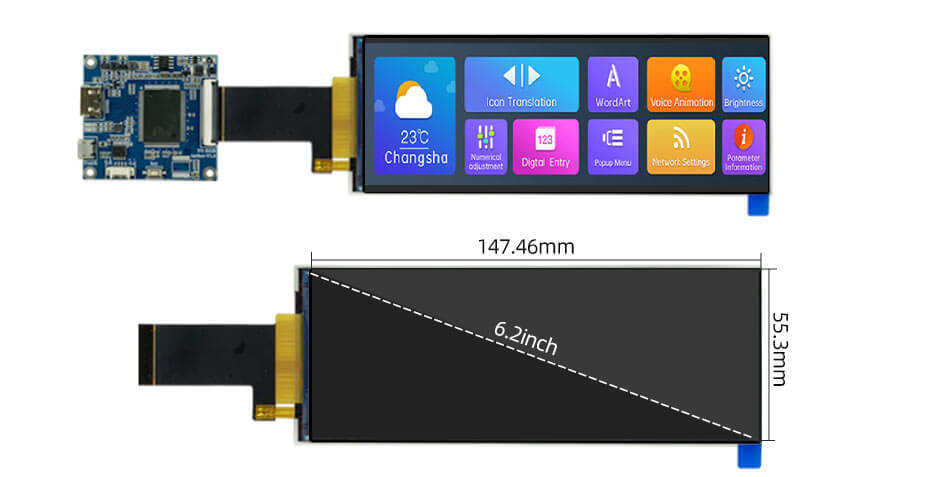

Outline Dimension:55.3x147.66mm
Active Area:/
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:430nits
Operation / Storage Temp:0~70°C / -10~80°C
Touch:no

6.2 Inch LCD Display Overview

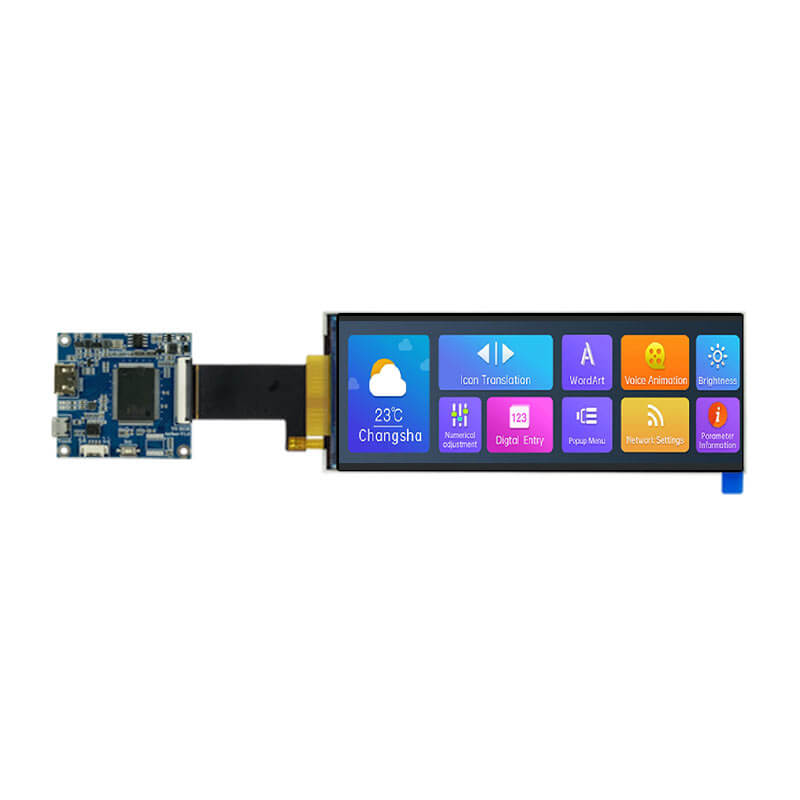

ET062NH02-T-HDMI is a 6.2-inch bar-type LCD display designed for industrial and medical applications. It supports a 360 × 960 resolution and features a full viewing angle IPS panel with SPI/RGB interface. The display adopts a transmissive mode and delivers a typical brightness of 430 nits, with wide viewing angles of 80° in all directions. It comes in a slim outline size of 55.3 × 147.66 mm and operates reliably within a temperature range of 0 to 70 °C (storage −10 to 80 °C). With no touch function, this display is well suited for embedded control and information display systems requiring a compact, high-clarity bar-format screen.

Size: 6.2 inch
Resolution: 360RGBx960
Brightness: 430cd/m2
Viewing Direction: Full viewing angle
