0.48"-5" LCD Display (2.5")

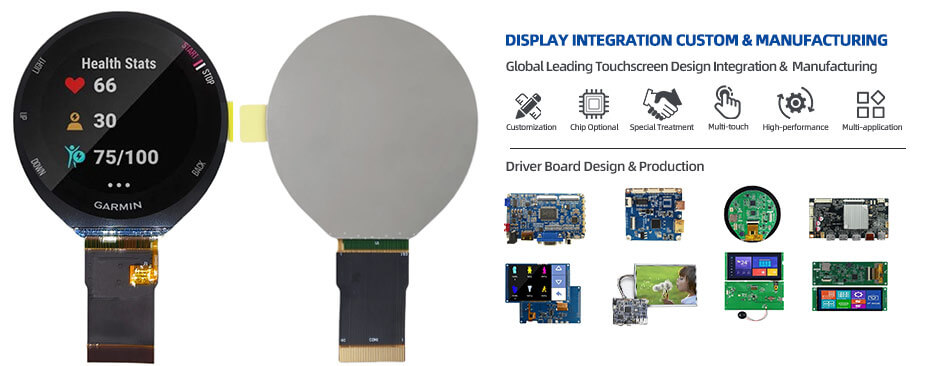

2.48 Inch Circular Display 480x480 TTL 500nits High Brightness IPS Round LCD Display For Wearable

Part No.:ET024CR01-A
Size:2.48″ inch
Resolution:480x480
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:65.87x69.04mm
Active Area:62.928x62.928mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:500(Typ.)
Operation / Storage Temp:-20~70°C / -30~70°C
Touch:no

2.48 Inch Circular Display Overview
ET024CR01-A is a 2.48-inch circular high-brightness IPS LCD display designed for wearable devices. It features a 480 × 480 resolution with a TTL interface, delivering 500 cd/m² typical brightness across a 62.928 × 62.928 mm active area. The display offers 85° viewing angles, a 65.87 × 69.04 mm outline, operates from –20 to 70 °C, supports storage from –30 to 70 °C, and is supplied without touch functionality.
