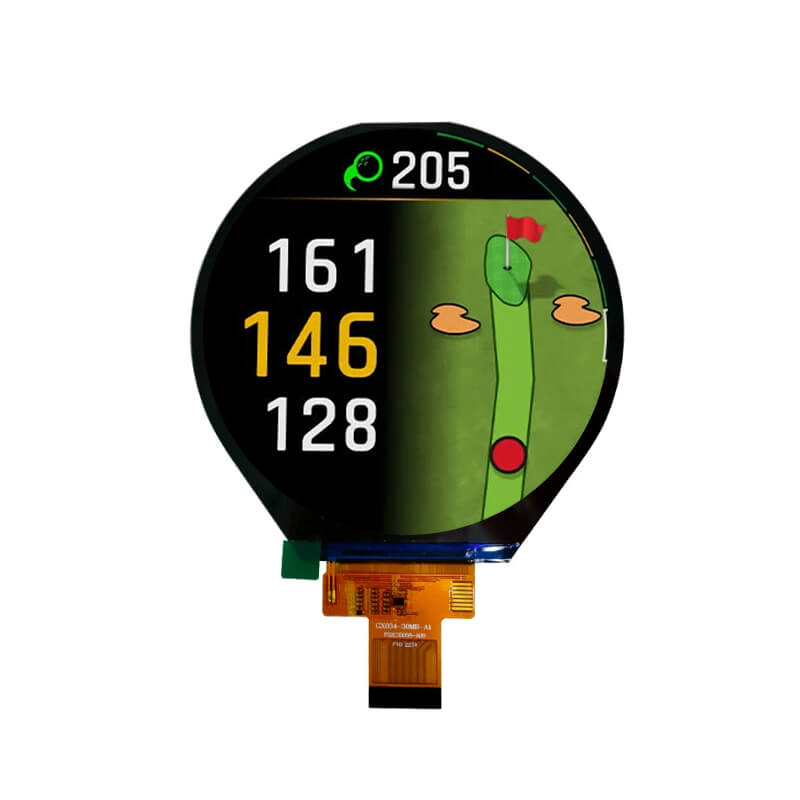

3.4 Inch Round Display 800×800 MIPI 30-Pin IPS Circular Display with Capacitive Touch & HDMI Driver Board

3.4 Inch Round Display 800×800 MIPI 30-Pin IPS Circular Display with Capacitive Touch & HDMI Driver Board Overview
ET034CR01-GX is a 3.4-inch round IPS TFT-LCD display featuring an 800×800 resolution and a Normally Black display mode. It uses a MIPI interface and provides an IPS wide viewing angle for clear and consistent images from different viewing directions. The display features a brightness of 350 cd/m², an active area of 87.6(W) × 87.6(H) mm, and an outline dimension of 94.9(W) × 96.95(H) × 2.22(D) mm. ET034CR01-GX supports an operating temperature range of -20°C to 70°C and a storage temperature range of -25°C to 75°C. The module integrates a capacitive touchscreen and can be paired with an HDMI driver board, making it suitable for embedded devices, control panels, instruments, smart devices, and other customized display applications.

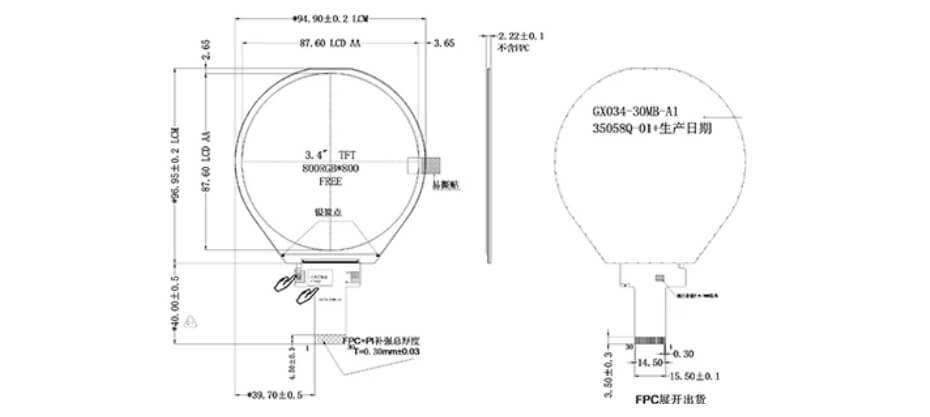

3.4 Inch Circular Display Drawing

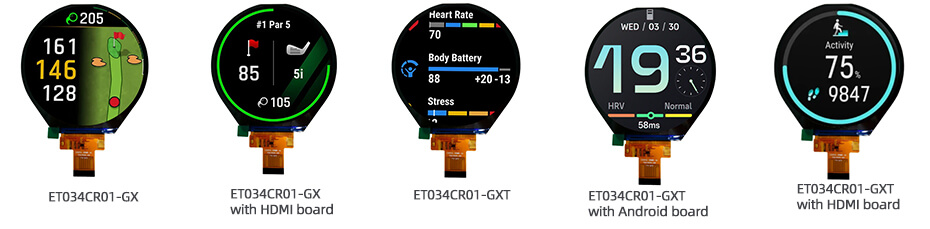

More 3.4 Inch Circular Display Solution For Reference
ET034CR01-GX (Non Touch)
ET034CR01-GX with HDMI board
ET034CR01-GXT (Capacitive Touch)
ET034CR01-GXT with Android board
ET034CR01-GXT with HDMI board

Circular Display Application

Production and Manufacturing
