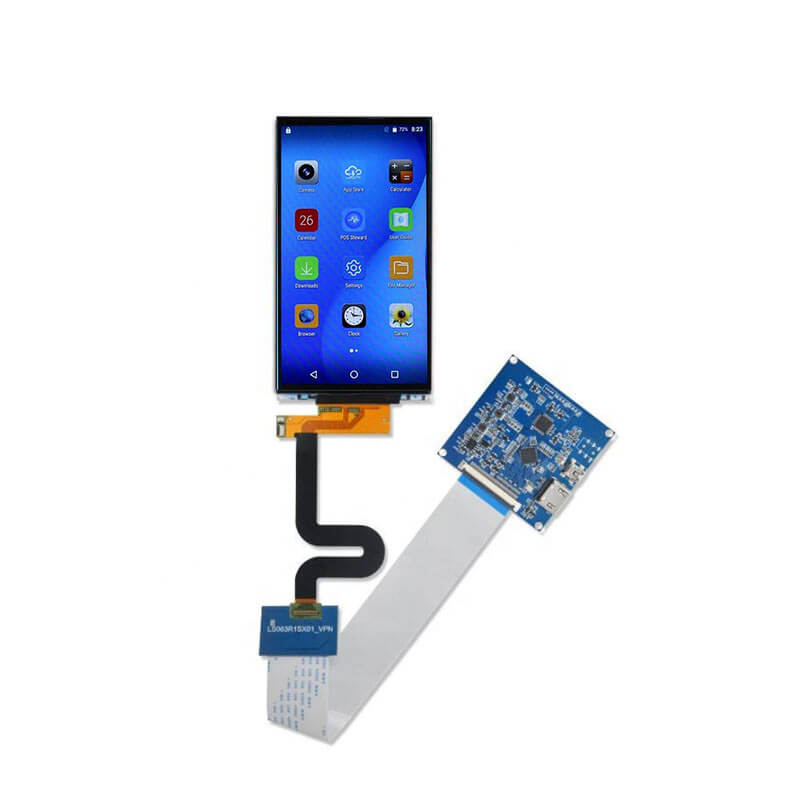

LS063R1SX01 Sharp 6.3 Inch TFT LCD Display 1440x2560 MIPI Touch LCD Module With Driver Board

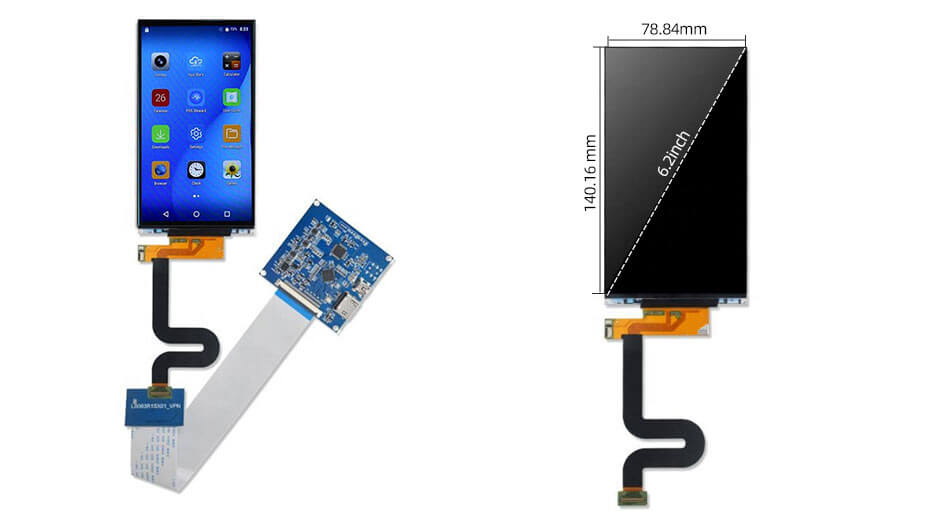

6.3 Inch LCD Display Overview

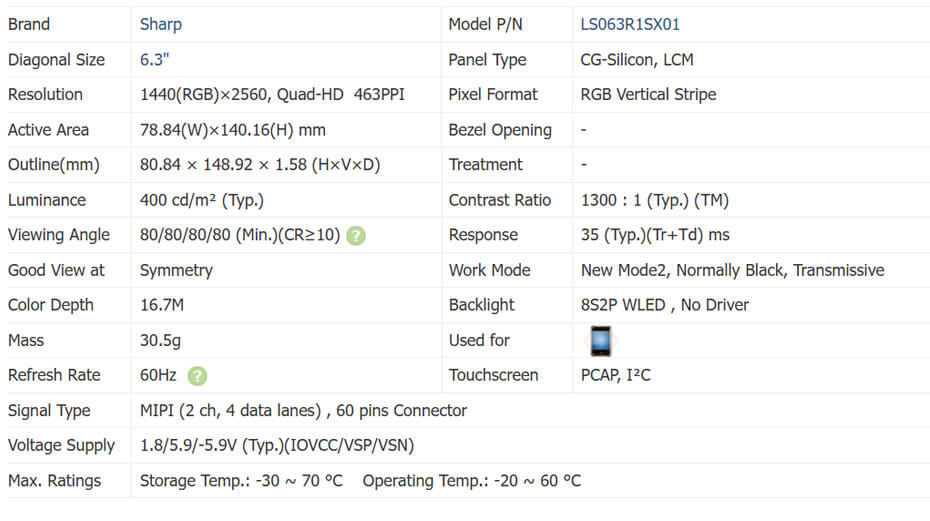

LS063R1SX01 is a 6.3 inch diagonal CG-Silicon display screen with a built-in WLED backlight, without backlight driver, touchscreen PCAP. LS063R1SX01 supports display 1440(RGB)×2560 (Quad-HD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 463 PPI. As for mechanical detail, it features active area of 78.84(W)×140.16(H) mm, outline size of 80.84(W)×148.92(H)×1.58(D) mm, net weight of 30.5g. As a New Mode2, Normally Black, Transmissive LCM product, LS063R1SX01 can provides 400 cd/m² display brightness 1300:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted 8S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. LS063R1SX01 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 60 pins Connector with power supply voltage of 1.8/5.9/-5.9V (Typ.)(IOVCC/VSP/VSN). It's typical vertical frame rate (Fv) is 60Hz.

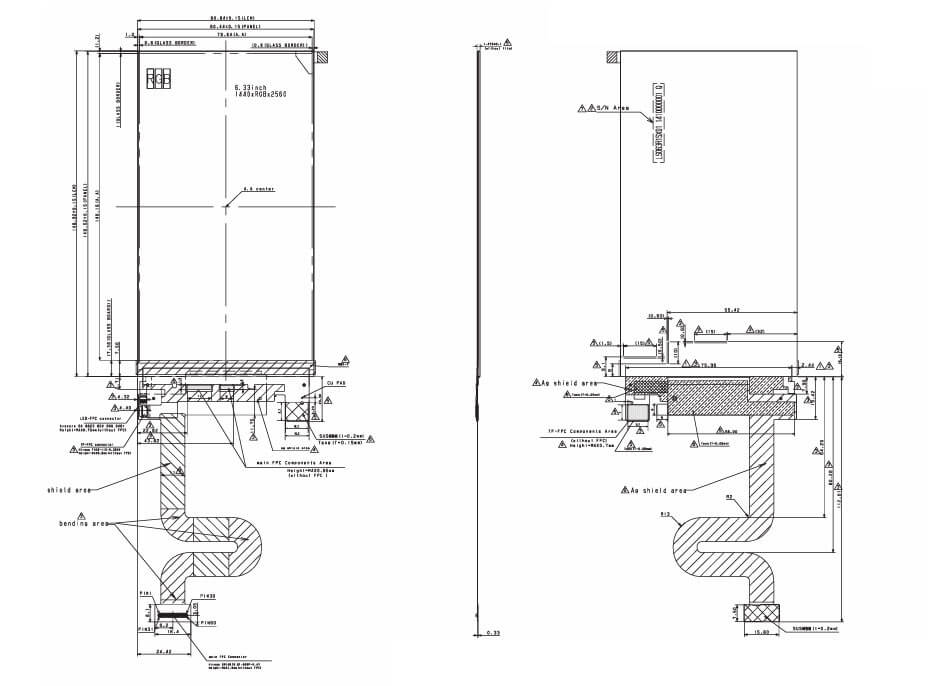

6.3 Inch LCD Display Drawing
