New Original 13.0 Inch 2160x1440 Resolution Full Viewing Angle with eDP 30 Pins LCD Display Screen For Laptop

  • Part No.:P130ZFA-BA1
  • Size:13″ inch
  • Resolution:2160x1440
  • Panel Interface:eDP (4 Lanes)
  • Display mode:IPS,Transmissive
  • Outline Dimension:280.75(W)x196.82(H)mm
  • Active Area:274.75(W)x183.17(H)mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness(cd/m2):330cd/m²
  • Operation / Storage Temp:-10~50°C / -20~65°C
  • Touch:no

Products Description

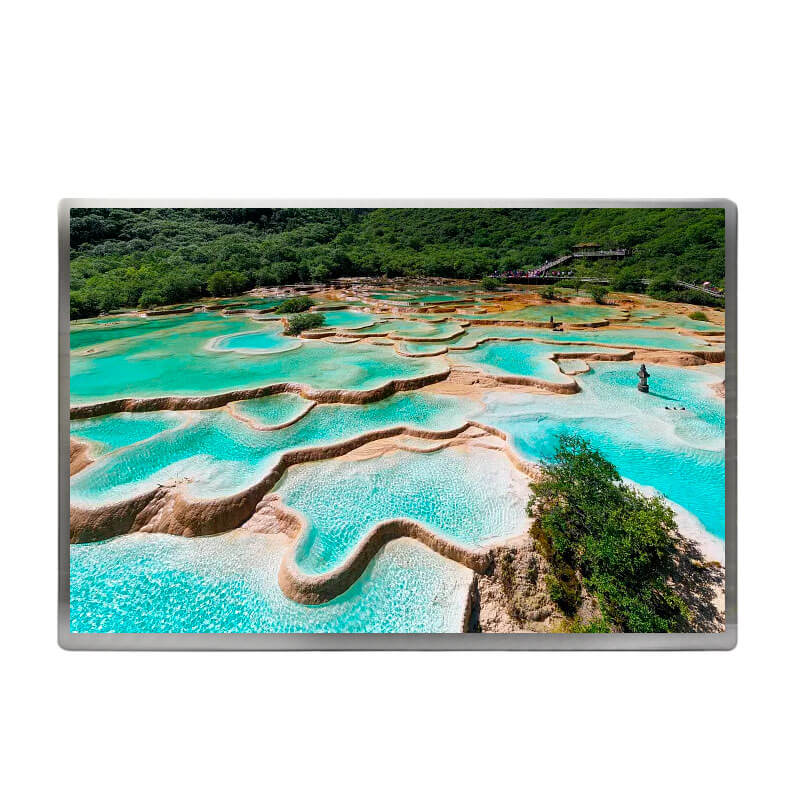

P130ZFA-BA1-13inch-TFT-2160x1440-EDP-2

LCD SPECIFICATION
Panel Size
13.0"
Panel Type
a-Si TFT-LCD, LCM
Pixel Number
2160(RGB)×1440, 199PPI
Configuration
RGB Vertical Stripe
Active Area(mm)
274.75(W)×183.17(H) mm
Outline(mm)
280.75(W)×196.82(H) mm
Bezel Area(mm)
-
Treatment
Glare (Haze 0%), Hard coating (3H)
Luminance
330 cd/m² (Typ.)
Contrast Ratio
1000:1 (Typ.) (TM)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
View Direction
Symmetry
Response Time
25/45 (Typ.)(Tr/Td)
Support Color
16.7M 99% sRGB
Backlight
9S6P WLED , Without Driver
Shape Style
Slim (PCBA Bent, T≤3.0mm)
Used for
Laptop
Frame Rate
60Hz
Touchscreen
Without
Signal Interface
eDP (4 Lanes) , eDP1.4 , 30 pins Connector
Input Voltage
3.3V (Typ.)
Environment
Operating Temp.: -10 ~ 50 °C ; Storage Temp.: -20 ~ 65 °C

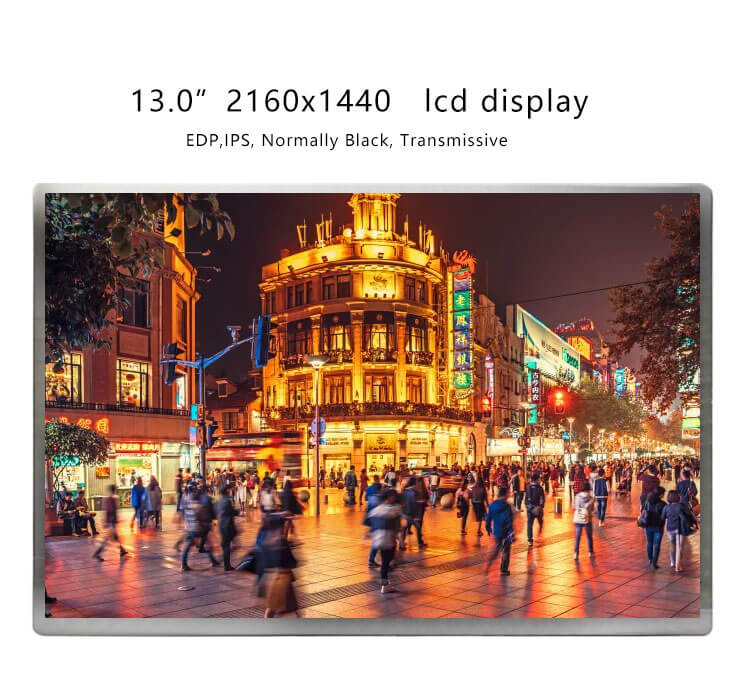

P130ZFA-BA1_01P130ZFA-BA1_02P130ZFA-BA1_03
