5 Inch OLED Display IPS 720x1280 High Resolution Amoled Display With Board For Medical Equipments

5 Inch AMOLED Display Overview

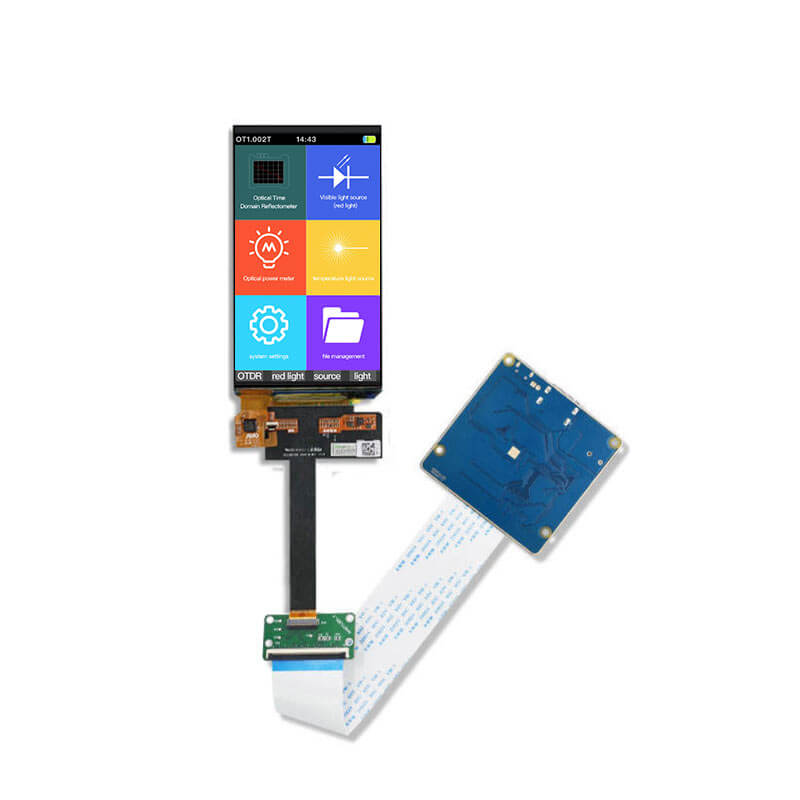

ET050HD06-Z-HDMI is a 5-inch AMOLED display module featuring a high resolution of 720 × 1280. It uses an AM-OLED panel with a MIPI interface (4 data lanes) and provides a slim outline of 65.92 × 118.64 × 1.15 mm with an active area of 61.92 × 110.08 mm. The display delivers 250 cd/m² brightness, wide 80° viewing angles in all directions, and is suitable for medical equipment applications.

Diagonal Size: 5 inch
Type: AM-OLED, OLED
Pixel Format: 720(RGB)x1280
Configuration: RGB Vertical Stripe

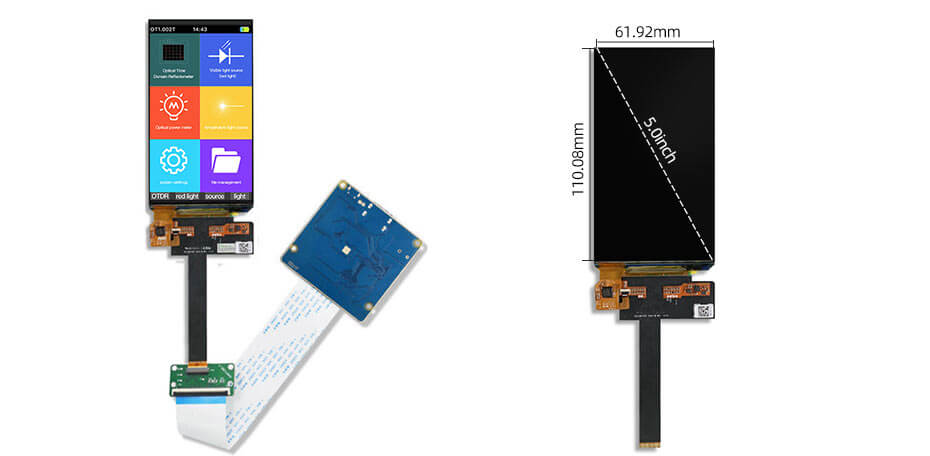

Active Area: 61.92x110.08mm
Outline Dim.: 65.92x118.64x1.15mm
Luminance: 250 cd/m² (Typ.)
Contrast Ratio :10000:1 (Min.) (TM)
View Direction: Symmetry
Response Time: 1.0 (Max.)
Viewing Angle: 80/80/80/80 (Min.)(CR≥1600)
Support Color: 16.7M 100% NTSC
Light Source: self
Designed For: Medical equipments.
Frame Rate: 60Hz

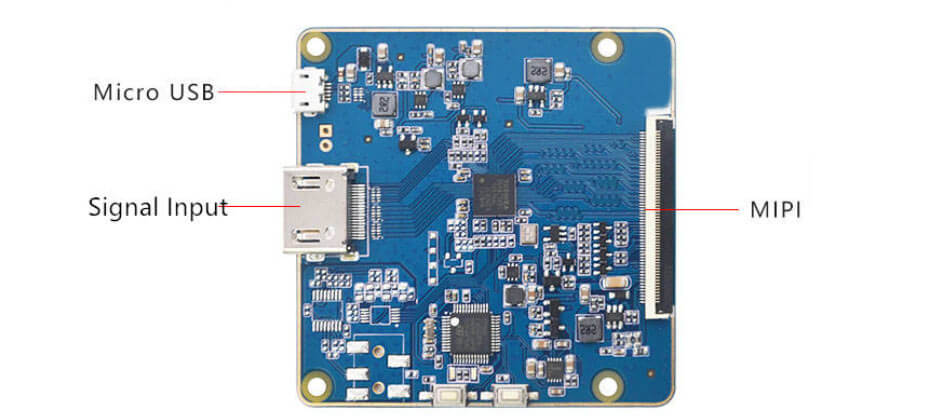

Interface Type: MIPI (4 data lanes) , 39 pins FPC
Power Supply: 1.8/3.1/3.7V (Typ.)(VDDI/VCI/VBAT)
Operating Temperature: -20 ~ 60 °C
Storage Temperature: -30 ~ 70 °C
