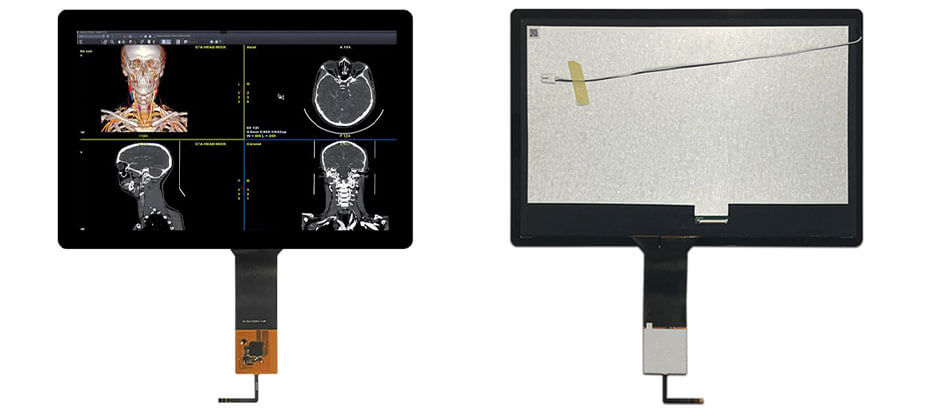

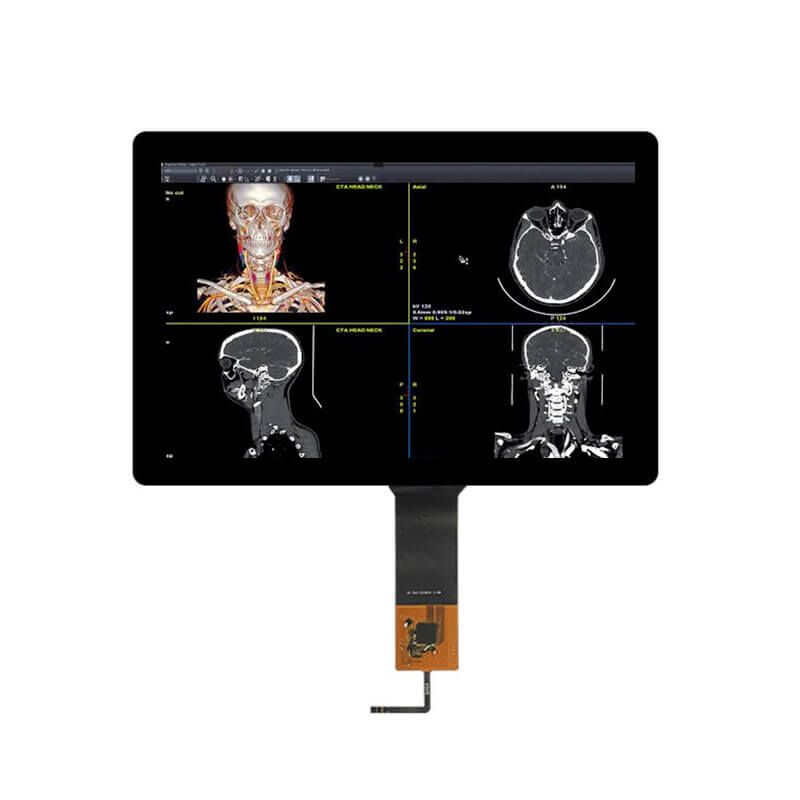

ET121HD01-TT is a 12.1 inch TFT LCD display module designed for healthcare and medical display solutions. ET121HD01-TT supports a resolution of 1280×800 with an aspect ratio of 16:10 (W), featuring an LVDS interface and a transmissive display mode. It features an active area of 261(W)×163(H) mm and an outline dimension of 293(W)×198(H) mm. ET121HD01-TT provides a display brightness of 750 cd/m² (Typ.) and a wide viewing angle of 85/85/85/85 (L/R/U/D), delivering clear and visible images for professional display applications. It supports an operating temperature range of -20~70°C and a storage temperature range of -30~80°C. With a capacitive touch panel, ET121HD01-TT combines high-brightness LCD performance with responsive touch functionality, making it suitable for healthcare equipment, medical devices, industrial instruments, and other professional display solutions.

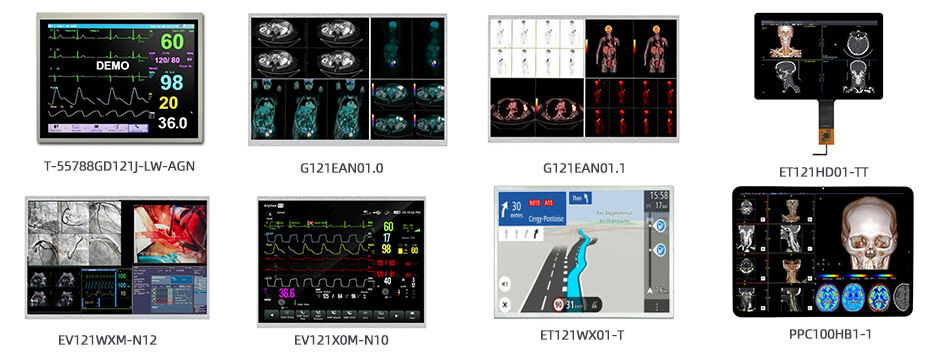

More 12.1 Inch Healthcare & Medical Display Solution For Reference
T-55788GD121J-LW-AGN (LCM, 800×600, LVDS, -30~80°C, 261.8×203.3mm)
ET121S0M-N14 (LCM, 800×600, LVDS, -20~70°C, 279×209mm)
G121EAN01.0 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
G121EAN01.1 (LCM, 1280×800, LVDS, -30~85°C, 278×184mm)
ET121HD01-TT (LCM, 1280×800, LVDS, -20~70°C, 293.66×198.66mm)
EV121WXM-N12 (LCM, 1280×800, LVDS, -20~70°C, 277.7×180.6mm)
EV121X0M-N10 (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
ET121WX01-T (LCM, 1024×768, LVDS, -20~70°C, 260.5×204mm)
PPC100HB1-1 (LCM, 3000×2120, MIPI, -20~60°C, 264.33×190.75mm)
High Image Quality
–Sharp, accurate images for medical diagnostics.
High Brightness
–Excellent visibility in various lighting conditions.
Wide Viewing Angle
–IPS technology ensures clear viewing from any angle.
24/7 Reliable Operation
–Stable performance for continuous medical use.
Wide Temperature Range
–Reliable in demanding healthcare environments.
PCAP Touch Support
–Smooth, accurate touch with glove compatibility.
Low Power Consumption
–Energy-efficient for portable medical devices.
Long-Term Supply
–Stable lifecycle for medical equipment projects.
Custom Design Support
–Brightness, touch, interface, and optical bonding customization.
OEM & ODM Service
–End-to-end display solutions for healthcare applications.
Medical Imaging Equipment
Ultrasound Systems; Patient Monitoring Systems; X-Ray Imaging Systems; Digital Radiography Systems; CT Scanners; MRI Systems; Endoscopy Systems; Medical Imaging Monitors; Portable Ultrasound Devices.
Patient Monitoring & Critical Care
Patient Monitors; Vital Signs Monitors; ECG / EKG Monitors; Blood Pressure Monitors; Pulse Oximeters; Capnography Monitors; Multi-Parameter Patient Monitors; Central Patient Monitoring Stations.
Diagnostic & Laboratory Equipment
Blood Analyzers; Hematology Analyzers; Biochemistry Analyzers; Immunoassay Analyzers; Urine Analyzers; Microscopy Systems; Laboratory Analyzers; Point-of-Care Testing Devices; Diagnostic Testing Equipment.
Surgical & Operating Room Equipment
Surgical Displays; Surgical Monitors; Endoscopic Systems; Laparoscopic Systems; Surgical Navigation Systems; Operating Room Displays; Anesthesia Machines; Electrosurgical Units; Surgical Robots.
Dental Equipment
Dental Treatment Units; Dental Imaging Systems; Dental X-Ray Systems; Intraoral Cameras; Dental CAD/CAM Systems; Dental Chairs; Dental Sterilization Equipment.
Emergency & Ambulance Equipment
Portable Patient Monitors; Defibrillators; Emergency Ventilators; Portable Ultrasound; Ambulance Monitoring Systems; Emergency Medical Devices; Portable Diagnostic Equipment.
Respiratory & Anesthesia Equipment
Ventilators; Respiratory Monitors; Anesthesia Machines; Oxygen Concentrators; CPAP / BiPAP Devices; Respiratory Therapy Equipment; Gas Monitoring Systems.
Infusion & Drug Delivery
Infusion Pumps; Syringe Pumps; Enteral Feeding Pumps; Drug Delivery Systems; IV Monitoring Systems.
Rehabilitation & Home Healthcare
Rehabilitation Equipment; Physiotherapy Equipment; Home Patient Monitoring; Home Healthcare Devices; Mobility Assistance Equipment; Smart Healthcare Devices; Remote Patient Monitoring Devices.
Ophthalmic Equipment
Ophthalmic Diagnostic Devices; Fundus Cameras; Optical Coherence Tomography (OCT) Systems; Slit Lamps; Autorefractors; Vision Screening Devices; Ophthalmic Surgical Systems.
Cardiology Equipment
ECG / EKG Devices; Holter Monitors; Cardiac Monitoring Systems; Ultrasound / Echocardiography Systems; Stress Test Systems; Defibrillators; Cardiac Diagnostic Equipment.
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
