VS035ZSM-NW0-69P0 BOE 3.5 Inch TFT LCD Display 1440x1600 MIPI LCD Module With Driver Board For Helmet Mounted Display VR AR Handheld Game Console

3.5 Inch LCD Display Overview

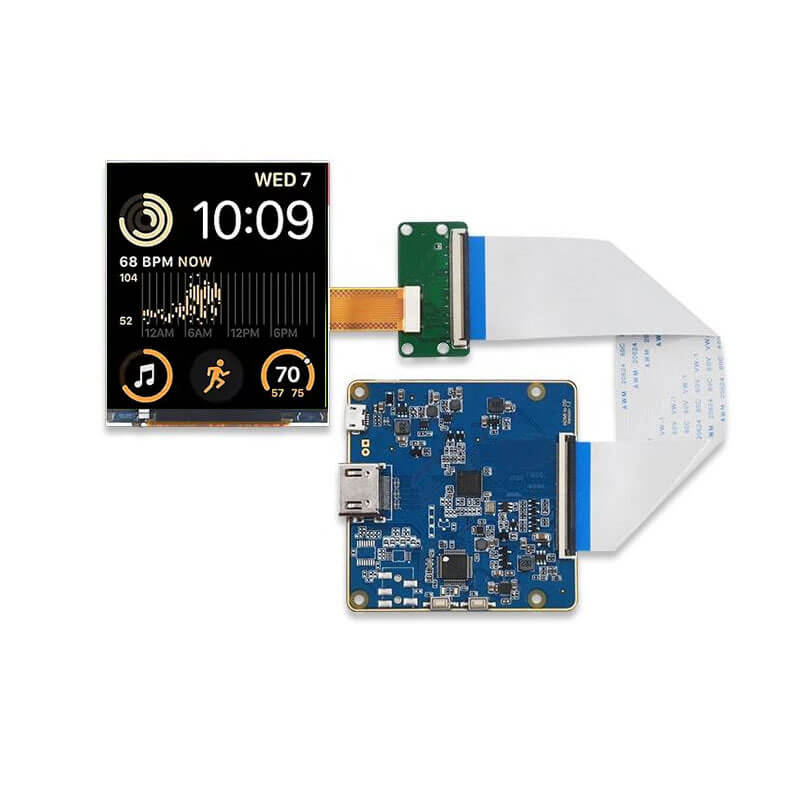

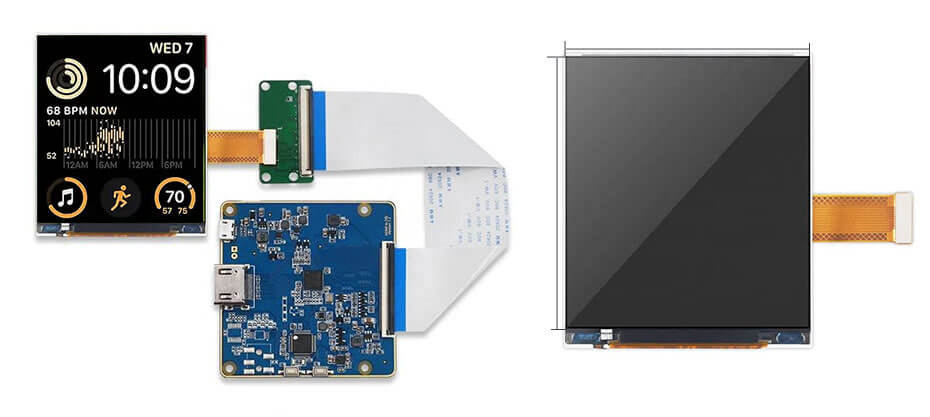

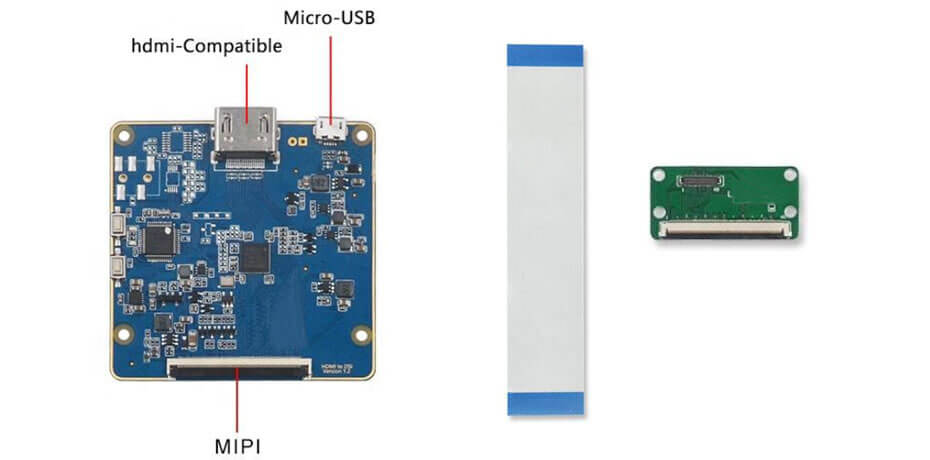

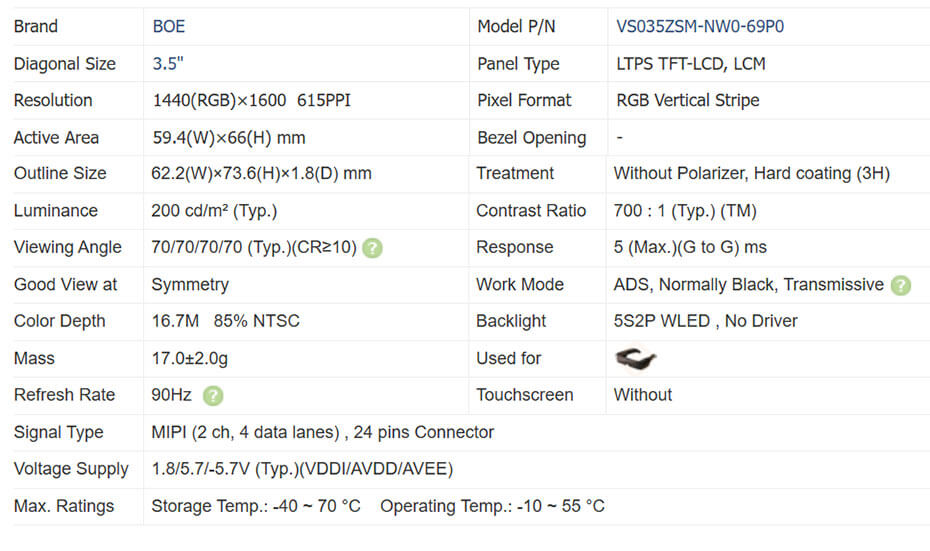

VS035ZSM-NW0-69P0 supports display 1440(RGB)×1600 with aspect ratio of 8:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 615 PPI. As for mechanical detail, it features active area of 59.4(W)×66(H) mm, outline size of 62.2(W)×73.6(H)×1.8(D) mm, with surface treament of Without Polarizer, Hard coating (3H), net weight of 17.0±2.0g. As a ADS, Normally Black, Transmissive LCM product, VS035ZSM-NW0-69P0 can provides 200 cd/m² display brightness 700:1 transimissive contrast ratio, 70/70/70/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. VS035ZSM-NW0-69P0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 24 pins Connector with power supply voltage of 1.8/5.7/-5.7V (Typ.)(VDDI/AVDD/AVEE). It's typical vertical frame rate (Fv) is 90Hz.

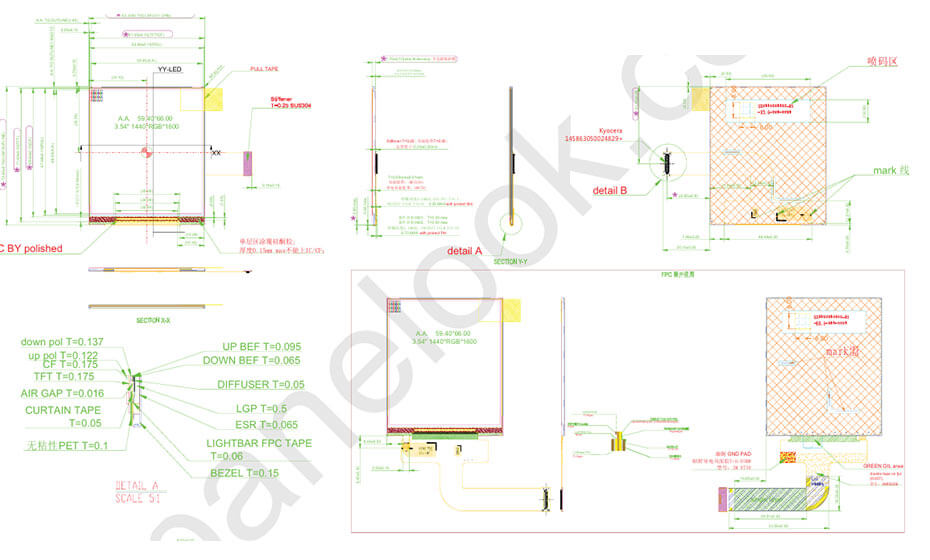

3.5 Inch LCD Display Drawing
