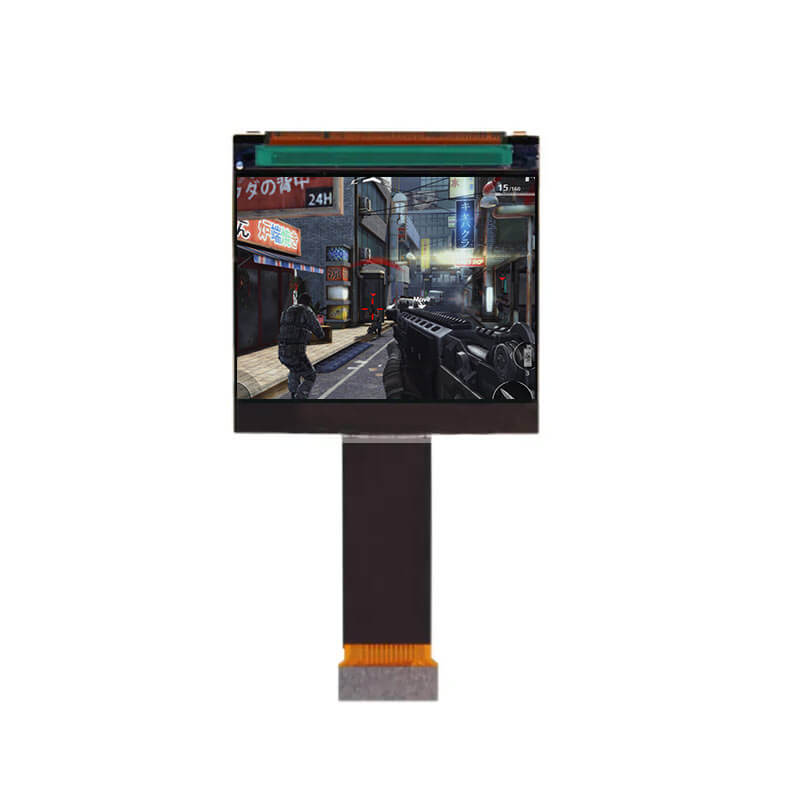

VS019U0M-NH0-DKP0 BOE 1.9 Inch TFT LCD Display 1600x1200 Ultra High Brightness 1000nits MIPI LCD Module With Driver Board For Beauty Equipment

1.9 Inch LCD Display Overview

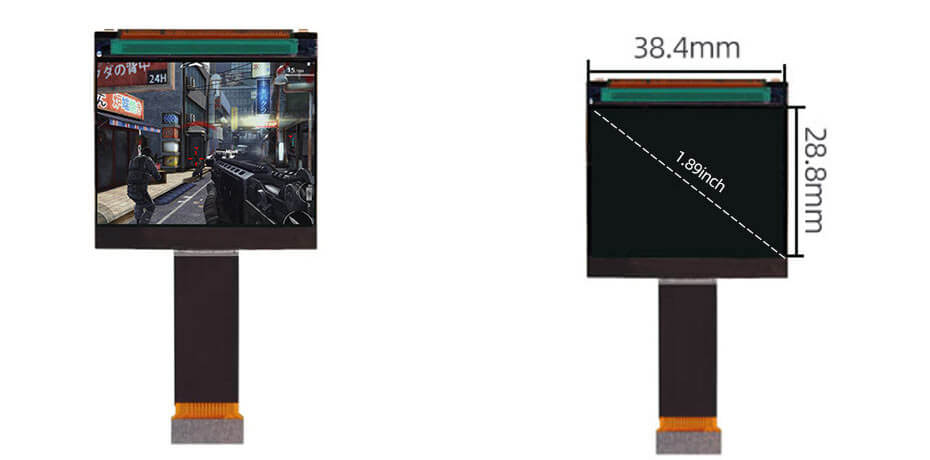

VS019U0M-NH0-DKP0 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe,it's pixel density is 1058 PPI. As for mechanical detail, it features active area of 38.4(W)×28.8(H) mm, outline size of 41.2(W)×40.6(H)×1.82(D) mm, with surface treament of Hard coating (3H), net weight of 7.0±1.0g. As a ADS, Normally Black, Transmissive LCM product, VS019U0M-NH0-DKP0 can provides 1000 cd/m² display brightness 550:1 transimissive contrast ratio, 25/25/35/35 (Typ.)(CR≥100) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5.5 (Max.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 71% (NTSC). This product adopted 4S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. VS019U0M-NH0-DKP0 utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 50 pins Connector with power supply voltage of 1.8/6.0/-6.0V (Typ.)(VDD/AVDD/AVEE). It's typical vertical frame rate (Fv) is 120Hz.
