0.48"-5" Touch Screen (5.6")

5.6 Inch High-definition Capacitive Screen G+G GT911 Touch Display For Industrial Control Industrial Medical

Part No.:ET056CTP01
Size:5.6″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:126.5x100mm
Active Area:125.5x95mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10~60°C / -20~70°C
Touch:yes

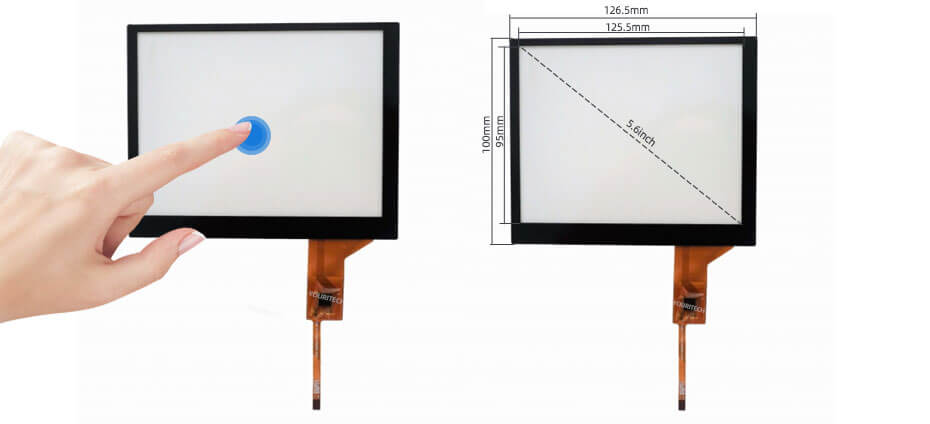

5.6 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: I2C
Display Area: 125.5x95 mm
Outline Dim.: 126.5x100 mm
Operation Temperature: -10 ~ 60 °C
Storage Temperature: -20 ~ 70°C

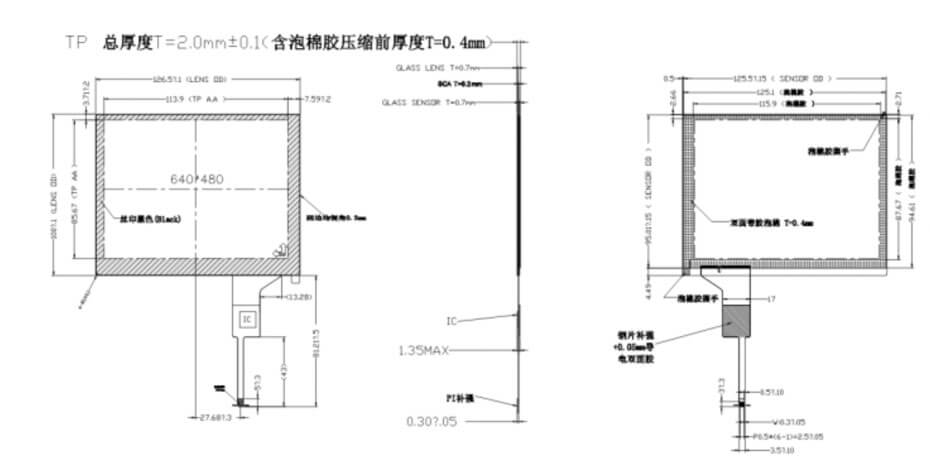

5.6 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
