0.48"-5" Touch Screen (5.7")

5.7 Inch Capacitive Screen G+G 4:3 USB Multi-touch Industrial Capacitive Screen

Part No.:ET057CTP01
Size:5.7″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:125.7x101.25mm
Active Area:117.8x89.16mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

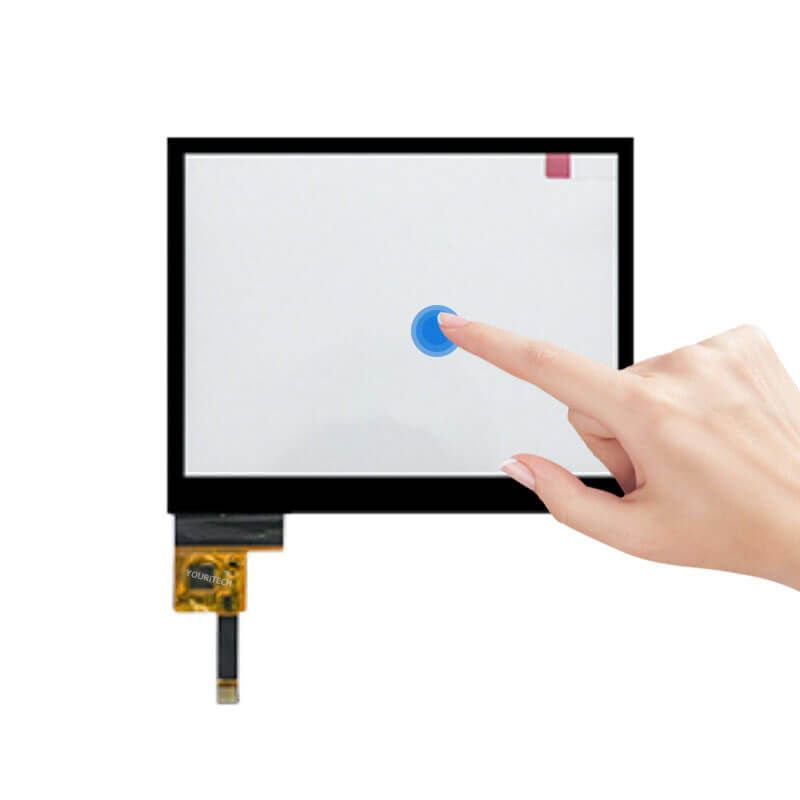

5.7 Inch Capacitive Touch Screen
Product structure: Glass/Glass
Touch Points: Multi-touch
Interface Type: I2C

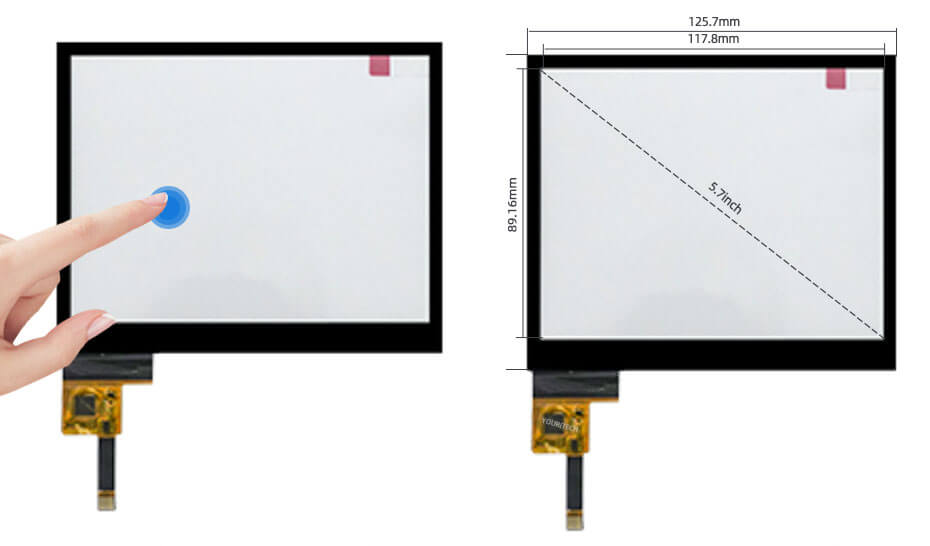

Display Area: 117.8x89.16 mm
Outline Dim.: 125.7x101.25 mm
Operation Temperature: -20 ~ 70°C
Storage Temperature: -30 ~ 80°C

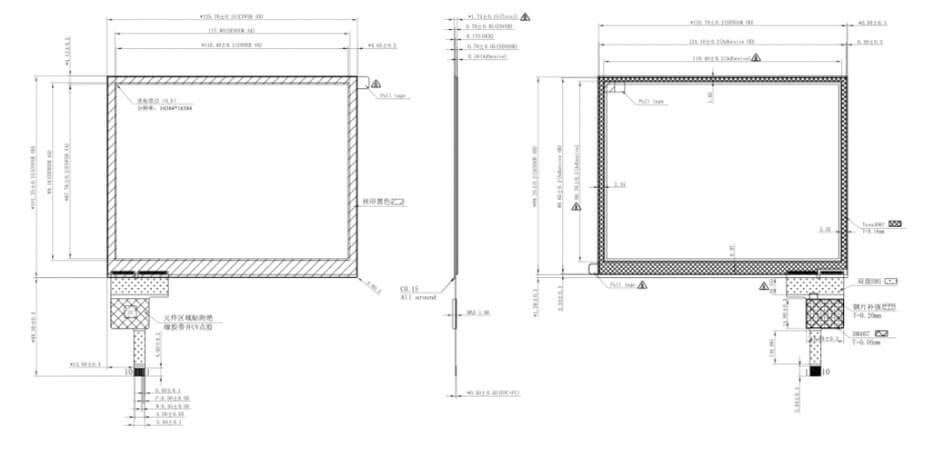

5.7 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING
