23.1 Inch Stretched Bar Display Overview

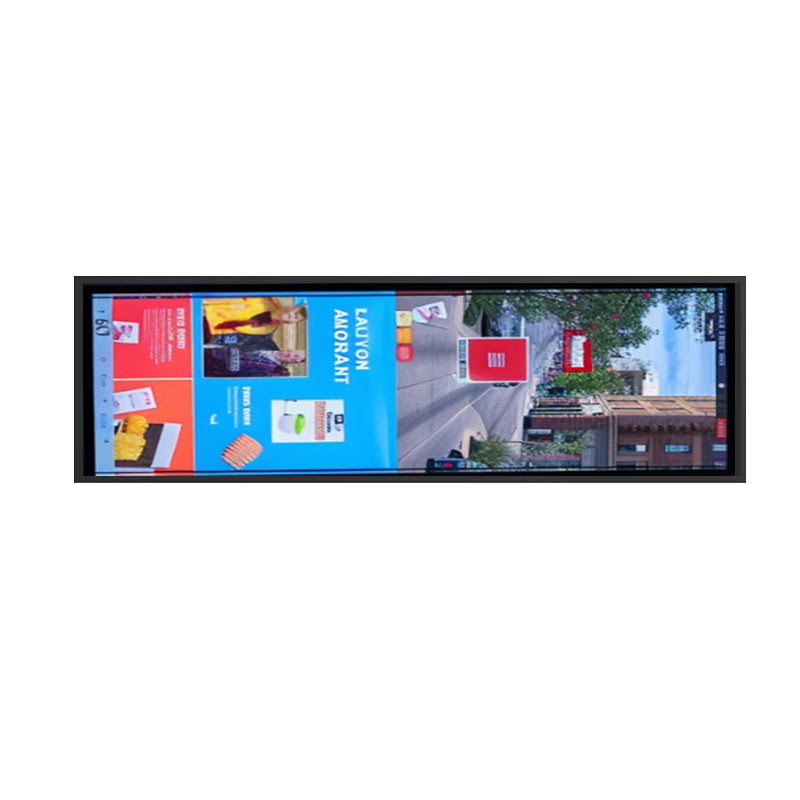

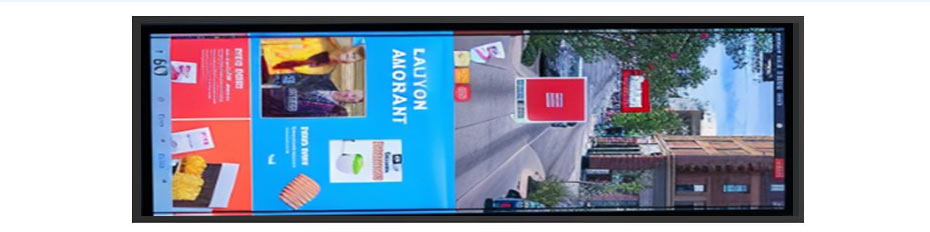

ET231BA01-YF is a 23.1-inch diagonal stretched bar TFT-LCD display featuring a transmissive IPS panel. It supports a 1920 × 158 resolution, providing high-definition content in a wide-format, narrow-height form factor. The display has an active area of 585.56 (W) × 48.18 (H) mm and an outline dimension of 608 (W) × 70 (H) mm, suitable for digital signage, information bars, and industrial applications. ET231BA01-YF uses an LVDS interface and delivers a typical brightness of 700 cd/m², ensuring clear visibility even in bright environments. With wide viewing angles of 89° in all directions (L/R/U/D), it maintains consistent color and contrast from multiple perspectives. The module operates within 0 to 50°C and can be stored between –20 to 60°C, and it supports touch functionality for interactive applications.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
