0.48"-5" Touch Screen (5.5")

5.5 Inch Capacitive Touch Screen USB Multi-touch Screen For Game Console

Part No.:ET055CTP02
Size:5.5″ inch
Resolution:Optional
Panel Interface:I2C
Display mode:PCAP
Outline Dimension:121.96x69.05mm
Active Area:121.96x69.05mm
Viewing Angle L/R/U/D:Full view
Brightness（cd/m2）:Optional
Operation / Storage Temp:-10-60℃ / -20-70℃
Touch:yes

5.5 Inch Capacitive Touch Screen
Product structure: Glass+ITO Glass
Surface hardness: Hard coating (6H)
Touch Points: Multi-touch
Interface Type: USB
Display Area: 121.96x69.05mm
Outline Dim.:121.96x69.05mm
Operation Temperature: -10 ~ 60°C
Storage Temperature: -20 ~ 70°C

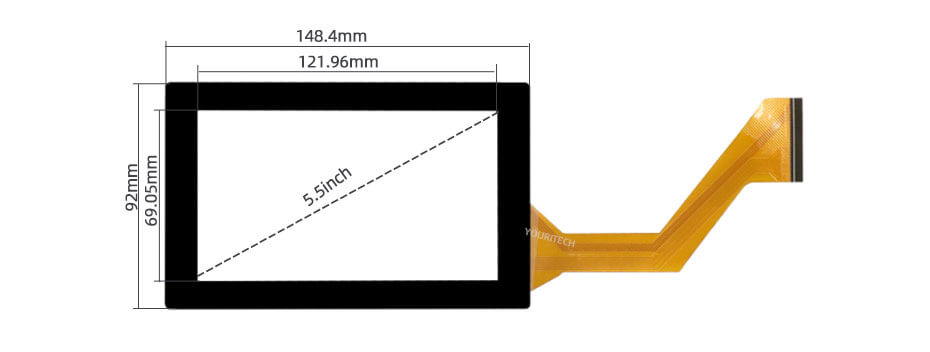

5.5 Inch Capacitive Touch Screen Drawing

The touch screens can be matched and integrated by all kinds of display panels

SPECIALTREATMENT
SUPPORT AG / AR / AF GLASS(ANTI-GLARE, ANT-REFLECTIVE, ANT-FINGERPRINT)

PRODUCTION AND MANUFACTURING

APPLICATIONS
