5.5 Inch Stretched Bar Display Overview

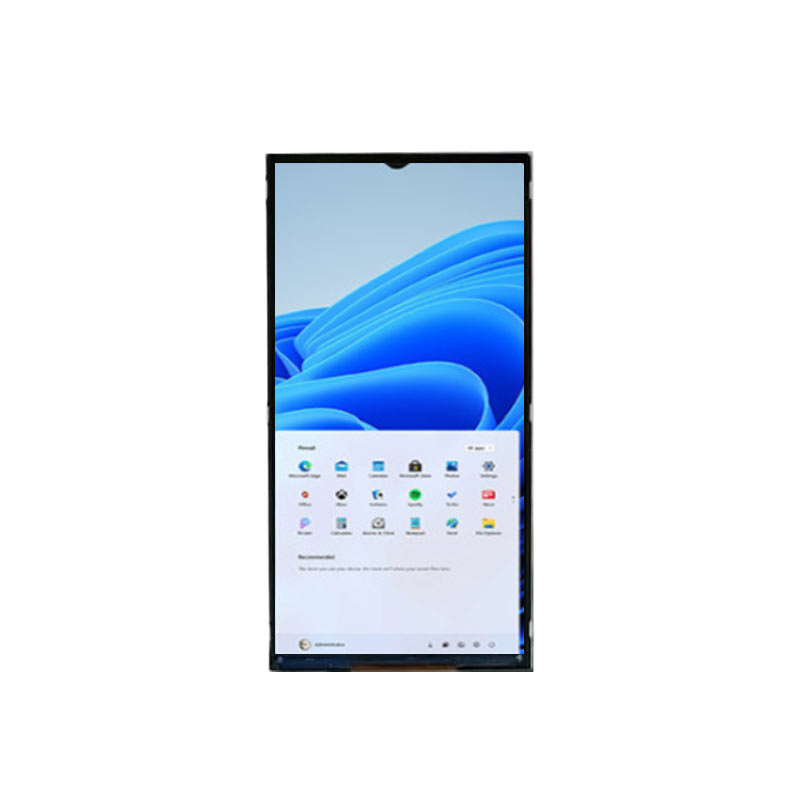

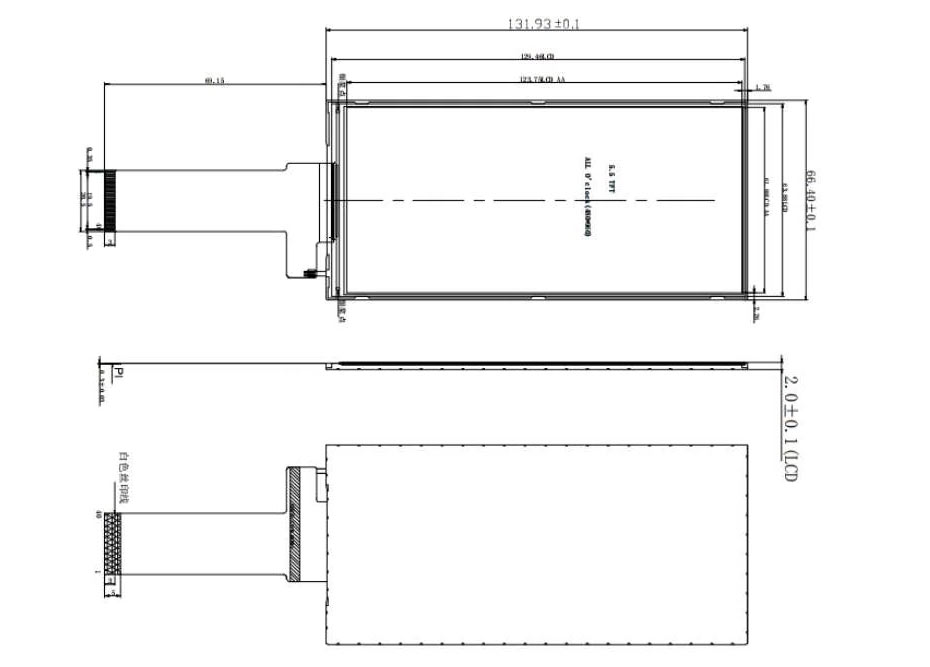

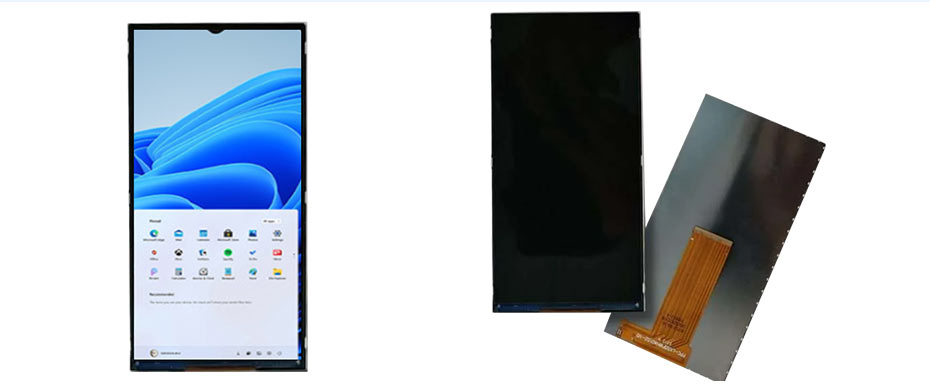

ET055BA01-TL is a 5.5-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 480 × 960 pixels and utilizes a MIPI interface for high-speed signal transmission. The display provides an active area of 61.8768 (W) × 123.754 (H) mm, housed within a slim outline dimension of 66.4 (W) × 131.93 (H) mm, suitable for elongated and vertical display designs. With wide viewing angles of 80° in all directions (L/R/U/D), it ensures stable and consistent image quality. The typical brightness reaches 700 cd/m², offering excellent visibility in bright ambient-light environments. ET055BA01-TL is designed for wide-temperature operation, supporting an operating temperature range of −20 to 70°C and a storage temperature range of −30 to 80°C. This model is supplied without touch functionality, making it ideal for high-brightness stretched bar display applications such as industrial terminals, smart devices, and embedded systems.
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
