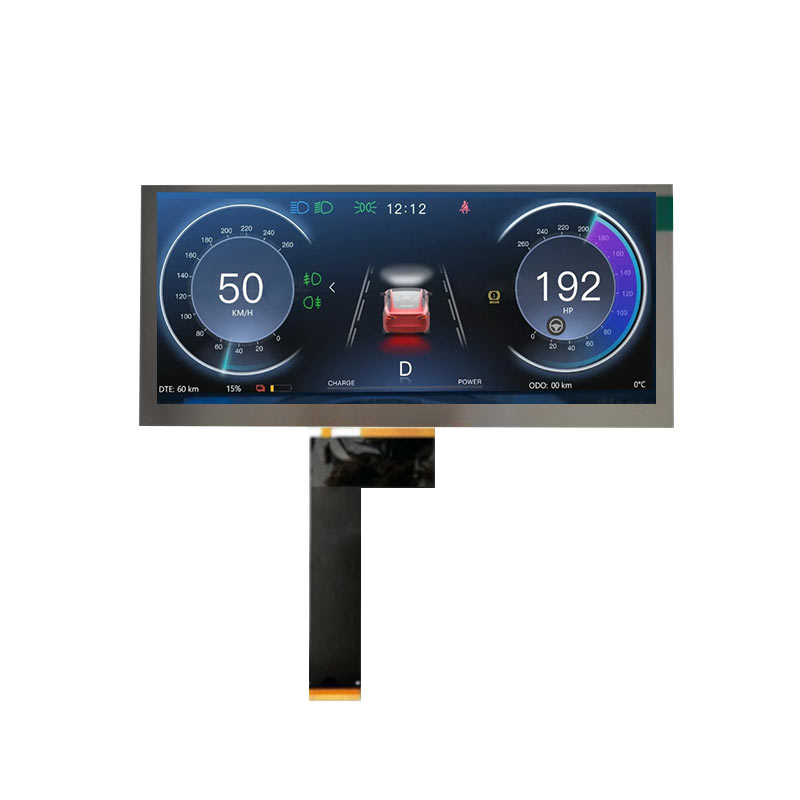

4.6 Inch Stretched Bar Display Overview

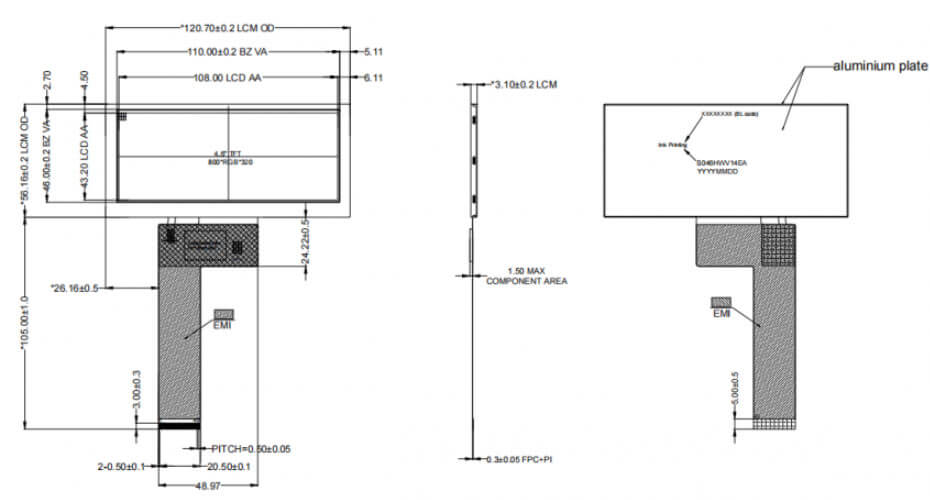

ET046BA01-S is a 4.6-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 800 × 320 pixels and adopts a TTL interface for signal transmission. The display offers an active area of 108 (W) × 43.2 (H) mm within a compact outline dimension of 120.7 (W) × 56.16 (H) mm, making it suitable for wide, horizontal elongated installations. With viewing angles of 80° in all directions (L/R/U/D), it ensures stable and consistent image quality. The typical brightness reaches 850 cd/m², providing excellent visibility in bright and high-ambient-light environments. ET046BA01-S is designed for reliable operation across a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is supplied without touch functionality, making it ideal for high-brightness stretched bar display applications such as industrial equipment, automotive auxiliary displays, and embedded systems.
More 4.6 Inch Bar Displays For Reference
ET046BA20-T (320×960, MIPI, IPS, 500nits, -30~85°C, 39.47x116.95mm)
ET046BA01-TT (320×960, TTL, IPS, 500nits, -20~70°C, 50.19x126.1mm)
ET046BA01-S (800x320, TTL, IPS, 850nits, -20~70°C, 120.7x56.16mm)
