H381DLN01.2 AUO 3.8 Inch AMOLED Display 1080x1200 MIPI OLED Display

H381DLN01.2 Overview

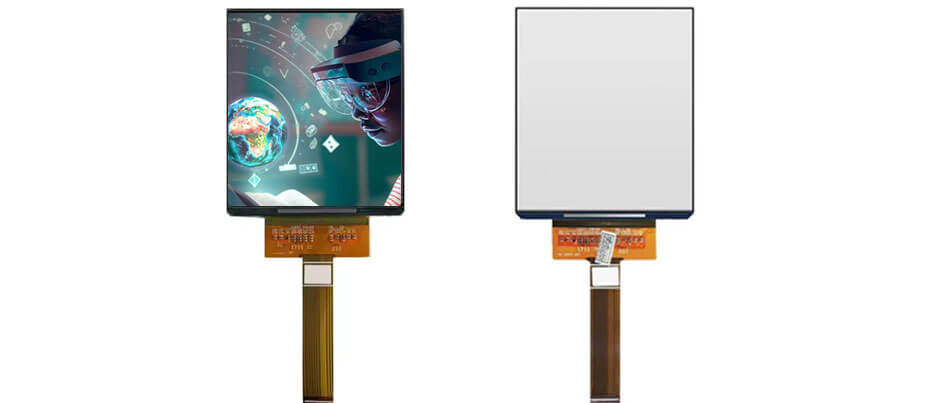

H381DLN01.2  is a 3.8 inch diagonal AM-OLED display screen, it self emiting, without touch screen. H381DLN01.2 supports display 1080(RGB)×1200 with aspect ratio of 8:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 423 PPI. As for mechanical detail, it features active area of 64.8(W)×72(H) mm, outline size of 67.6(W)×78.95(H)×1.29(D) mm. H381DLN01.2 can provides 100 cd/m² display brightness 10000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥480) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (NTSC). This product emiting itself . H381DLN01.2 utilizes MIPI (4 data lanes) as it's signal inputting systerm, which connected by 39 pins FPC with power supply voltage of 1.8/4.6/5.8/-2.9V (Typ.)(IOVCC/OVDD/AVDD/OVSS). It's typical vertical frame rate (Fv) is 90Hz.

H381DLN01.2 Features

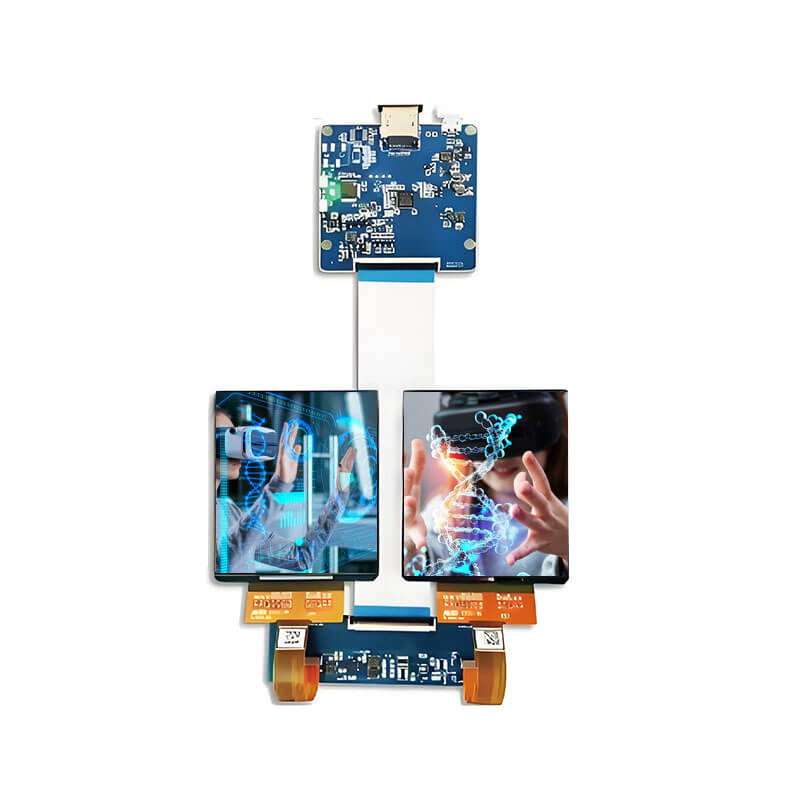

3.81 Inch AMOLED 1080x1200 VR AR MR Display
Model:H381DLN01.2
1)Panel Type: AM-OLED, OLED

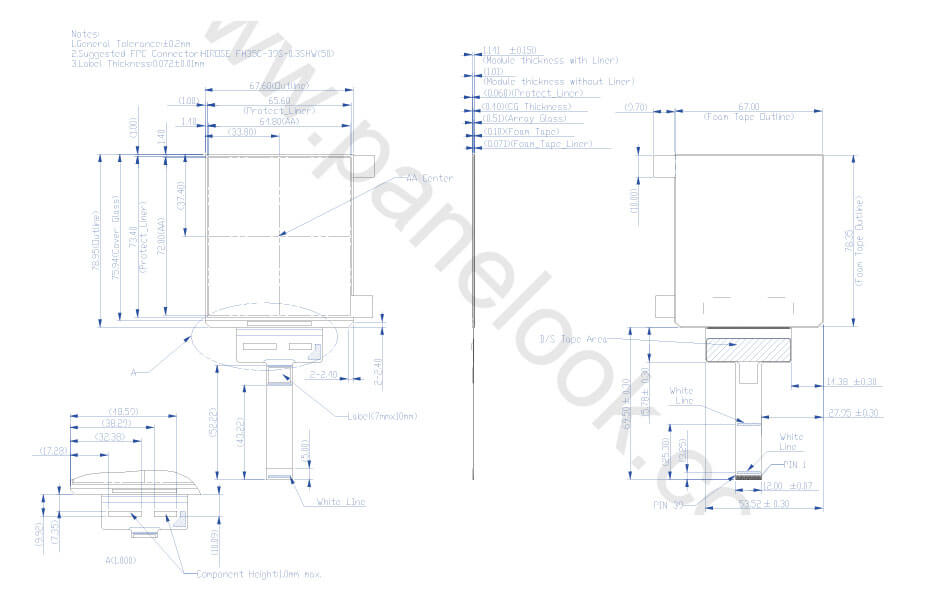

2)Active Area: 64.8(W)x72(H)mm
3)Brightness:100 cd/m²
4)Contrast Ratio: 10000:1(Min.)(TM)
5)Display Colors:16.7M 100%NTSC
6) Driver lC: CoG Built-in RM69071
7)Size: 3.81 inch
8)Resolution:1080x1200
9)Interface: MIPl (4 data lanes) ,39 pins FPC
A)Operating Temp.:-20~70°C
B)Storage Temp.:-40~80°C

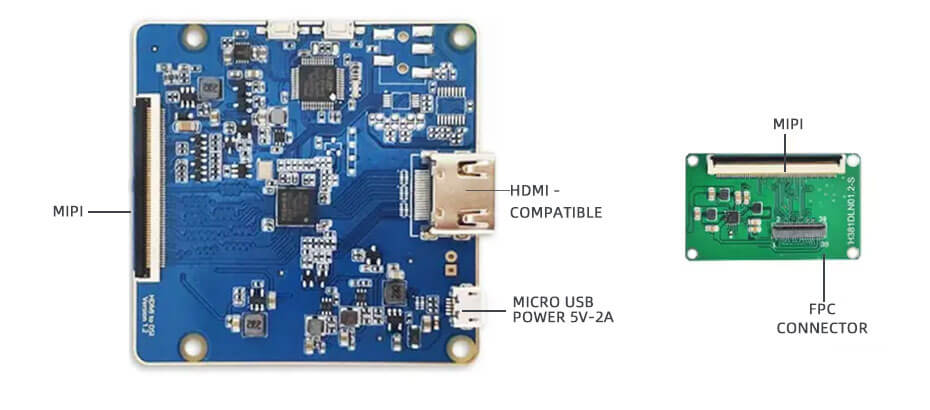

Onboard Resources

Display Module Customization

- Optical Bonding
   lmprove screen readability outdoors and strength of your display with optical bonding.
- Coverlens Design
   From shape, size glass materialand thickness to hidden til lit icons and printing, make your product stand out.
- Touch and Firmwar
   Optical touch lCs and firmware tuning for flawless performance including gloved touch and water rejection.
- Glass Coatings & Filters
   Optimum performance using films and filters incuding anti-reflective,anti-glare or protective coatings.
- Backlight Enhancement
Adapting display brightness to suitthe application requirements.
