4.6 Inch Stretched Bar Display Overview

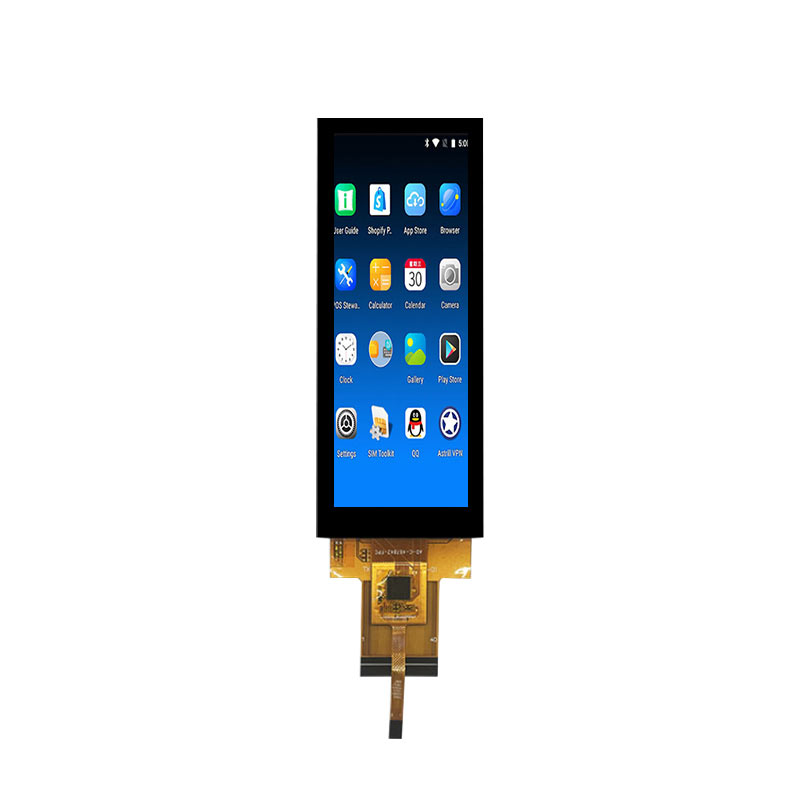

ET046BA01-TT is a 4.6-inch stretched bar TFT LCD display featuring an IPS panel with transmissive display mode. It supports a resolution of 320 × 960 pixels and adopts a TTL interface for signal transmission. The display provides an active area of 36.77 (W) × 110.3 (H) mm, housed in an outline dimension of 50.19 (W) × 126.1 (H) mm, suitable for elongated and vertically oriented designs. With wide viewing angles of 80° in all directions (L/R/U/D), it delivers stable image performance from different viewing positions. The typical brightness reaches 500 cd/m², ensuring good readability in bright environments. ET046BA01-TT is designed for reliable operation over a wide temperature range, supporting −20 to 70°C operating temperature and −30 to 80°C storage temperature. This model is offered without touch functionality, making it well suited for high-brightness stretched bar display applications in industrial control, instrumentation, and embedded systems.
More 4.6 Inch Bar Displays For Reference
ET046BA20-T (320×960, MIPI, IPS, 500nits, -30~85°C, 39.47x116.95mm)
ET046BA01-TT (320×960, TTL, IPS, 500nits, -20~70°C, 50.19x126.1mm)
ET046BA01-S (800x320, TTL, IPS, 850nits, -20~70°C, 120.7x56.16mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
