0.48"-5" LCD Display (3.9")

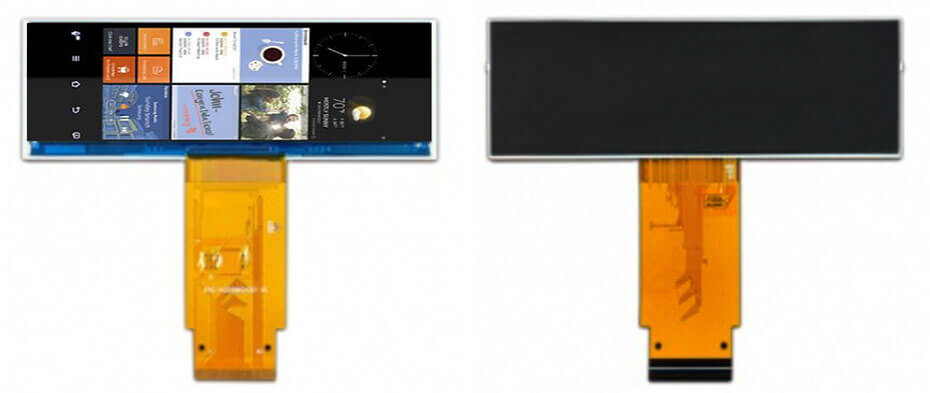

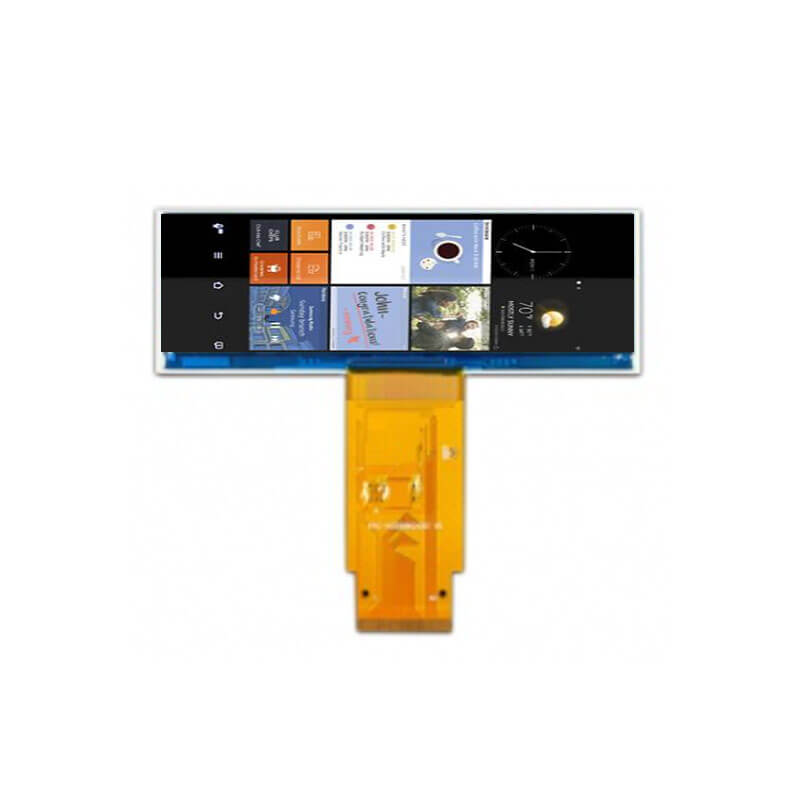

3.9 Inch Wide Temperature LCD Display 480×128 TTL -30°C to 85°C High Brightness 800nits TFT LCD Display

  • Part No.:ET039BA01-H
  • Size:3.9″ inch
  • Resolution:480x128
  • Panel Interface:TTL
  • Display mode:Transmissive
  • Outline Dimension:103.2x34.85mm
  • Active Area:95.04x25.34mm
  • Viewing Angle L/R/U/D:85/85/85/85
  • Brightness（cd/m2）:800(Typ.)
  • Operation / Storage Temp:-30~85°C / -30~85°C
  • Touch:no
Get a quote


3.9 Inch Wide Temperature LCD Display Overview
3.9 Inch Wide Temperature LCD Display 480×128 TTL -30°C to 85°C High Brightness 800nits TFT LCD Display.

More 3.9 Inch Wide Temperature Displays For Reference
ET039BA01-H (LCD, 480×128, TTL, IPS, 800nits, -30~85°C, 103.2×34.85mm)
ET040HD20-K (LCD, 720×720, MIPI, IPS, 400nits, -30~80°C, 74.33×78.38mm)
ET039SX01-HG (OLCD, 1080×1240, MIPI, IPS, 500nits, -40~70°C, 69.3×93.1mm, On-Cell)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
