3.9 Inch Wide Temperature LCD Display Overview

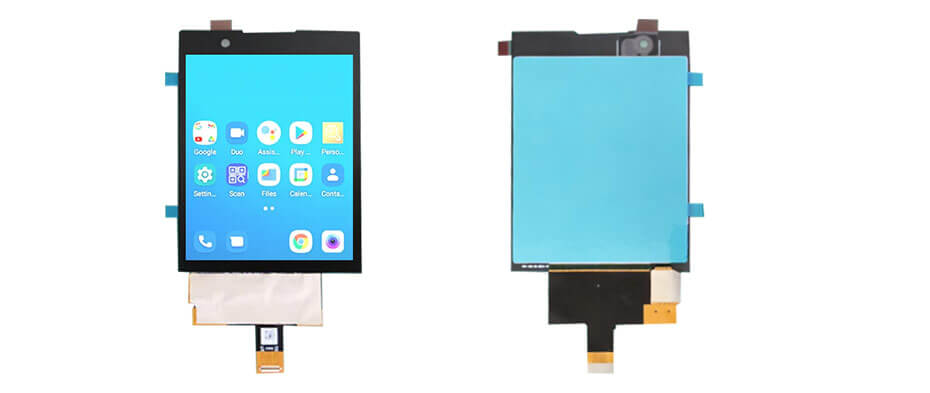

ET039SX01-HG is a 3.9-inch diagonal AM-OLED display module, self-emitting and featuring high-contrast image performance. ET039SX01-HG supports a resolution of 1080×1240 with a high pixel density, delivering sharp and vivid visuals. It adopts a MIPI interface for high-speed data transmission, with pixels arranged for stable and reliable display output. The module features an active area of 65.448(W) × 75.144(H) mm and an outline size of 69.3(W) × 93.1(H) mm. ET039SX01-HG provides a brightness of 500 cd/m² and supports wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature environments, it operates from -40°C to 70°C with storage support from -50°C to 80°C, and it is integrated with an on-cell touch panel for touch interaction functionality.
More 3.9 Inch Wide Temperature Displays For Reference
ET039BA01-H (LCD, 480×128, TTL, IPS, 800nits, -30~85°C, 103.2×34.85mm)
ET040HD20-K (LCD, 720×720, MIPI, IPS, 400nits, -30~80°C, 74.33×78.38mm)
ET039SX01-HG (OLCD, 1080×1240, MIPI, IPS, 500nits, -40~70°C, 69.3×93.1mm, On-Cell)
Wide Temperature Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
