3.5 Inch Wide Temperature LCD Display 640×960 MIPI -30°C to 70°C TFT LCD Display With Capacitive Touch

3.5 Inch Wide Temperature LCD Display Overview

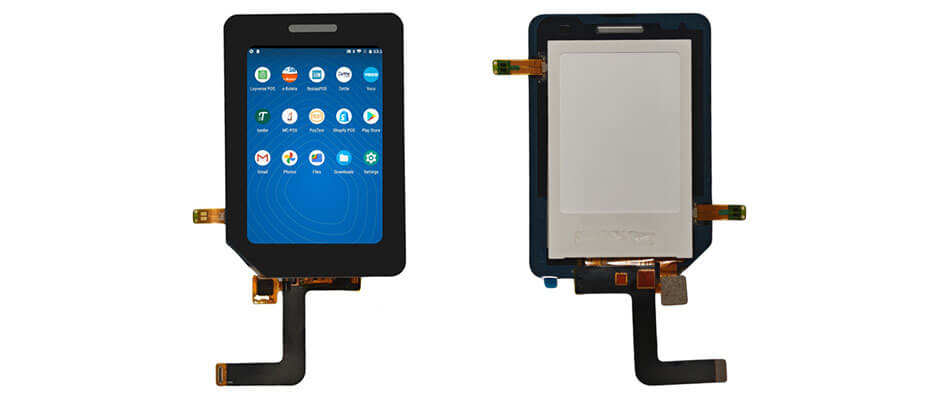

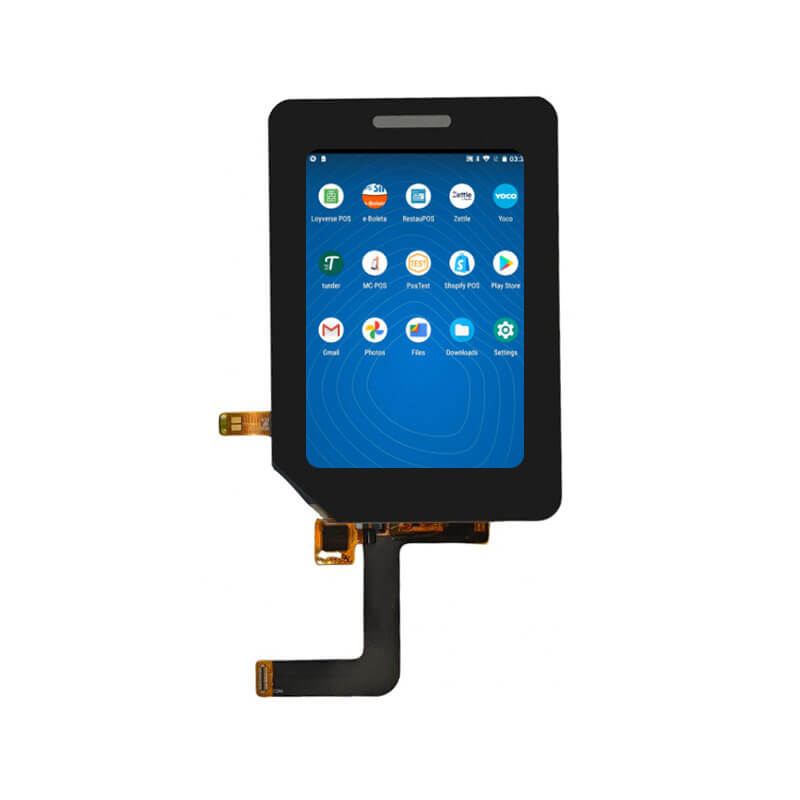

ET035QH01-ZT is a 3.5-inch diagonal TFT-LCD display module, featuring a transmissive display mode. ET035QH01-ZT supports a resolution of 640×960, delivering clear and vivid image performance. It adopts a MIPI interface for high-speed data transmission, with pixels arranged to ensure stable and reliable visual output. The module features an active area of 49.92(W) × 74.88(H) mm and an outline size of 69.7(W) × 101.96(H) mm. ET035QH01-ZT provides a typical brightness of 470 cd/m² and supports wide viewing angles of 85° in all directions (L/R/U/D). Designed for wide temperature environments, it operates from -30°C to 70°C with storage support up to -30°C to 80°C, and it is integrated with a capacitive touch panel for touch interaction functionality.

More 3.5 Inch Wide Temperature Displays For Reference
ET035WT01-TS (LCD, 240×320 , CPU, IPS, 900nits, -30~80°C, 94×94mm)
ET035WT01-GM (LCD, 640×480 , MIPI, IPS, 500nits, -30~85°C, 74.5×62.4mm)
ET035QV01-R (LCD, 320×240, TTL, IPS, 800nits, -30~80°C, 76.9×63.9mm)
ET035HV20-K (LCD, 320×480, CPU/RGB/SPI, IPS, 800nits, -30~85°C, 55.5×84.96mm)
ET035HV25-KT (LCD, 320×480, CPU/RGB/SPI, IPS, 720nits, -30~85°C, 61.9×96.04mm, CTP)
ET035HV25-KRT (LCD, 320×480, CPU/RGB/SPI, IPS, 700nits, -30~85°C, 55.5×84.86mm, 4w-RTP)
ET035HV01-Z (LCD, 320×480, MIPI, IPS, 340nits, -30~70°C, 54.76×83.29mm)
ET035FW01-XH (LCD, 480×854, MIPI, IPS, 320nits, -30~70°C, 47.8×86.36mm)
ET035CIR01 (LCD, 800×640, TTL, IPS, 1000nits, -30~85°C, 97.6×83.79mm)
ET035QH01-ZT (LCD, 640×960, MIPI, IPS, 470nits, -30~70°C, 69.7×101.96mm, CTP)

Wide Temperature Displays Technology

YOURITECH. Comprehensive Manufacturing of  Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Youritech Production and Manufacturing
