3.7 Inch Stretched Bar Display Overview

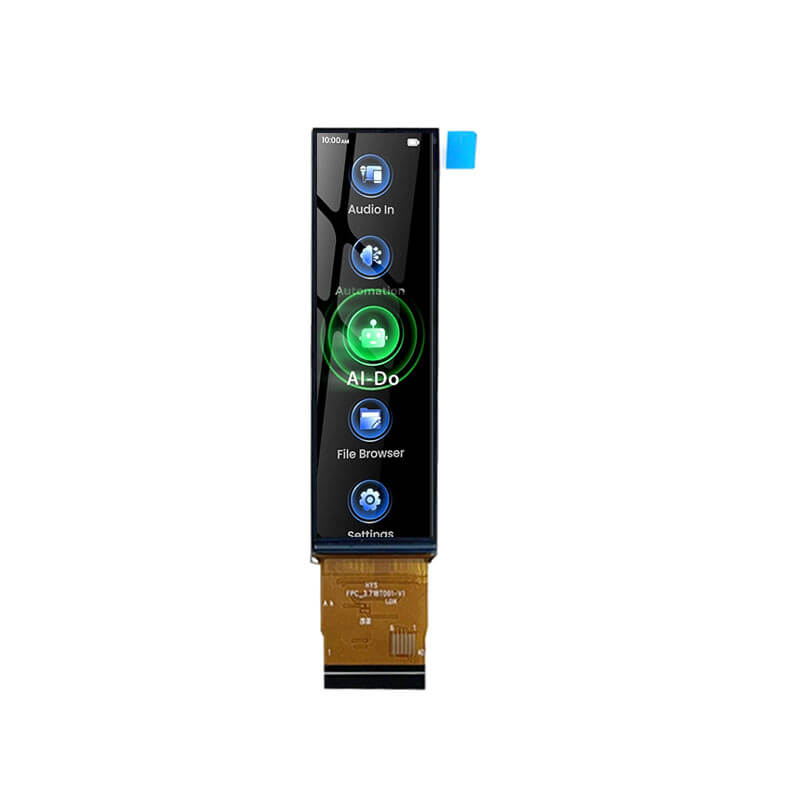

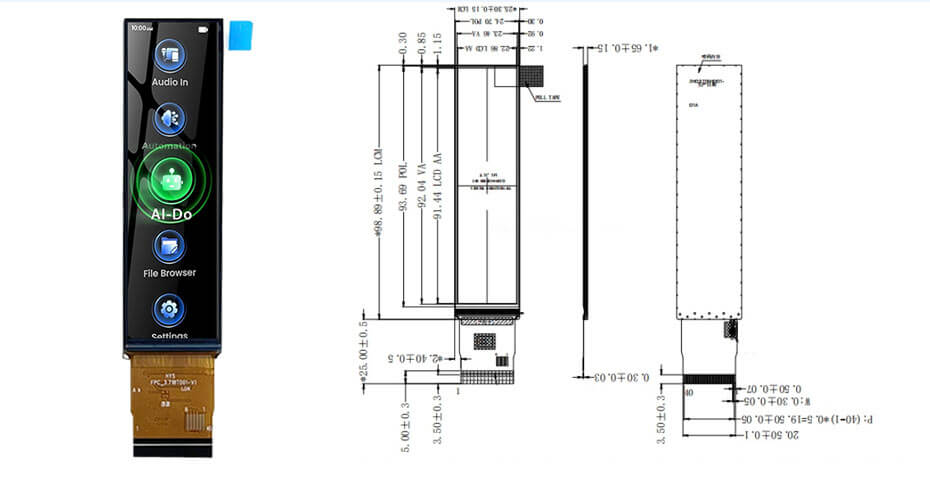

ET037BA01-Z is a 3.71-inch stretched bar TFT LCD display with a resolution of 240×960, featuring an IPS panel and transmissive display mode. It adopts a TTL interface and provides an active area of 22.86 × 91.44 mm within an outline dimension of 25.3 × 98.89 mm. The display delivers a typical brightness of 350 cd/m², wide 85° viewing angles in all directions, stable performance over an operating temperature range of −20 to 70 °C (storage −30 to 80 °C), and does not support touch functionality.
More 3.7 Inch Bar Displays For Reference
ET037VG06-T (240×960 , MIPI, IPS, 350nits, -20~70°C, 28.989×92.692mm)
ET037BA01-Z (240×960 , TTL, IPS, 350nits, -20~70°C, 25.3×98.89mm)
