3.7 Inch Stretched Bar Display Overview

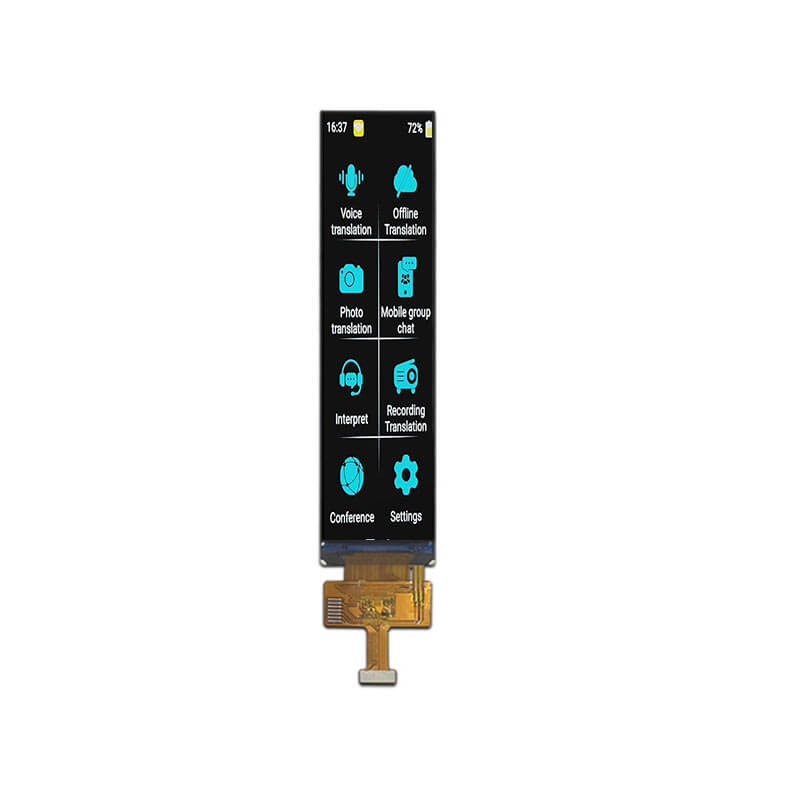

ET037VG06-T is a 3.7-inch stretched bar TFT LCD display with a resolution of 240×960, featuring an IPS panel and transmissive display mode. It uses a MIPI interface and offers an active area of 22.86 × 91.44 mm within an outline dimension of 25.3 × 98.89 mm. The display provides a typical brightness of 350 cd/m², wide 80° viewing angles in all directions, and reliable operation over a temperature range of −20 to 70 °C (storage −30 to 80 °C). Touch functionality is not included.
More 3.7 Inch Bar Displays For Reference

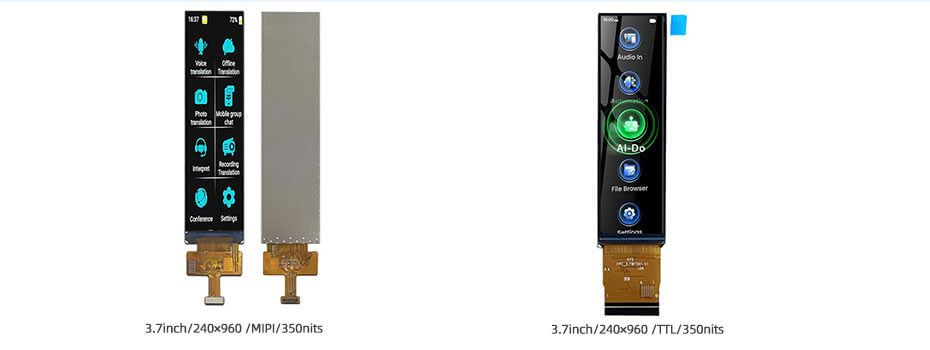

ET037VG06-T (240×960 , MIPI, IPS, 350nits, -20~70°C, 28.989×92.692mm)
ET037BA01-Z (240×960 , TTL, IPS, 350nits, -20~70°C, 25.3×98.89mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
