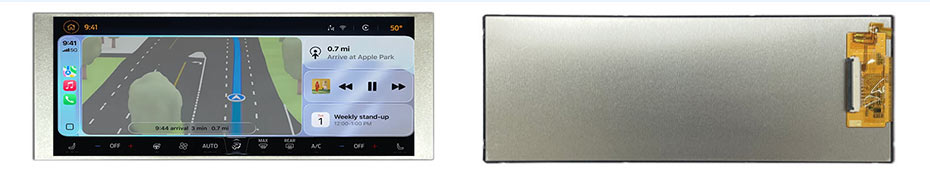

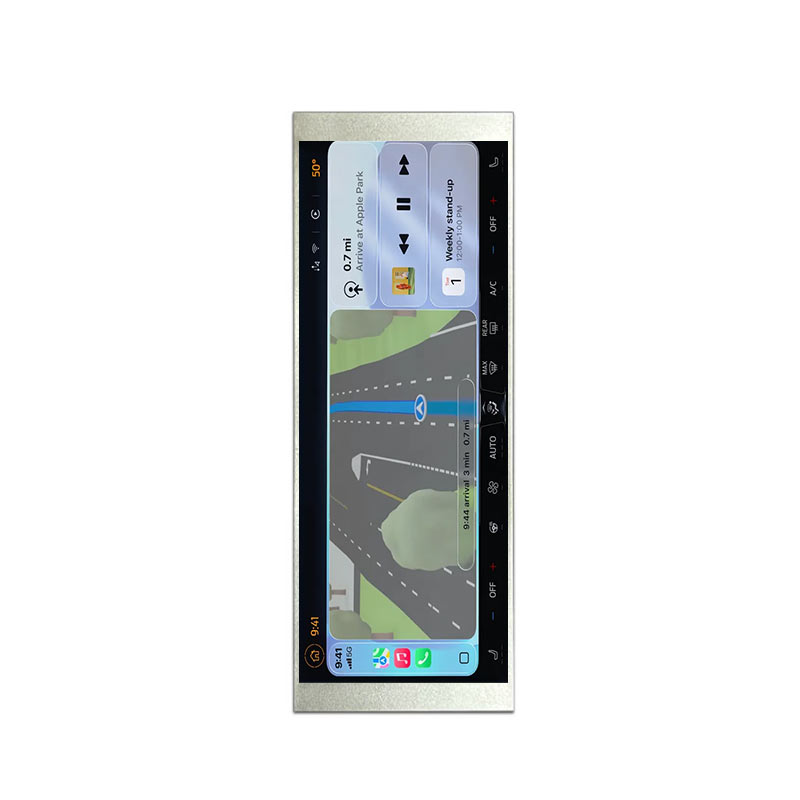

6.8 Inch Stretched Bar Display Overview
ET068BA01-T is a 6.8-inch stretched bar TFT LCD display with a resolution of 480×1280, featuring an IPS panel and LVDS interface. It offers high brightness of 600 cd/m², wide IPS viewing angles, and an outline dimension of 66.7 × 181 mm. Designed for reliable performance, it operates over a temperature range of −20 to 70 °C (storage −30 to 80 °C) and does not support touch functionality.

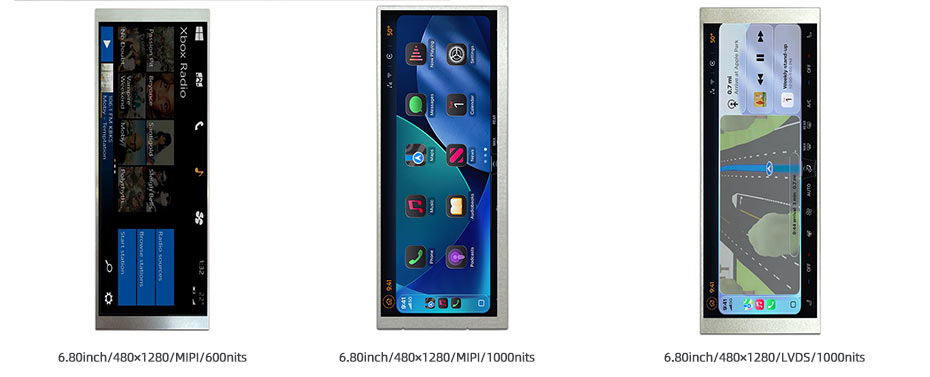

More 6.8 Inch Bar Displays For Reference
ET068BA03-T (480x1280 , MIPI, IPS, 600nits, -20~70°C, 66.7x181mm)
ET068BA07-T (480x1280 , MIPI, IPS, 1000nits, -20~70°C, 74.42x173.79mm)
ET068BA01-T (480x1280 , LVDS, IPS, 600nits, -20~70°C, 66.7x181mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
