3.4 Inch Stretched Bar Display Overview

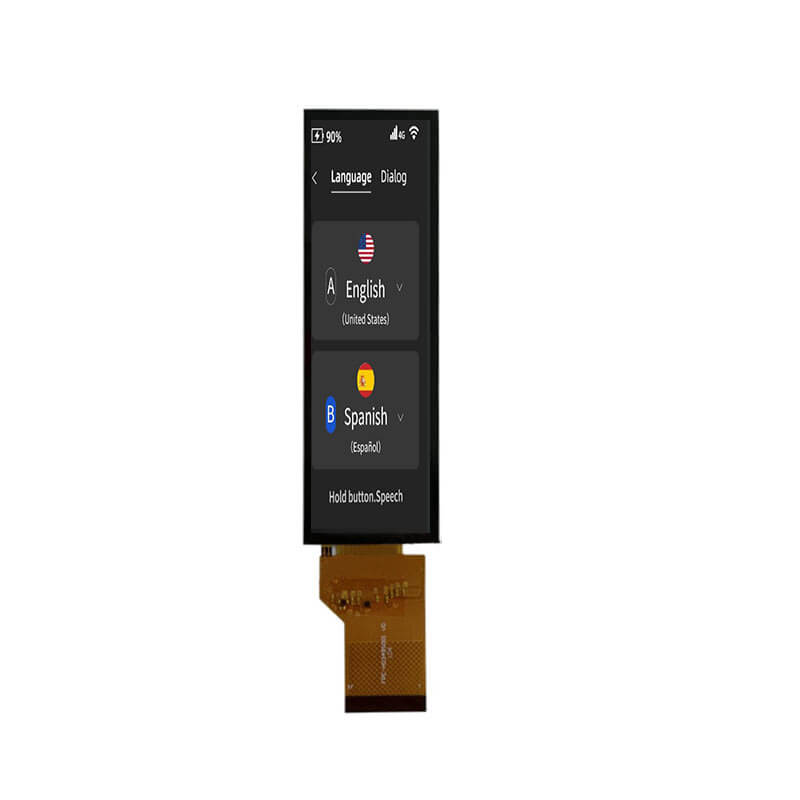

ET034BA01-H is a 3.4-inch stretched bar TFT LCD display featuring a resolution of 172×640 with an IPS panel. It adopts a transmissive display mode and supports multiple interfaces including MIPI, CPU, RGB, and SPI. The display offers an active area of 22.575 × 84 mm within an outline dimension of 28.989 × 92.692 mm, delivers a typical brightness of 350 cd/m², and provides wide 80° viewing angles in all directions. Integrated PCAP touch is supported, with an operating temperature range of −20 to 70 °C and storage temperature range of −30 to 80 °C.
More 3.4 Inch Bar Displays For Reference

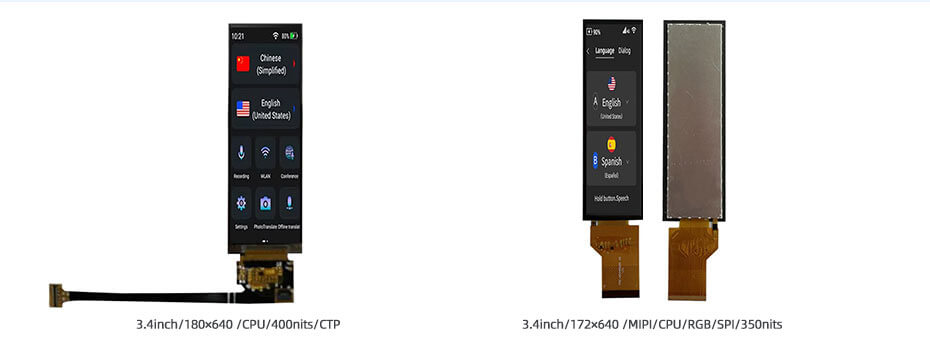

ET034BA01-TH (320x820, TTL, IPS, 300nits, -20~70°C, 31.2x76.6mm,in-Cell Touch)
ET034BA01-H (180×640, CPU, IPS, 400nits, -20~70°C, 25.72×88.83mm)
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
