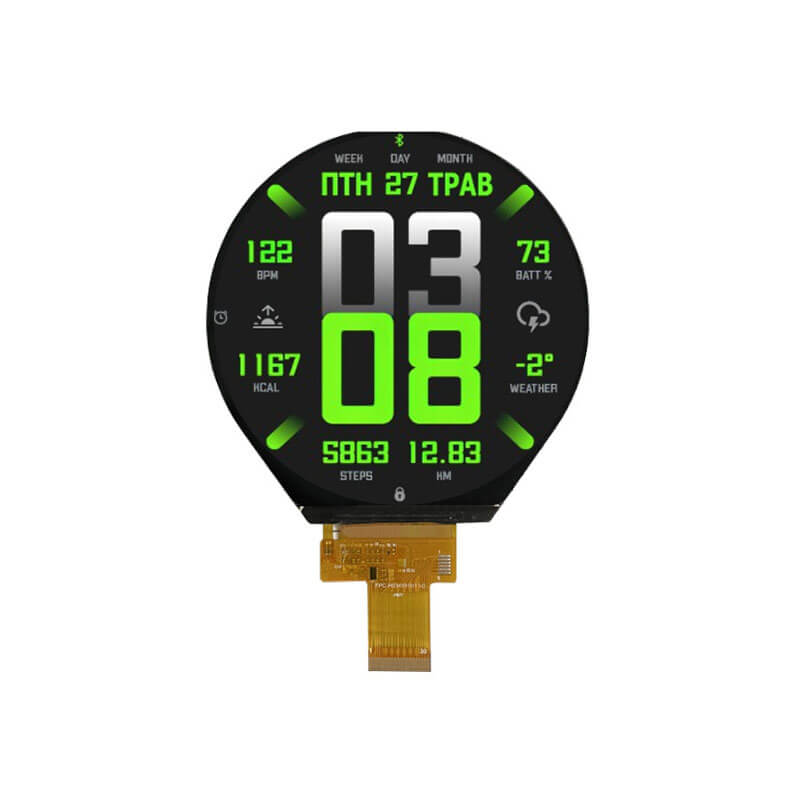

3.45 Inch Circular Display 800x800 MIPI IPS Round LCD Display For Home Appliance

Part No.:ET035CR01-H
Size:3.5″ inch
Resolution:800x800
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:94.9x96.95mm
Active Area:87.6x87.6mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.45 Inch Circular Display Overview
ET035CR01-H is a 3.45-inch circular IPS LCD display designed for home appliance applications, featuring a 800 × 800 resolution with a transmissive display mode and MIPI interface. It offers an active area of 87.6 × 87.6 mm, an outline size of 94.9 × 96.95 mm, and a wide viewing angle of 85° left/right/up/down. The display provides a typical brightness of 450 cd/m², supports operation between –20 to 70 °C, storage from –30 to 80 °C, and does not include touch functionality.

More 3.5 Inch Circular LCD Display For Reference
ET035CR10-T (800x640, TTL, 1500nits, -20~70°C, 97.6x83.79mm, RTP)
ET035CR01-H (800x800, MIPI, 450nits, -20~70°C, 94.9x96.95mm)
