3.54 Inch Circular Display 800x640 TTL 1500nits High Brightness IPS Round LCD Display With 4-wire Resistive Touch

Part No.:ET035CR10-T
Size:3.5″ inch
Resolution:800x640
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:97.6x83.79mm
Active Area:90x72mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1500(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:yes

3.54 Inch Circular Display Overview

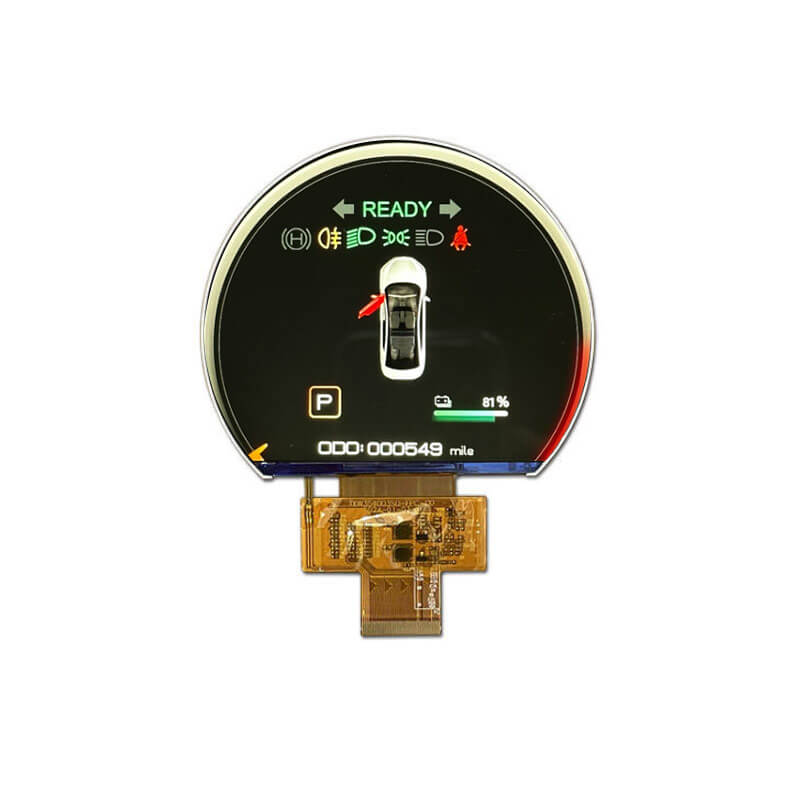

ET035CR10-T is a 3.54-inch circular IPS LCD display featuring a 800 × 640 resolution with a transmissive display mode and TTL interface. It offers an active area of 90 × 72 mm, an outline size of 97.6 × 83.79 mm, and a wide viewing angle of 85° left/right/up/down. The display provides high brightness of 1500 cd/m², supports operation between –20 to 70 °C, storage from –30 to 80 °C, and includes 4-wire resistive touch functionality.

More 3.5 Inch Circular LCD Display For Reference
ET035CR10-T (800x640, TTL, 1500nits, -20~70°C, 97.6x83.79mm, RTP)
ET035CR01-H (800x800, MIPI, 450nits, -20~70°C, 94.9x96.95mm)
