0.48"-5" LCD Display (4")

4 Inch Circular Display 720x720 MIPI 1200nits High Brightness IPS Round LCD Display For Home Appliance

Part No.:ET040CR10-T
Size:4″ inch
Resolution:720x720
Panel Interface:MIPI
Display mode:Transmissive
Outline Dimension:110x117.14mm
Active Area:101.52x101.52mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1200(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

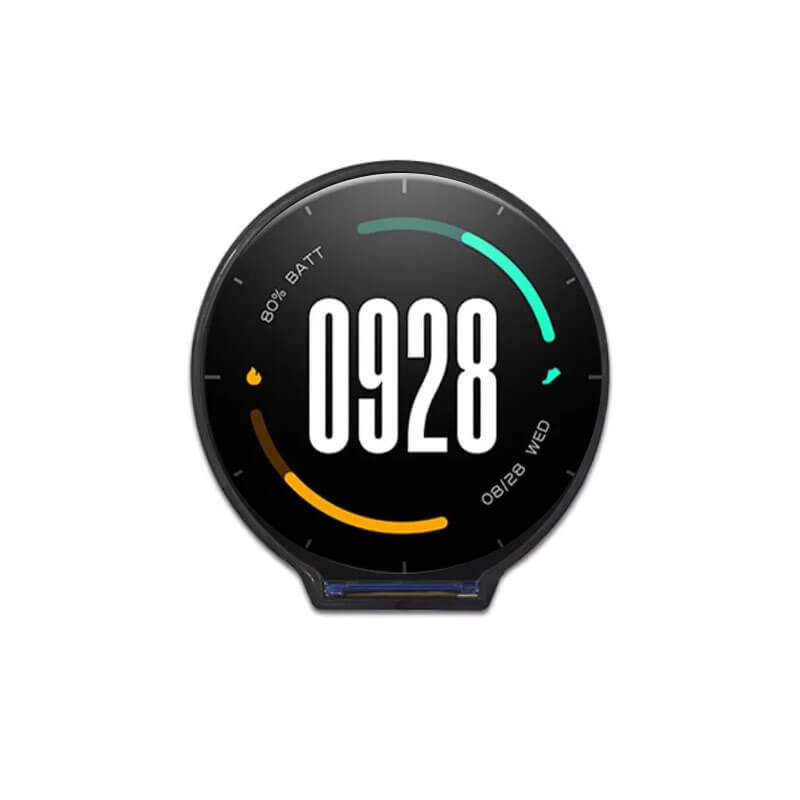

4 Inch Circular Display Overview
ET040CR10-T is a 4-inch circular IPS LCD display designed for home appliance applications, featuring a 720 × 720 resolution with a transmissive display mode and MIPI interface. It offers an active area of 101.52 × 101.52 mm, an outline size of 110 × 117.14 mm, and a wide viewing angle of 85° left/right/up/down. The display delivers a typical brightness of 1200 cd/m², supports operation between –20 to 70 °C and storage from –30 to 80 °C, and does not include touch functionality.

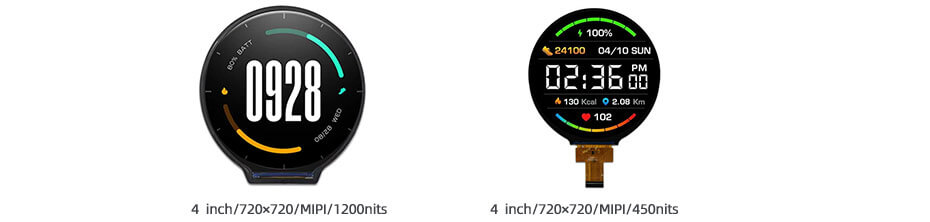

More 4 Inch Circular LCD Display For Reference
ET040CR10-T (720x720, MIPI, 1200nits, -20~70°C, 110x117.14mm)
ET040HD01-T (720x720, MIPI, 450nits, -20~70°C, 105.6x109.87mm)
