3.1 Inch TFT LCD Display 480×800 TTL IPS LCD Display For Automotive

Part No.:ET031WV10-T
Size:3.1″ inch
Resolution:480x800
Panel Interface:TTL
Display mode:Transmissive
Outline Dimension:43.48x74.72mm
Active Area:40.32x67.2mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.1 Inch TFT LCD Display 480×800 TTL IPS LCD Display For Automotive Video

3.1 Inch TFT LCD Display 480×800 TTL IPS LCD Display For Automotive Overview

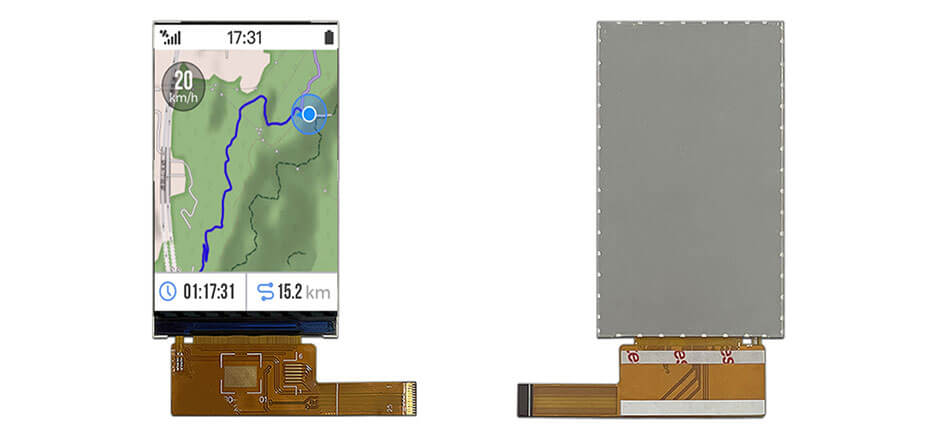

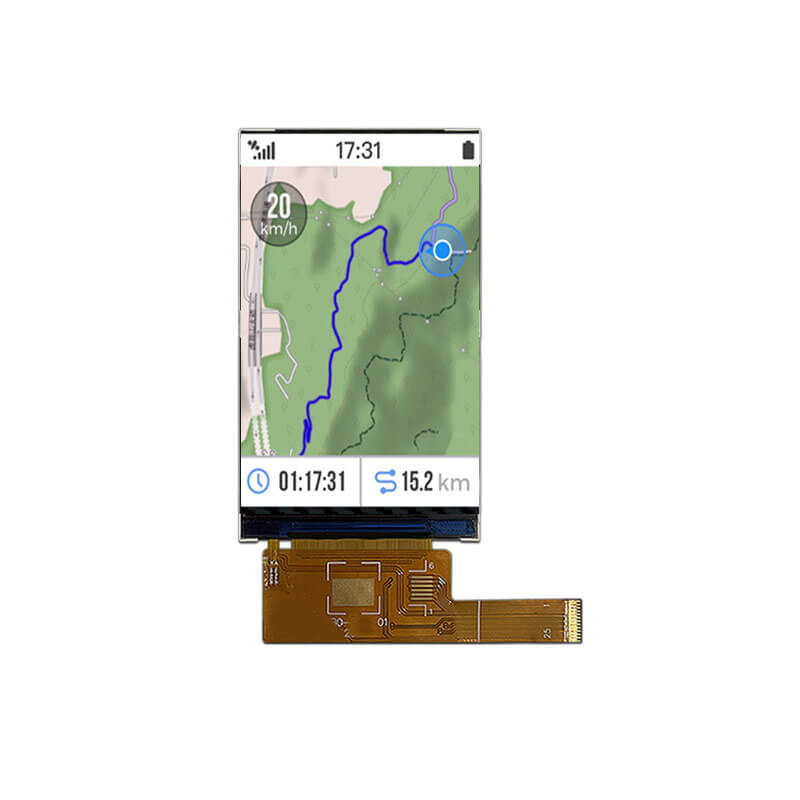

ET031WV10-T is a 3.1-inch diagonal TFT-LCD display product with a transmissive display mode. ET031WV10-T supports a resolution of 480×800 with a portrait-oriented aspect ratio of 3:5 (W:H), delivering compact and clear image performance, and utilizes a TTL interface for signal transmission. It features an active area of 40.32(W)×67.2(H) mm and an outline dimension of 43.48(W)×74.72(H) mm. The display provides a typical brightness of 400 cd/m², suitable for automotive applications, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET031WV10-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
