2.8 Inch TFT LCD Display 480×480 MIPI High Brightness 550nits IPS LCD Display With Capacitive Touch For Automotive

2.8 Inch TFT LCD Display 480×480 MIPI High Brightness 550nits IPS LCD Display With Capacitive Touch For Automotive Video

2.8 Inch TFT LCD Display 480×480 MIPI High Brightness 550nits IPS LCD Display With Capacitive Touch For Automotive Overview

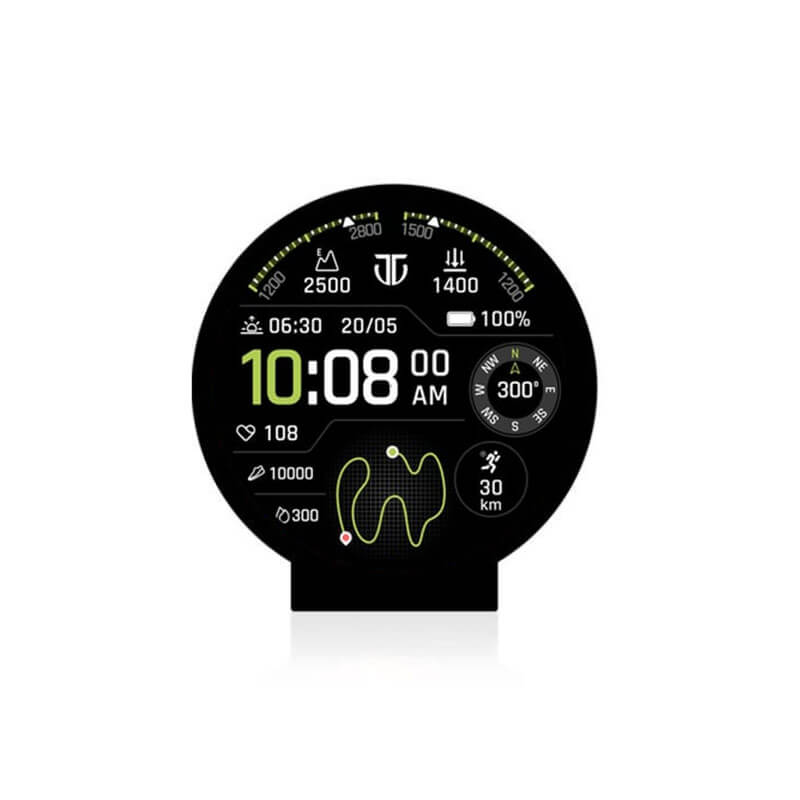

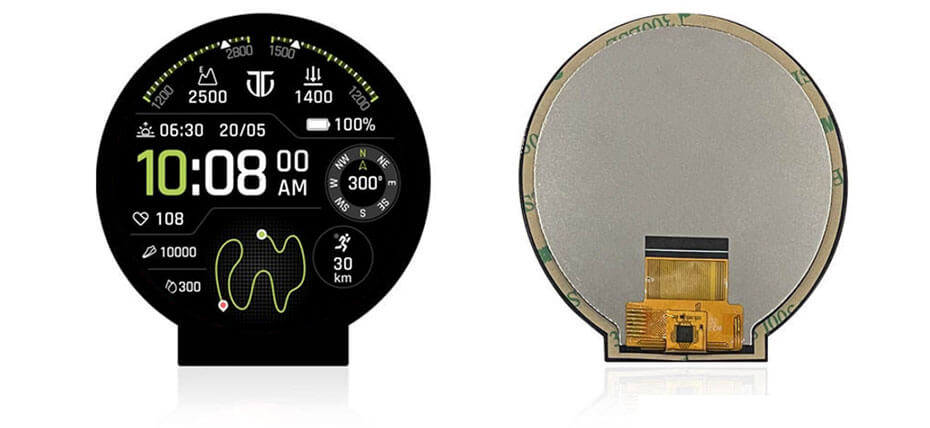

ET028WF02-TT is a 2.8-inch diagonal TFT-LCD display product with a transmissive display mode and integrated capacitive touch functionality. ET028WF02-TT supports a resolution of 480×480, delivering a square-format display performance, and utilizes a MIPI interface for signal transmission. It features an active area of 70.128(W)×70.128(H) mm and an outline dimension of 81.23(W)×84.4(H) mm. The display provides a typical brightness of 550 cd/m², suitable for automotive applications and bright ambient environments, and adopts IPS technology for wide viewing angles of 85/85/85/85 (L/R/U/D). ET028WF02-TT operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model includes touch functionality.

More 2.8 Inch Automotive Display For Reference
ET028QV03-T (240×320, CPU/RGB/SPI, IPS, 400nits, -20~70°C, 50×69.2mm)
ET028WF01-TT (480×480, TTL, IPS, 550nits, -20~70°C, 81.23×84.4mm)
ET028WF02-TT (480×480, MIPI, IPS, 550nits, -20~70°C, 81.23×84.4mm)

Automotive Display Solution
