0.48"-5" LCD Display (2.9")

2.9 Inch Stretched Bar Display 480x220 IPS CPU ST7306 TFT LCD Display

Part No.:ET290TF-F07VA
Size:2.9″ inch
Resolution:480x220
Panel Interface:CPU
Display mode:Transmissive

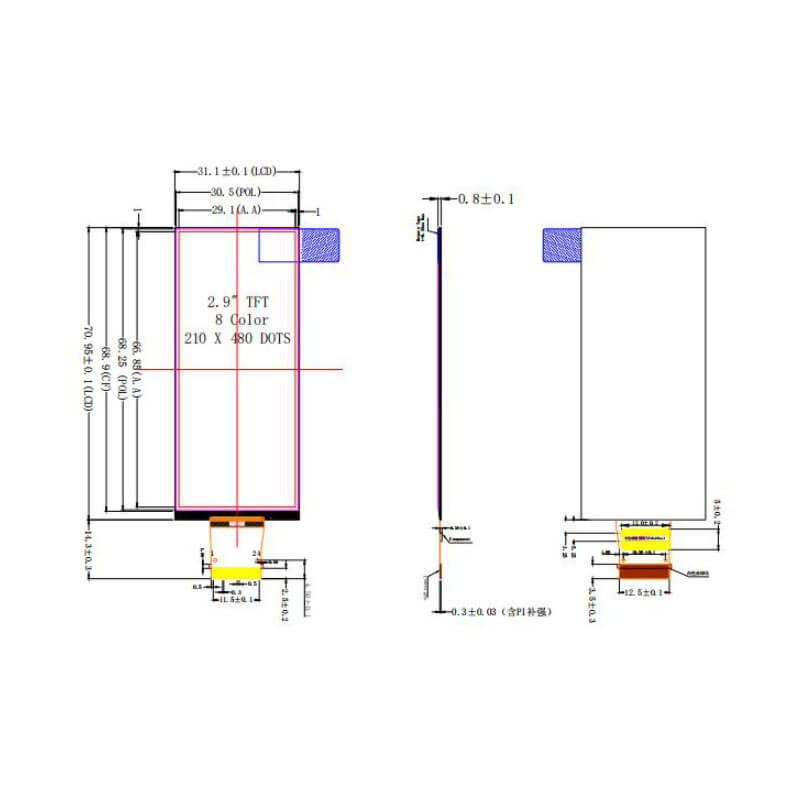

Outline Dimension:31.1x70.95mm
Active Area:29.1x66.85mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.9 Inch Stretched Bar Display Overview
ET290TF-F07VA is a 2.9-inch transmissive IPS TFT LCD stretched bar display with a 480×220 resolution and CPU interface. It features an active area of 29.1 × 66.85 mm, outline size of 31.1 × 70.95 mm, 80° viewing angle in all directions, and 450 cd/m² typical brightness. The display operates from –20 to 70 °C and can be stored from –30 to 80 °C, with no touch functionality.
