0.48"-5" LCD Display (2.68")

2.68 Inch Stretched Bar Display 142x428 IPS SPI TFT LCD Display

Part No.:ET027BA01-H
Size:2.68″ inch
Resolution:142x428
Panel Interface:SPI
Display mode:Transmissive

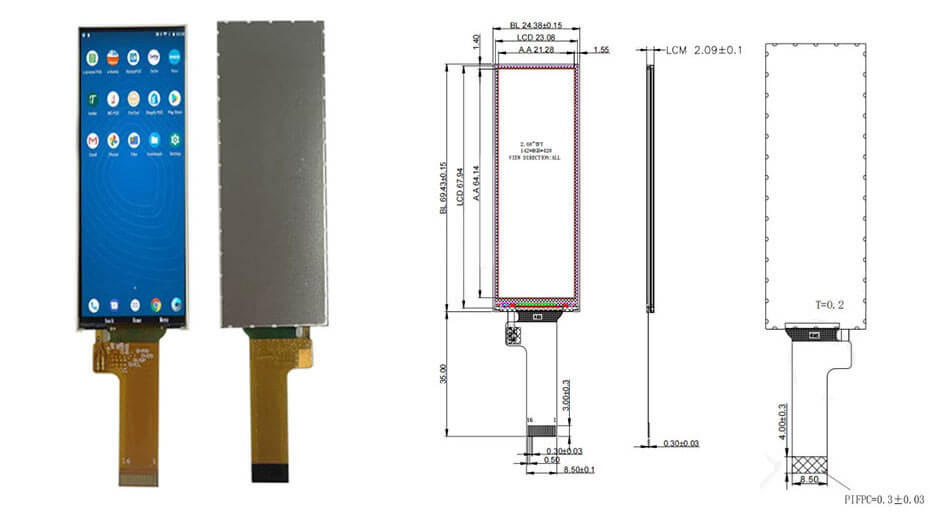

Outline Dimension:24.38x69.43mm
Active Area:21.28x64.14mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:450(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.68 Inch Stretched Bar Display Overview
ET027BA01-H is a 2.68-inch transmissive IPS TFT LCD stretched bar display with a 142×428 resolution and SPI interface. It has an active area of 21.28 × 64.14 mm, outline size of 24.38 × 69.43 mm, 85° viewing angle in all directions, and 450 cd/m² typical brightness. The display operates in temperatures from –20 to 70 °C (storage –30 to 80 °C) and does not support touch.
