0.48"-5" LCD Display (3.2")

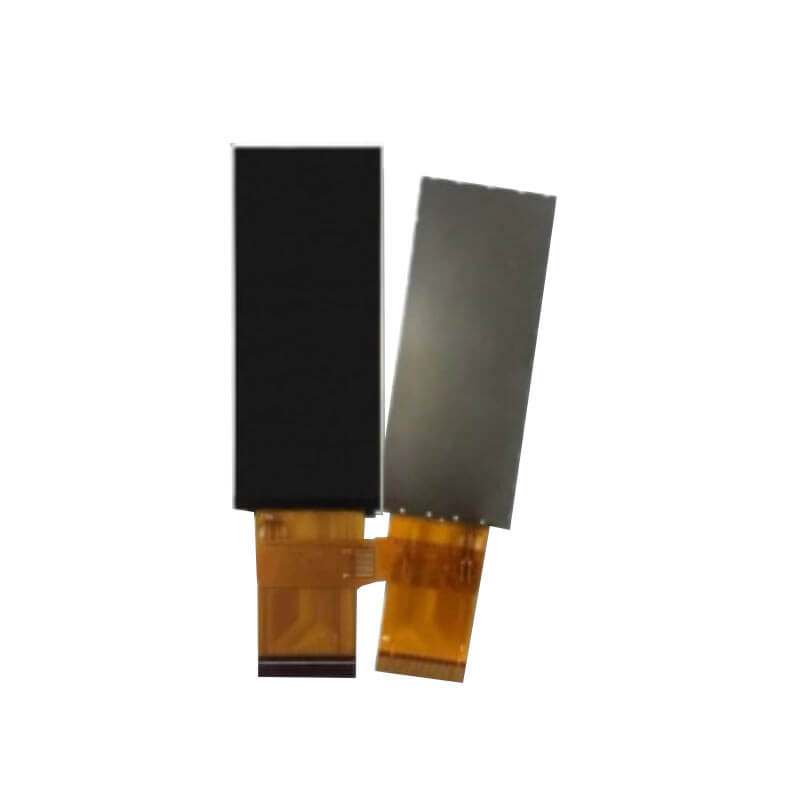

3.16 Inch Stretched Bar Display 320x820 IPS RGB+SPI TFT LCD Display

Part No.:ET032BA01-TC
Size:3.2″ inch
Resolution:320x820
Panel Interface:RGB+SPI
Display mode:Transmissive

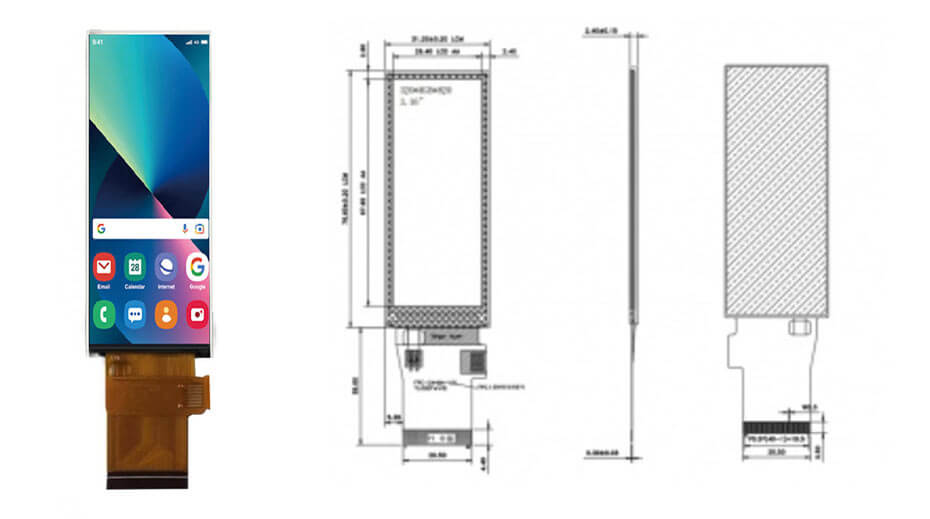

Outline Dimension:31.2x76.6x2.4mm
Active Area:26.4x67.65mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

3.16 Inch Stretched Bar Display Overview
ET032BA01-TC is a 3.16-inch transmissive IPS TFT LCD stretched bar display with a 320×820 resolution and RGB+SPI interface. It has an active area of 26.4 × 67.65 mm, outline size of 31.2 × 76.6 × 2.4 mm, 80° viewing angle in all directions, and a typical brightness of 300 cd/m². The display operates from –20 to 70 °C and can be stored from –30 to 80 °C, with no touch functionality.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.

Production and Manufacturing
