2.7 Inch TFT LCD Display 320×240 Serial RGB IPS LCD Display For Automotive

Part No.:ET027HV10-T
Size:2.7″ inch
Resolution:320x240
Panel Interface:Serial RGB
Display mode:Transmissive
Outline Dimension:67.5x39.1mm
Active Area:58.8x33.06mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:300(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.7 Inch TFT LCD Display 320×240 Serial RGB IPS LCD Display For Automotive Video

2.7 Inch TFT LCD Display 320×240 Serial RGB IPS LCD Display For Automotive Overview

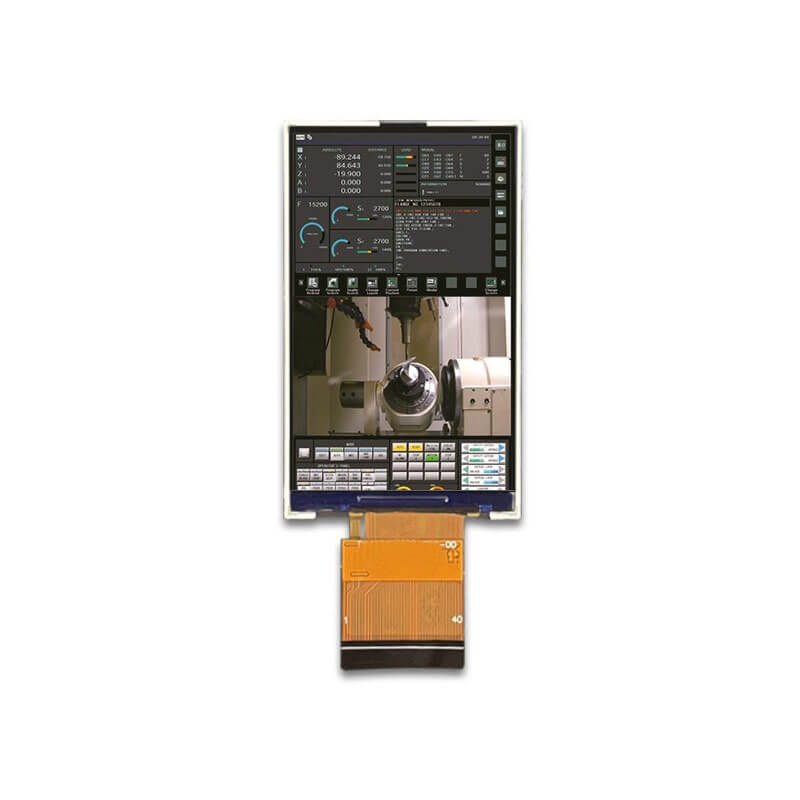

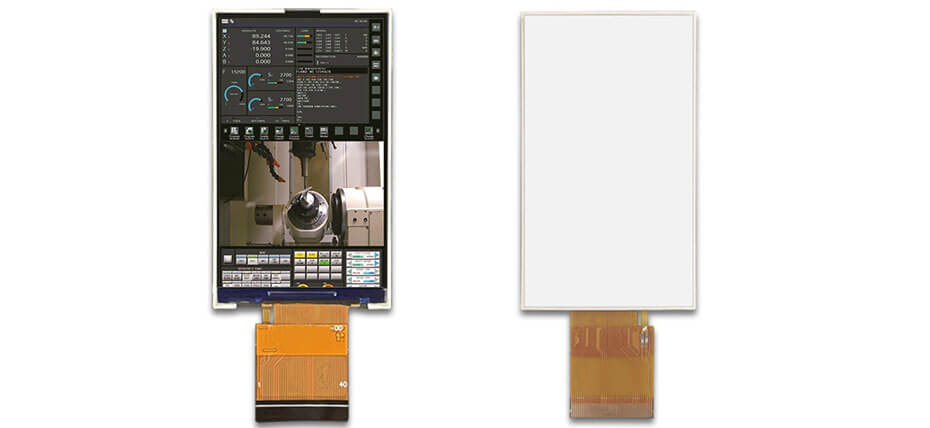

ET027HV10-T is a 2.7-inch diagonal TFT-LCD display product with a transmissive display mode. ET027HV10-T supports a resolution of 320×240 with a standard 4:3 aspect ratio, delivering compact and stable image performance, and utilizes a Serial RGB interface for signal transmission. It features an active area of 58.8(W)×33.06(H) mm and an outline dimension of 67.5(W)×39.1(H) mm. The display provides a typical brightness of 300 cd/m², suitable for automotive applications and general ambient environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET027HV10-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
