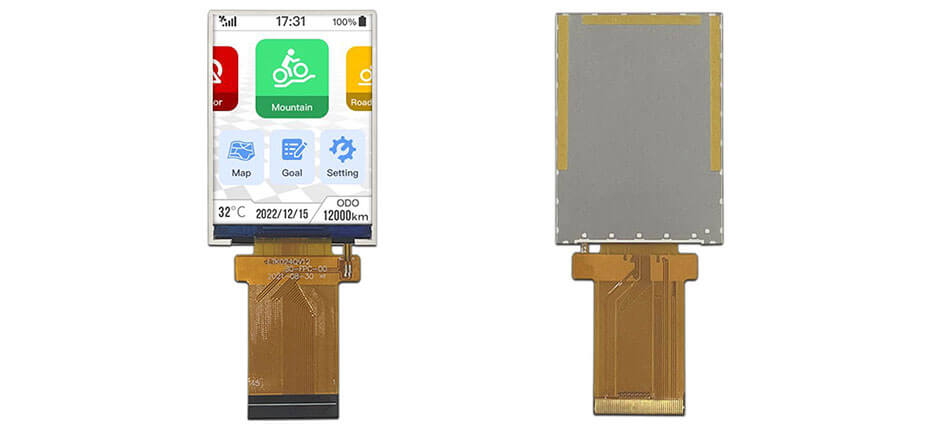

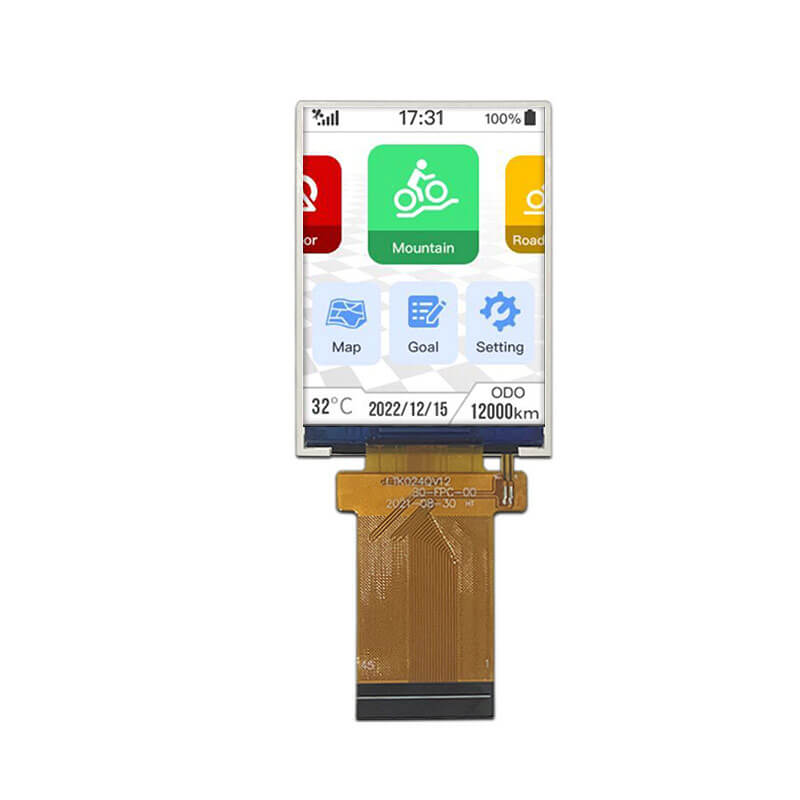

2.4 Inch TFT LCD Display 240×320 CPU 700nits High Brightness IPS LCD Display For Automotive OverviewET024HV11-T is a 2.4-inch diagonal TFT-LCD display product with a transmissive display mode. ET024HV11-T supports a resolution of 240×320 with a standard 3:4 aspect ratio, delivering compact and clear image performance, and utilizes a CPU interface for signal transmission. It features an active area of 36.72(W)×48.96(H) mm and an outline dimension of 42.72(W)×59.46(H) mm. The display provides a high brightness of 700 cd/m², suitable for automotive applications and high ambient light environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET024HV11-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.
More 2.4 Inch Automotive Display For Reference
ET024HV10-T (240×320, TTL, IPS, 450nits, -20~70°C, 42.72×60.26mm)
ET024HV11-T (240×320, CPU, IPS, 700nits, -20~70°C, 42.72×59.46mm)
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
