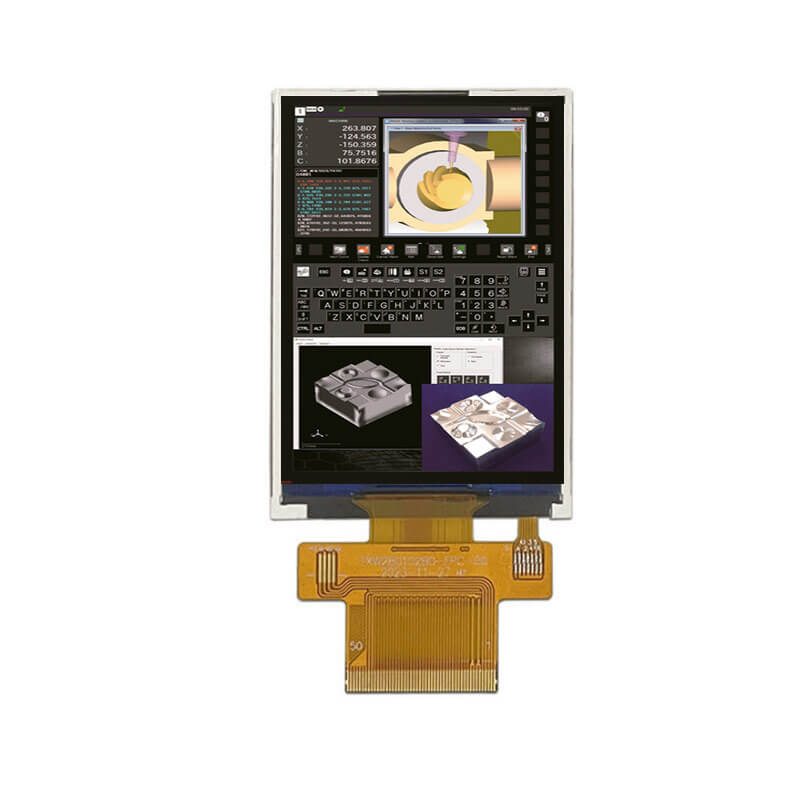

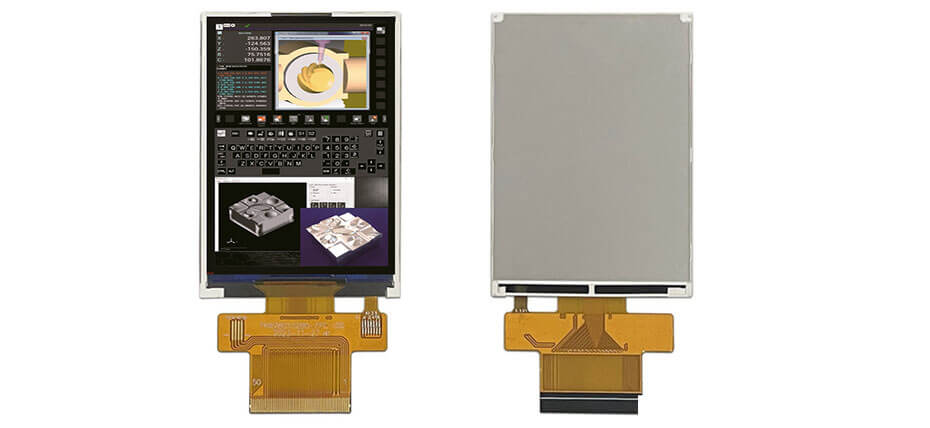

2.8 Inch TFT LCD Display 240×320 CPU RGB SPI IPS LCD Display For Automotive

Part No.:ET028QV03-T
Size:2.8″ inch
Resolution:240x320
Panel Interface:CPU/RGB/SPI
Display mode:Transmissive
Outline Dimension:50x69.2mm
Active Area:43.2x57.6mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:400(Typ.)
Operation / Storage Temp:-20~70°C / -30~80°C
Touch:no

2.8 Inch TFT LCD Display 240×320 CPU RGB SPI IPS LCD Display For Automotive Video

2.8 Inch TFT LCD Display 240×320 CPU RGB SPI IPS LCD Display For Automotive Overview

ET028QV03-T is a 2.8-inch diagonal TFT-LCD display product with a transmissive display mode. ET028QV03-T supports a resolution of 240×320 with a standard 3:4 aspect ratio, delivering compact and stable image performance, and utilizes a versatile CPU/RGB/SPI interface for signal transmission. It features an active area of 43.2(W)×57.6(H) mm and an outline dimension of 50(W)×69.2(H) mm. The display provides a typical brightness of 400 cd/m², suitable for automotive applications and general ambient environments, and offers wide viewing angles of 80/80/80/80 (L/R/U/D). ET028QV03-T operates within a temperature range of -20 to 70°C and can be stored within -30 to 80°C. This model does not include a touch function.

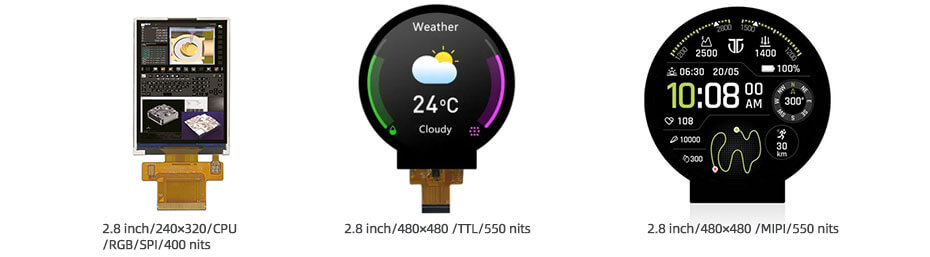

More 2.8 Inch Automotive Display For Reference
ET028QV03-T (240×320, CPU/RGB/SPI, IPS, 400nits, -20~70°C, 50×69.2mm)
ET028WF01-TT (480×480, TTL, IPS, 550nits, -20~70°C, 81.23×84.4mm)
ET028WF02-TT (480×480, MIPI, IPS, 550nits, -20~70°C, 81.23×84.4mm)
