2.7 Inch Stretched Bar Display 256x640 IPS CPU/RGB/SPI Wide Temperature TFT LCD Display

Part No.:ET027PM01-X
Size:2.7″ inch
Resolution:256x64
Panel Interface:CPU/RGB/SPI
Display mode:Transmissive

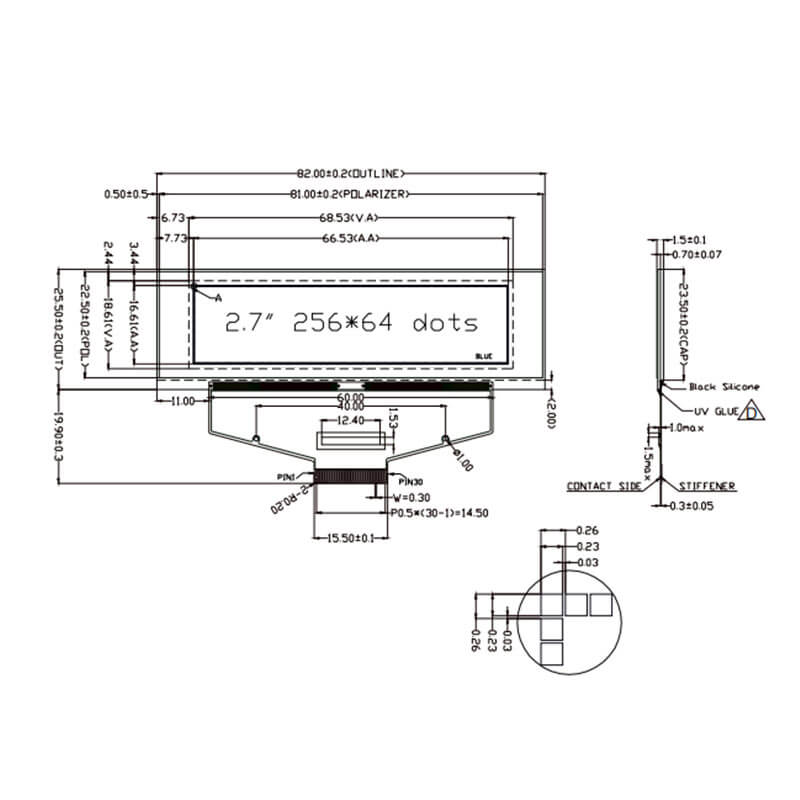

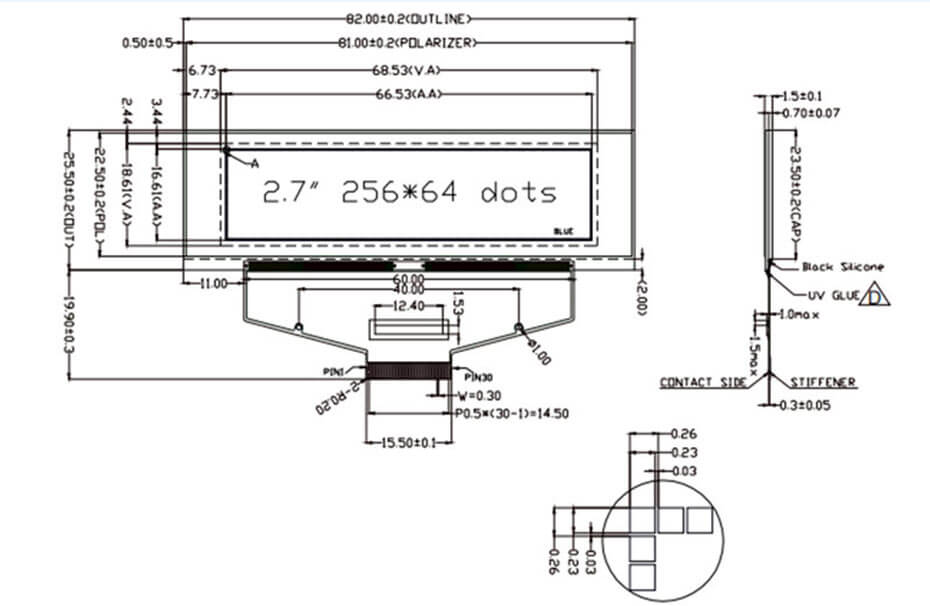

Outline Dimension:82x25.5mm
Active Area:66.53x16.61mm
Viewing Angle L/R/U/D:80/80/80/80
Brightness（cd/m2）:60(Typ.)
Operation / Storage Temp:-30~80°C / -40~85°C
Touch:no

2.7 Inch Stretched Bar Display Overview
ET027PM01-X is a 2.7-inch transmissive TFT LCD stretched bar display with a 256×64 resolution and CPU/RGB/SPI interface. It features a 66.53 × 16.61 mm active area, 82 × 25.5 mm outline size, 80° viewing angle in all directions, and 60 cd/m² typical brightness. The display supports wide temperature operation from –30 to 80 °C (storage –40 to 85 °C) and does not support touch.
