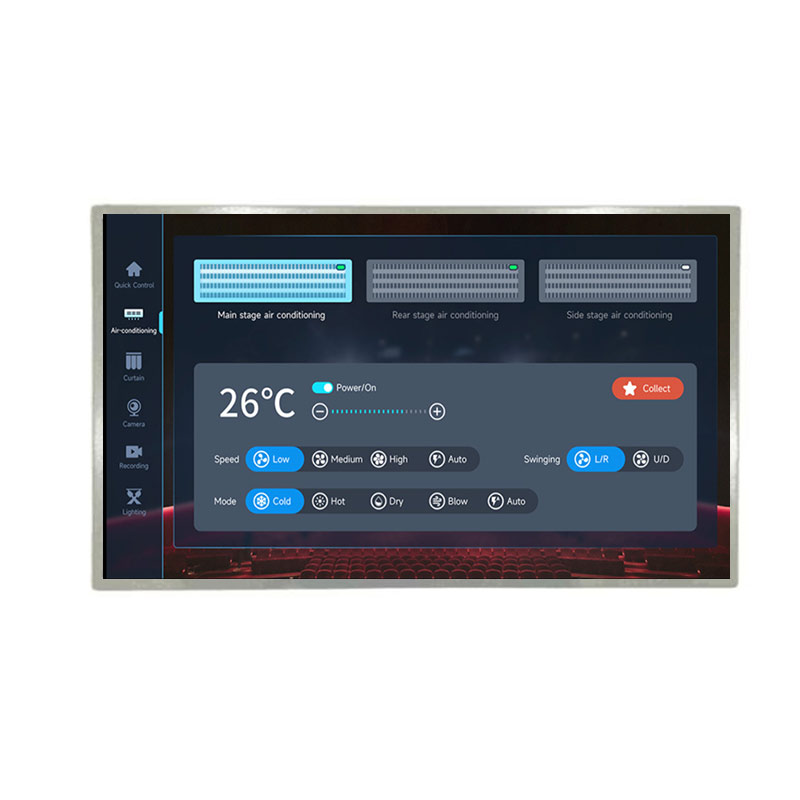

17.3 Inch 4K 3840x2160 LCD Display 1300nits High Brightness eDP (4 Lanes) IPS LCD Module

17.3 Inch 4k Display Overview

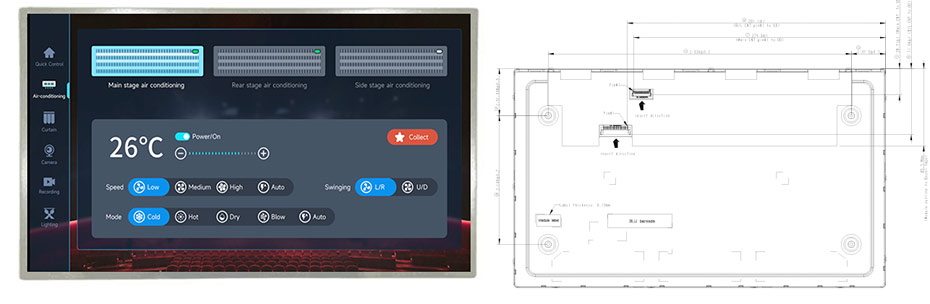

GK173VB-01B supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 255 PPI. It features active area of 381.888(W)×214.812(H) mm, outline size of 406(W)×239(H)×13.17(D) mm, with surface treament of Hard coating, net weight of 1.06Kgs (Max.). As a AAS, Normally Black, Transmissive LCM product, GK173VB-01B can provides 1300 cd/m² display brightness 12000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 95% (DCI-P3). This product adopted Mini LED as it's backlight systerm which was placed as Direct light type and have a working life time of 30K hours, With LED Driver. GK173VB-01B utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 17.3 Inch 4k Display For Reference
NE173QUM-N42 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
ET173UH01-H (LCM, 3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
NE173QUM-N61 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
B173ZAN06.4 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N63 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N62 (LCM, 3840x2160, eDP, 610nits, 0~50°C, 393.49x231.48mm)
GK173VB-01B (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 406x239mm)
