17.3 Inch 4K 3840x2160 LCD Display eDP (4 Lanes) IPS LCD Module

17.3 Inch 4k Display Overview

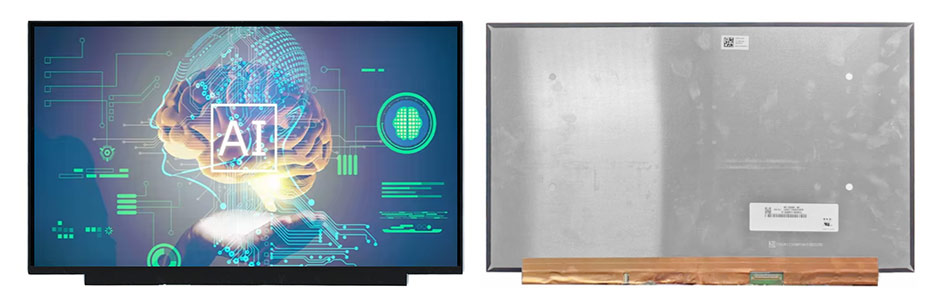

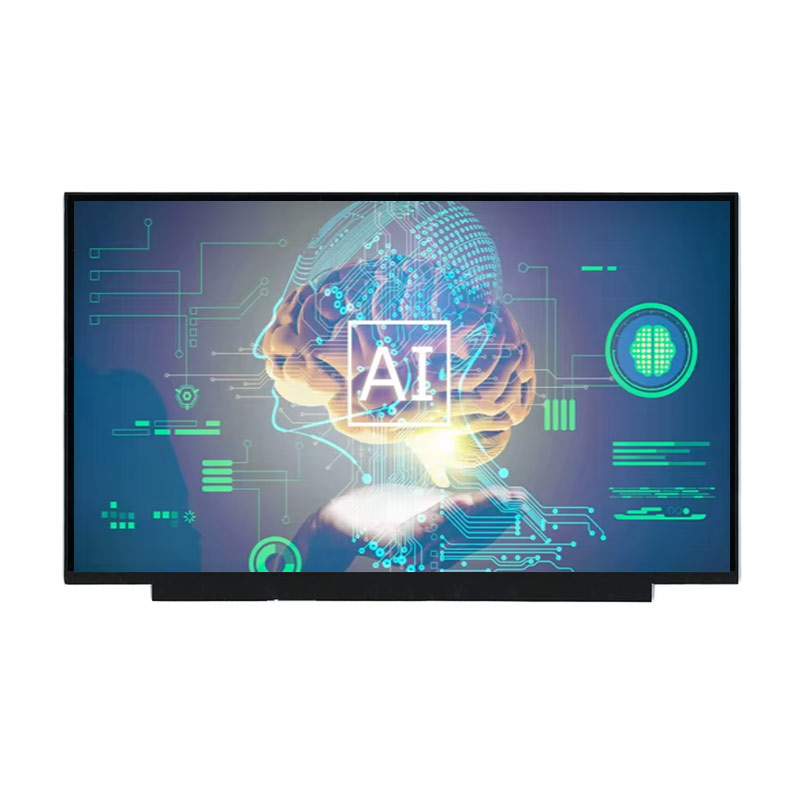

NE173QUM-N61 is a 17.3 inch diagonal Oxide TFT-LCD display screen product, with an incorporated WLED lighting system, With LED Driver, without touch screen.NE173QUM-N61 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 255 PPI. As for mechanical detail, it features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×238.31(H)×3.5(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 510g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NE173QUM-N61 can provides 400 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. NE173QUM-N61 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 17.3 Inch 4k Display For Reference
NE173QUM-N42 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
ET173UH01-H (LCM, 3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
NE173QUM-N61 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
B173ZAN06.4 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N63 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N62 (LCM, 3840x2160, eDP, 610nits, 0~50°C, 393.49x231.48mm)
GK173VB-01B (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 406x239mm)
