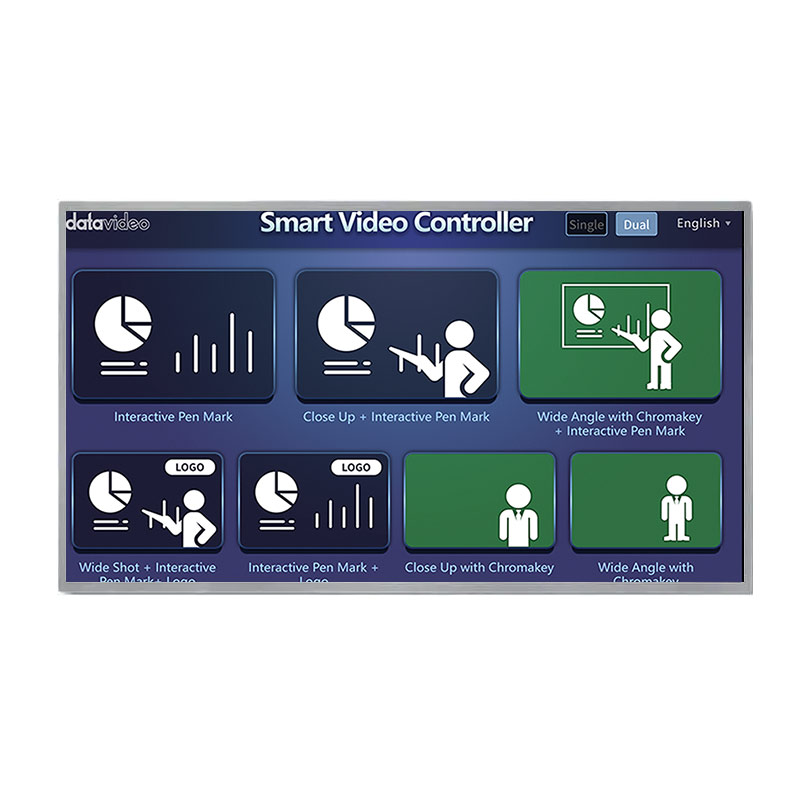

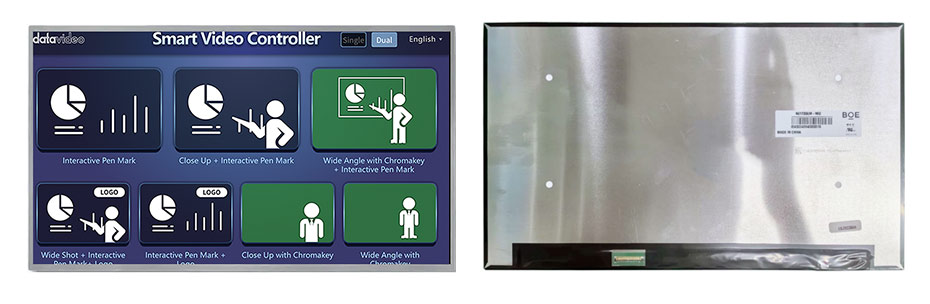

17.3 Inch 4K 3840x2160 LCD Display 610nits High Brightness eDP (4 Lanes) IPS LCD Module

17.3 Inch 4k Display Overview
NE173QUM-N62 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 255 PPI. It features active area of 381.888(W)×214.812(H) mm, outline size of 393.49(W)×231.48(H)×5.8(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 550g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). As a ADS, Normally Black, Transmissive LCM product, NE173QUM-N62 can provides 610 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product adopted 10S5P×2CN WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 9K hours, With LED Driver. NE173QUM-N62 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

More 17.3 Inch 4k Display For Reference
NE173QUM-N42 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
ET173UH01-H (LCM, 3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
NE173QUM-N61 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
B173ZAN06.4 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N63 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N62 (LCM, 3840x2160, eDP, 610nits, 0~50°C, 393.49x231.48mm)
GK173VB-01B (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 406x239mm)
