17.3 Inch 4K 3840x2160 LCD Display 500nits High Brightness eDP (4 Lanes) IPS LCD Module

17.3 Inch 4k Display Overview

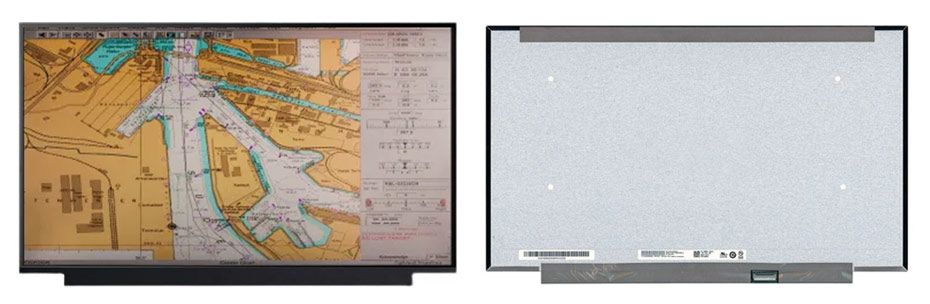

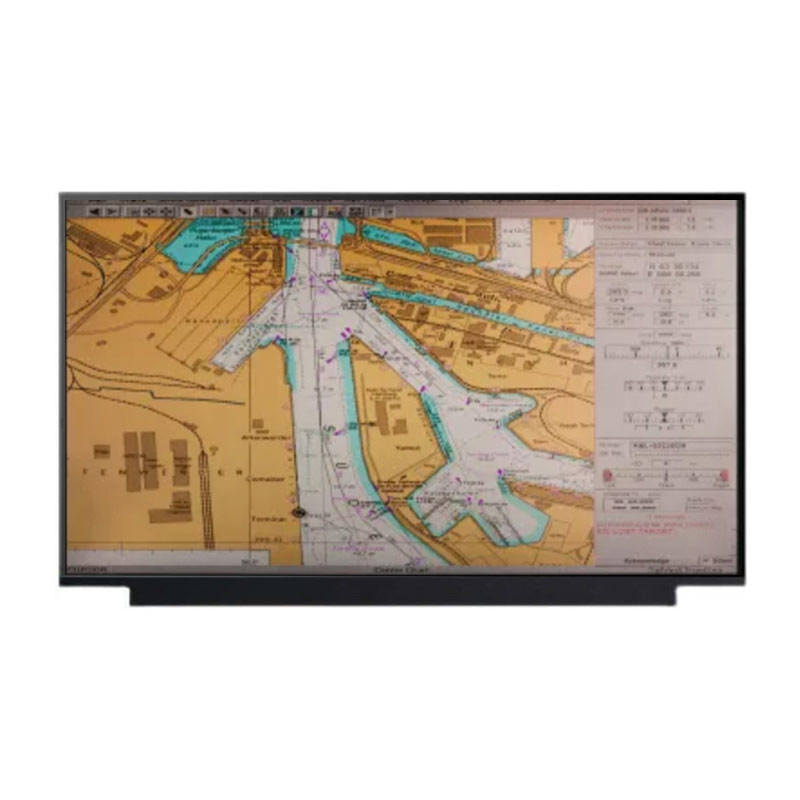

B173ZAN06.4 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, it's pixel density is 255 PPI. It features active area of 381.888(W)×214.812(H) mm, outline size of 389.89(W)×238.31(H)×3.5(D) mm, with surface treament of Antiglare, net weight of 610g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a AHVA, Normally Black, Transmissive LCM product, B173ZAN06.4 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit + Hi-FRC gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (Adobe). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 15K hours, With LED Driver. B173ZAN06.4 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 120Hz.

More 17.3 Inch 4k Display For Reference
NE173QUM-N42 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
ET173UH01-H (LCM, 3840x2160, eDP, 1500nits, 0~50°C, 414.85x268mm)
NE173QUM-N61 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
B173ZAN06.4 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N63 (LCM, 3840x2160, eDP, 400nits, 0~50°C, 389.89x238.31mm)
NE173QUM-N62 (LCM, 3840x2160, eDP, 610nits, 0~50°C, 393.49x231.48mm)
GK173VB-01B (LCM, 3840x2160, eDP, 1300nits, -20~70°C, 406x239mm)
