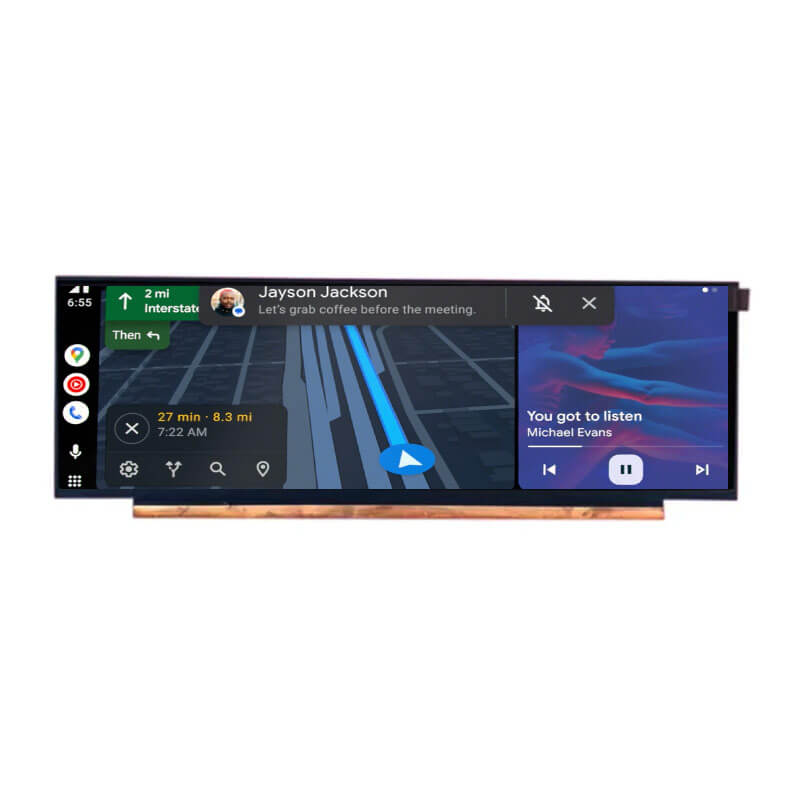

14.1 Inch 4K 3840x1100 LCD Display eDP IPS LCD Module For 3D Printer

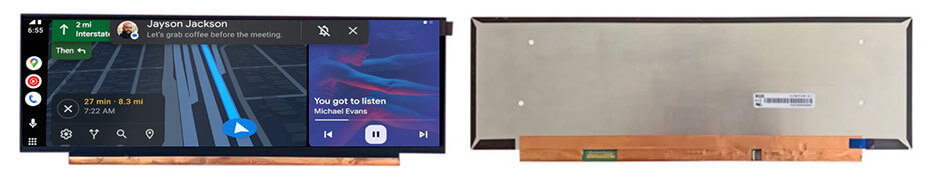

14.1 Inch 4k Display Overview
NV140XTM-N52 supports display 3840(RGB)×1100 with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 283 PPI. As for mechanical detail, it features active area of 344.218(W)×98.604(H) mm, outline size of 350.52(W)×118.65(H)×2.5(D) mm, with surface treament of Hard coating, net weight of 170g (Max.), shape stype of Slim (PCBA Flat, T≤3.2mm). As a ADS, Normally Black, Transmissive LCM product, NV140XTM-N52 can provides 300 cd/m² display brightness 1200:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (NTSC). This product adopted 10S6P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 15K hours, With LED Driver. NV140XTM-N52 utilizes eDP (2 Lanes) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

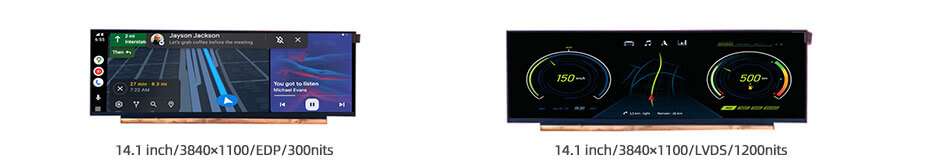

More 14.1 Inch 4k Display For Reference
NV140XTM-N52 (LCM, 3840x1100, eDP, 300nits, 0~60°C, 350.52x118.65mm)
ET141UH01-R(LCM, 3840x1100, LVDS, 1200nits, 0~60°C, 350.52x118.65mm)

4k &8K Display Applications

Production and Manufacturing
