0.48"-5" LCD Display (4.9")

4.9 Inch Square Display 480x480 TTL 1200nits High Brightnss Wide Temperature TFT LCD Display

Part No.:ET050SQ01-A
Size:4.9″ inch
Resolution:480x480
Panel Interface:TTL (1 ch,6-bit)
Display mode:Transmissive
Outline Dimension:111.55x110mm
Active Area:87.3x87.3mm
Viewing Angle L/R/U/D:50/50/40/40
Brightness（cd/m2）:1200cd/m²
Operation / Storage Temp:-30~80°C / -30~80°C
Touch:no

4.9 Inch Square Display Overview

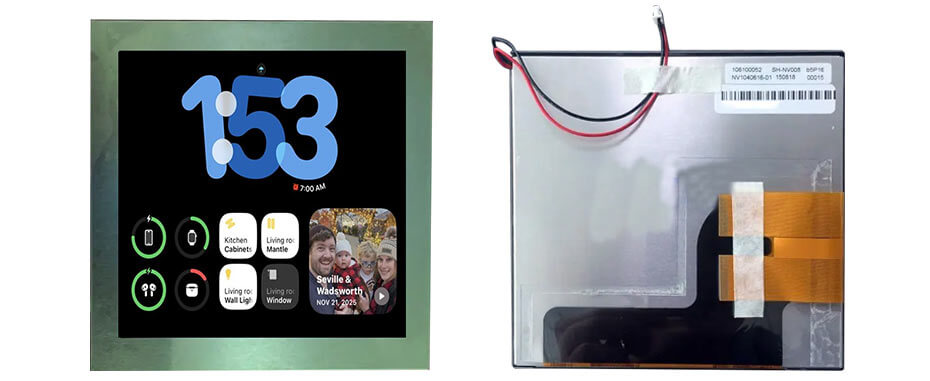

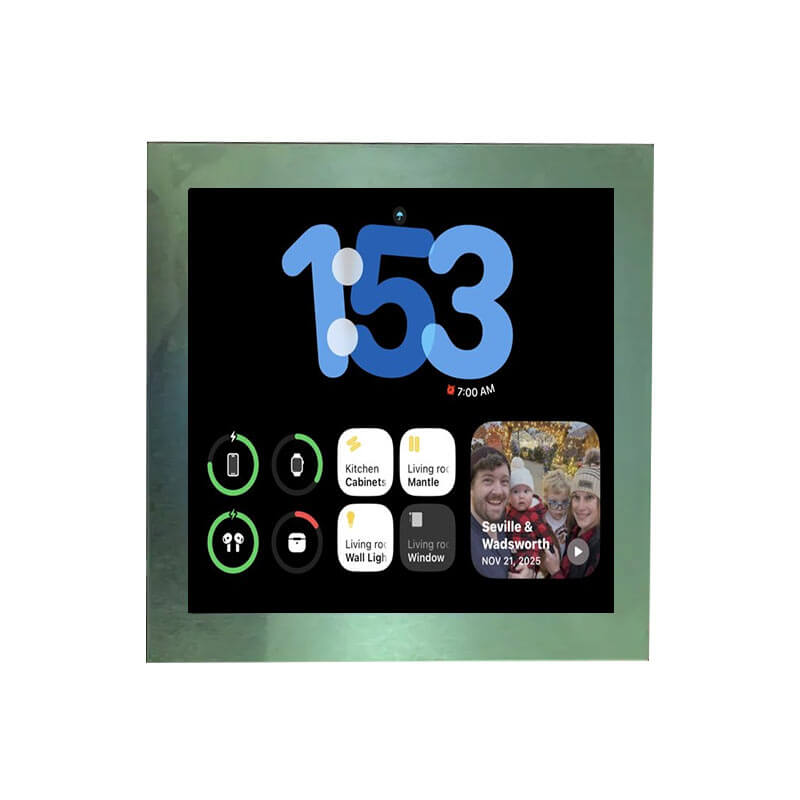

ET050SQ01-A is a 4.9-inch square TFT LCD display featuring a 480×480 resolution with a 1:1 aspect ratio. It adopts a transmissive display mode and a TTL interface (1-channel, 6-bit), delivering high brightness up to 1200 cd/m² for excellent outdoor readability. The display offers an active area of 87.3 × 87.3 mm within an outline dimension of 111.55 × 110 mm, and supports wide operating and storage temperatures from –30 °C to 80 °C. It provides viewing angles of 50°/50°/40°/40° (L/R/U/D) and is supplied without a touch panel.

YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options

Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
