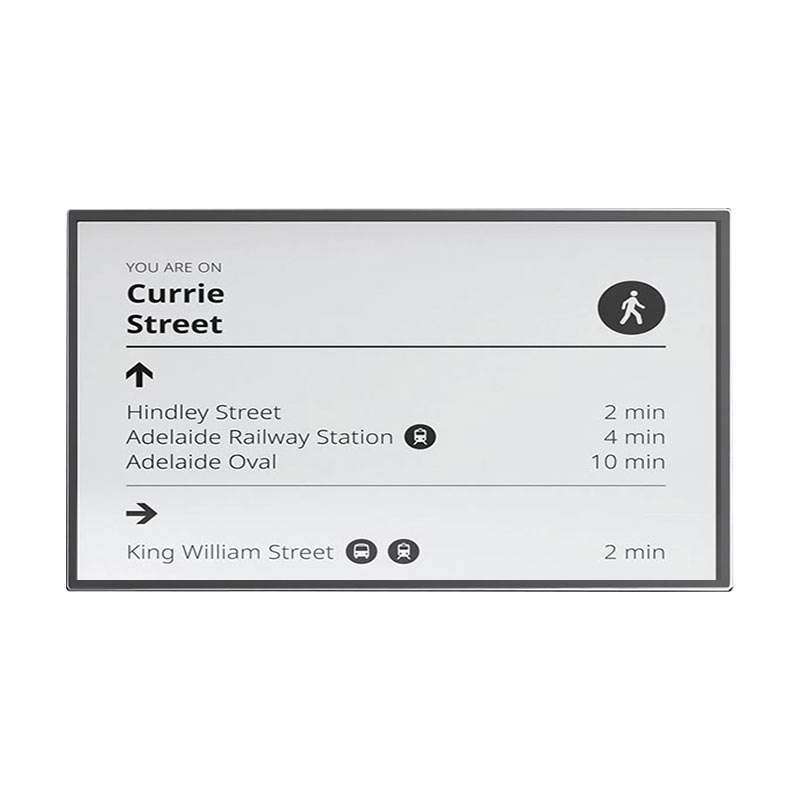

TN0227ANVNANN-GNx03 2.3 Inch Sunlight Readable LCD Display 240x300 Reflective SPI Memory-in-Pixel LCD Display

TN0227ANVNANN-GNx03 Overview
TN0227ANVNANN-GNx03 supports display 240×300 with aspect ratio of 4:5 (W:H), whose pixels are arranged in Rectangle. As for mechanical detail, it features active area of 36(W)×45(H) mm, outline size of 41.65(W)×48.5(H)×1.54(D) mm, with surface treament of Glare (Haze 0%), net weight of TBD. As a ECB, Normally Black, Reflective LCM product, TN0227ANVNANN-GNx03 can provides , 40:1 (Typ.) reflective contrast ratio, 60/60/60/60 (Typ.)(CR≥2) (L/R/U/D) viewing angle , and response time of 12/13 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 1-bit gray scale signal for each dot, thus presenting a palette of Monochrome colors. This product have no backlight. TN0227ANVNANN-GNx03 utilizes SPI as it's signal inputting systerm, which connected by 10 pins FPC with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 1Hz.

TN0227ANVNANN-GNx03 Feature
-Reflective
-Sunlight Readable
-Glossy
-Portrait type

Screen Size: 2.3 inch
Resolution: 240x300
Brand:Kyocera
TN0227ANVNANN-GNx03 2.3 Inch 240x300 Sunlight Readable LCD Display.

TN0227ANVNANN-GNx03 Application
For Wearable & Industrial LCD Display.

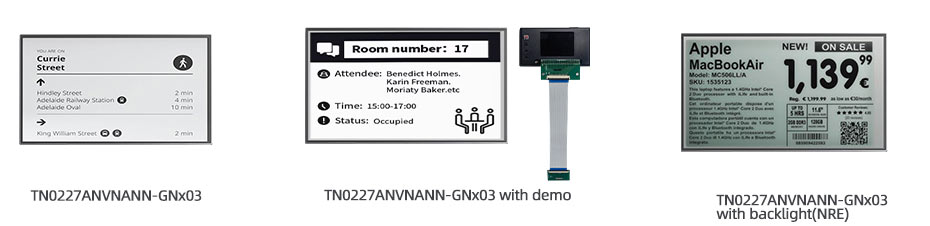

TN0227ANVNANN-GNx03 Options For Reference
TN0227ANVNANN-GNx03

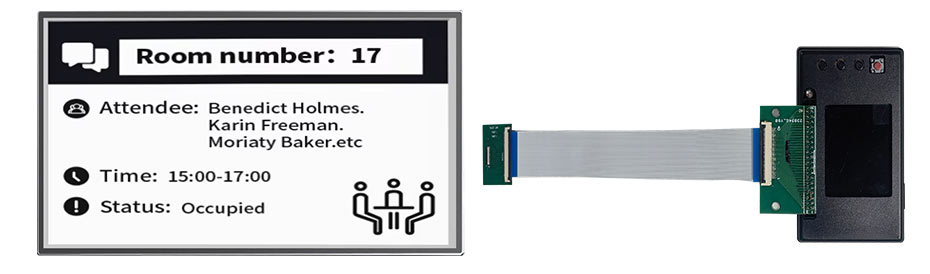

TN0227ANVNANN-GNx03 with demo
TN0227ANVNANN-GNx03 with backlight(NRE)

Reflective MIP Displays Technology

Reflective MIP Displays Application

To operate in low-light conditions, RLCDs need to be paired with an efficient front light solution such as the Youritech Front Light Panel.With improved optical coupling, collimation, and attenuation, our front light solution efficiently delivers more light exactly where you need it, and efficient LEDs can be used without experiencing typical issues with diffusion and material losses. Plus, as few as one low-power LED can be used in a front light instead of the five or more LEDs needed for alternative display light guides, making our solution the most efficient front light option available today.

It means your devices can stop relying on power-hungry backlights. By reinventing light guide and front light technology, we makes it possible to fully embrace the inherent power-saving features of RLCDs – from the brightest outdoor to the darkest indoor lighting environments.
