14 Inch 4K 3840x2160 AMOLED Display eDP IPS OLED Display For 3D Printer

14 Inch 4k Display Overview

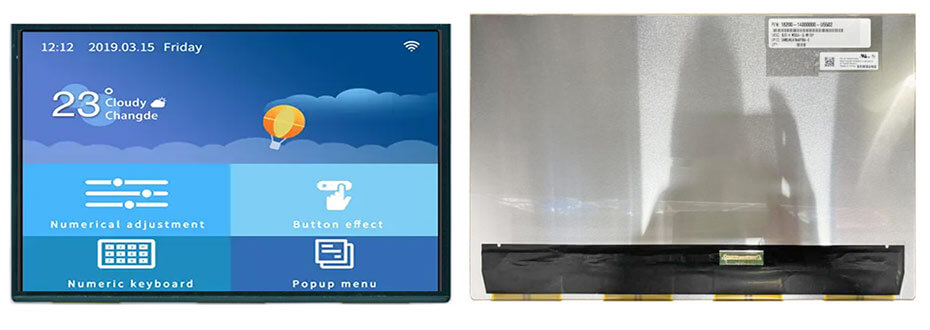

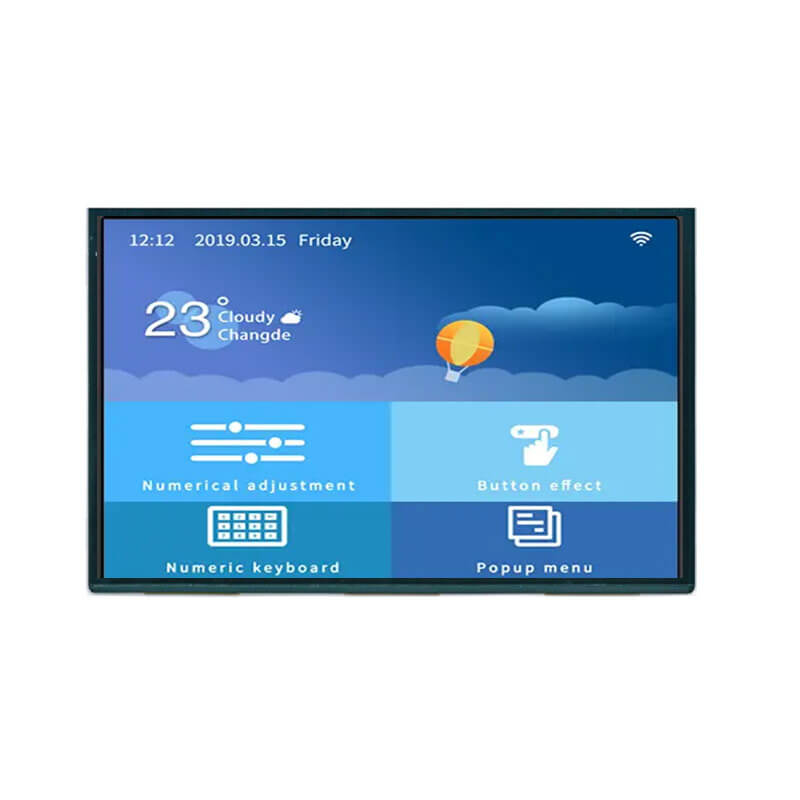

ATNA40YN04-0 supports display 3840(RGB)×2400 (WQUXGA) with aspect ratio of 16:10 (W:H), whose pixels are arranged in S-Stripe RGB, it's pixel density is 323 PPI. As for mechanical detail, it features active area of 301.824(W)×188.64(H) mm, outline size of 305.02(W)×196.24(H)×3.17(D) mm, with surface treament of Glare (Haze 0%), net weight of 160g (Max.), shape stype of Slim (PCBA Bent, T≤3.0mm). ATNA40YN04-0 can provides 400 cd/m² display brightness 100000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 1 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself . ATNA40YN04-0 utilizes eDP (4 Lanes) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 3.3/10.0V (Typ.)(VDD/VBAT). It's typical vertical frame rate (Fv) is 60Hz.

More 14 Inch 4k Display For Reference
NV140QUM-N61 (LCM, 3840x2160, eDP, 400nits, -20~60°C, 315.01x199.04mm)
NV140QUM-N53 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x196.14mm)
NV140QUM-N54 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x186.14mm)
NE140QUM-N61 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 315.01x195.67mm)
B140ZAN02.1 (LCM, 3840x2160, eDP, 500nits, 0~50°C, 305.894x197.746mm)
ATNA40YN04-0 (OLED, 3840x2400, eDP, 400nits, -20~70°C, 305.02x196.24mm)
