14.1 Inch 4K 3840x1100 Stretchsd Bar LCD Display LVDS 1200nits High Brightness IPS LCD Module For 3D Printer

Part No.:ET141UH01-R
Size:14.1″ inch
Resolution:3840x1100
Panel Interface:LVDS
Display mode:Transmissive
Outline Dimension:350.52x118.65mm
Active Area:344.218x98.604mm
Viewing Angle L/R/U/D:85/85/85/85
Brightness（cd/m2）:1200(Typ.)
Operation / Storage Temp:0~60°C / -20~65°C
Touch:no

14.1 Inch 4k Display Overview

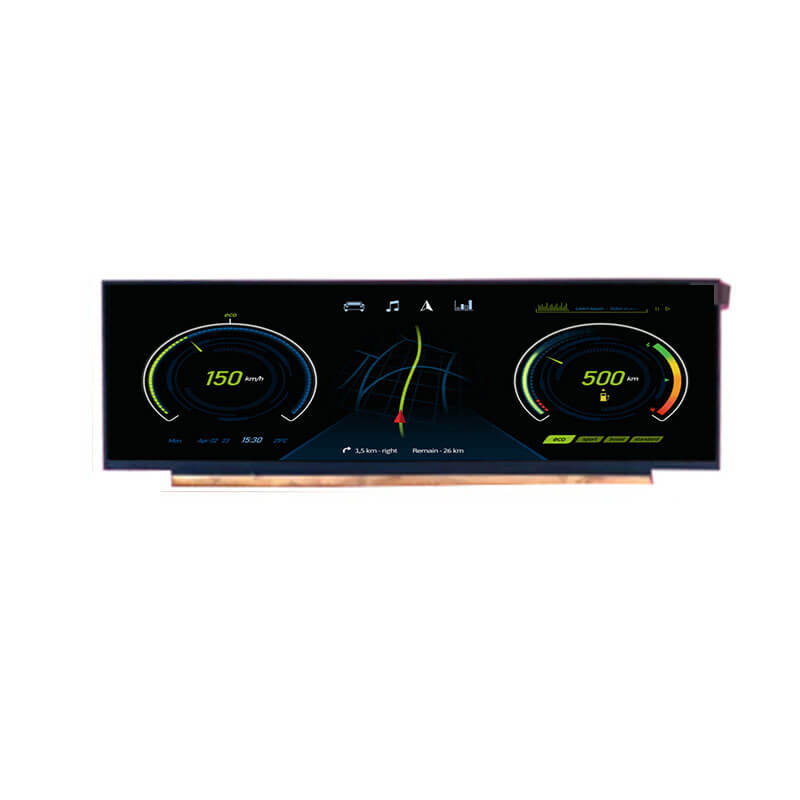

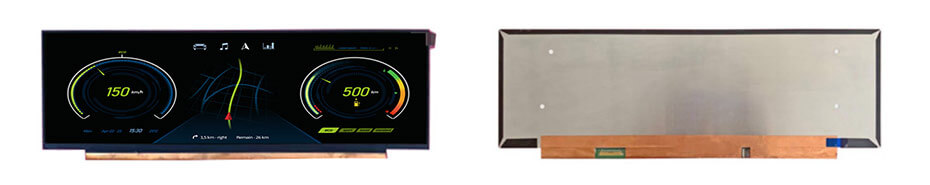

ET141UH01-R is a 14.1-inch diagonal stretched bar LCD display module. It supports a resolution of 3840 × 1100 with an ultra-wide aspect ratio, delivering clear and detailed images. The display adopts a transmissive mode and uses an LVDS interface for signal transmission. It features an active area of 344.218 (W) × 98.604 (H) mm and an outline dimension of 350.52 (W) × 118.65 (H) mm. The module provides a typical brightness of 1200 cd/m² and wide viewing angles of 85/85/85/85 (L/R/U/D), ensuring good visibility from multiple directions. ET141UH01-R operates within a temperature range of 0 to 60°C and can be stored at -20 to 65°C. This model does not include a touch function.

More 14.1 Inch 4k Display For Reference
NV140XTM-N52 (LCM, 3840x1100, eDP, 300nits, 0~60°C, 350.52x118.65mm)
ET141UH01-R(LCM, 3840x1100, LVDS, 1200nits, 0~60°C, 350.52x118.65mm)
