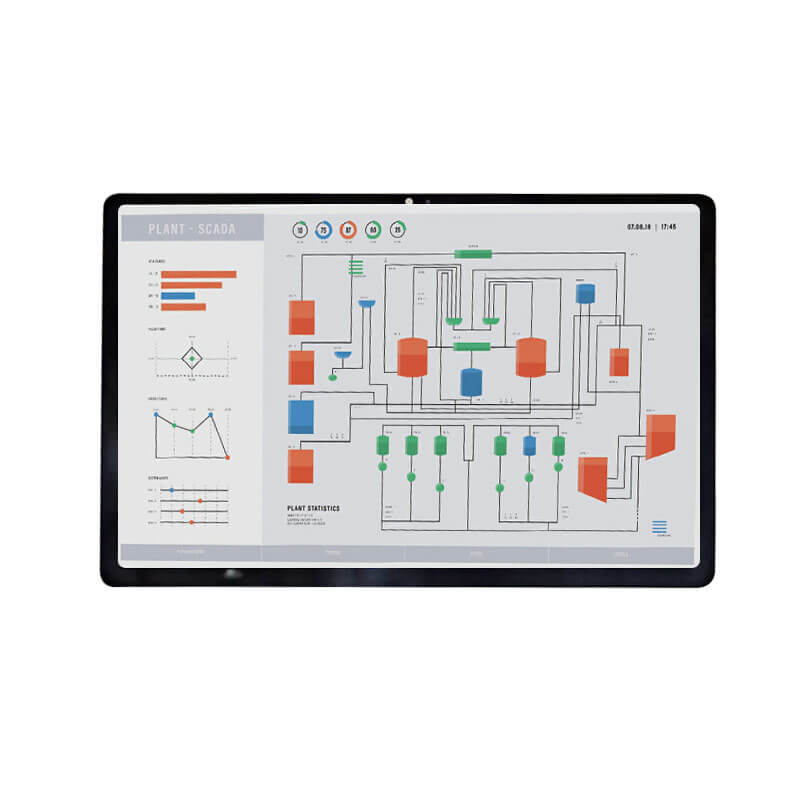

11.2 Inch OLCD Display 2560×1536 IPS AMOLED Display With On-Cell Touch

11.2 Inch AMOLED Display Overview

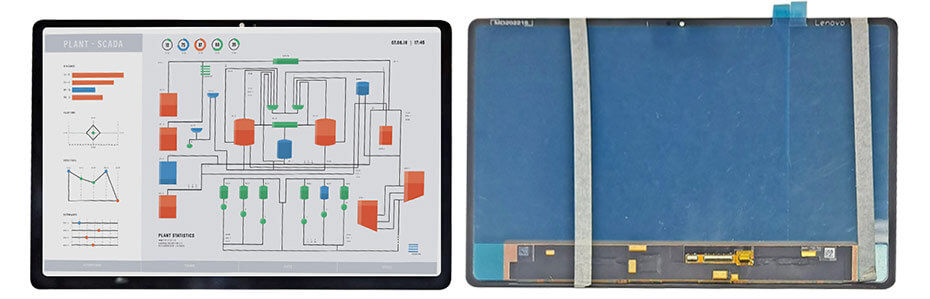

EB20QBC73.A is a 11.2 inch diagonal AM-OLED display screen product, it self emiting, touchscreen On-Cell Touch. EB20QBC73.A supports display 2560(RGB)×1536 with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 266 PPI. As for mechanical detail, it features active area of 244.22(W)×146.53(H) mm, outline size of 259.98(W)×162.99(H) mm, with surface treament of Anti Fingerprint + Antiglare, Hard coating (8H), net weight of 136±1g. EB20QBC73.A can provides 450 cd/m² display brightness 1000000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 2 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 100% (DCI-P3). This product emiting itself and have a working life time of 10K hours. EB20QBC73.A utilizes MIPI (2 ch, 4 data lanes) as it's signal inputting systerm, which connected by 62 pins Connector with power supply voltage of 1.8/3.3/6.7/4.6/-3.5V (Typ.)(VDDI/VCI/AVDD/ELVDD/ELVSS). It's typical vertical frame rate (Fv) is 120Hz.
