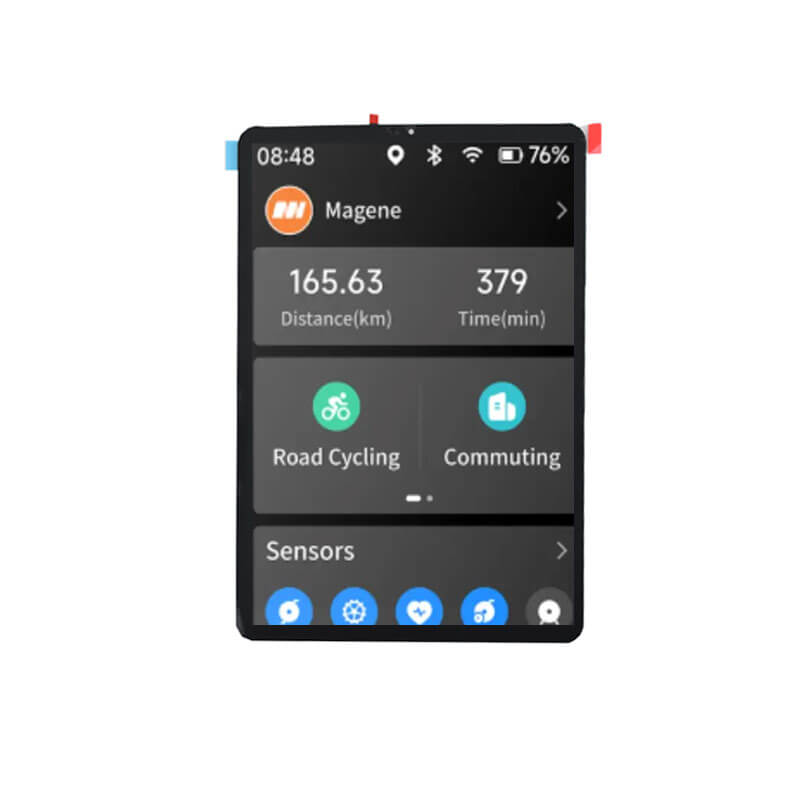

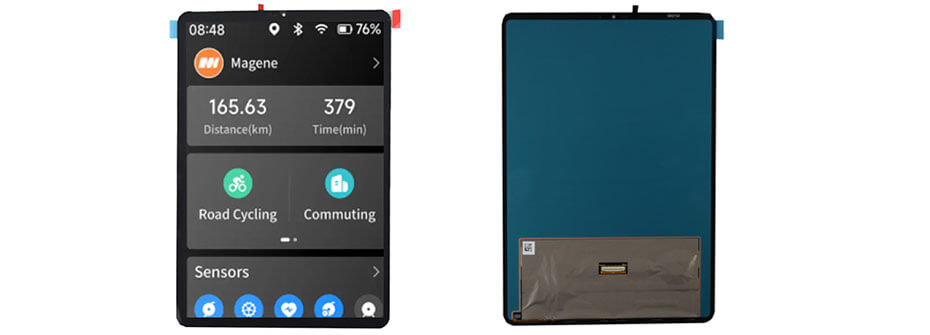

11.1 Inch AMOLED Display Overview
ET110AM01-YX is an 11.1 inch diagonal AMOLED display screen product, featuring self-emissive technology. ET110AM01-YX supports a resolution of 1728×2368 with an aspect ratio of approximately 3:4 (W:H) and offers wide viewing angles of 80/80/80/80 (L/R/U/D). It features an active area of 164.7(W) × 225.69(H) mm and an outline dimension of 241.4(W) × 175.9(H) mm, and adopts a MIPI interface for signal transmission. The display provides a brightness of 350 nits and operates within a temperature range of -20°C to 70°C (storage: -40°C to 80°C). With integrated On-Cell touch functionality, ET110AM01-YX is suitable for applications requiring both high-quality display and touch interaction.
AMOLED Displays Technology
YOURITECH. Comprehensive Manufacturing of Touchscreen, Driver Board Options
Youritech Driver Board
Youritech's R&D team provides experienced display panel motherboard solutions including industrial-grade and military-grade driver boards,manufacturing and designing industry-standard TTL/LVDS interface/CON driver boards, LCD driver boards/LCD inverters/EDP driver boards/4K driver boards,industrial displays solutions.
Youritech Production and Manufacturing
At Youritech, we design and manufacture standard, semi-custom and full custom LCD/OLED display modules,touch screen,driver board,open frame. Contact us today,let our engineering team quickly and accurately feedback you with details.
