10.4 Inch TFT LCD Display 960×1280 LVDS High Brightness 1200nits Wide Temperature LCD Display For Automotive

10.4 Inch Automotive Display Overview

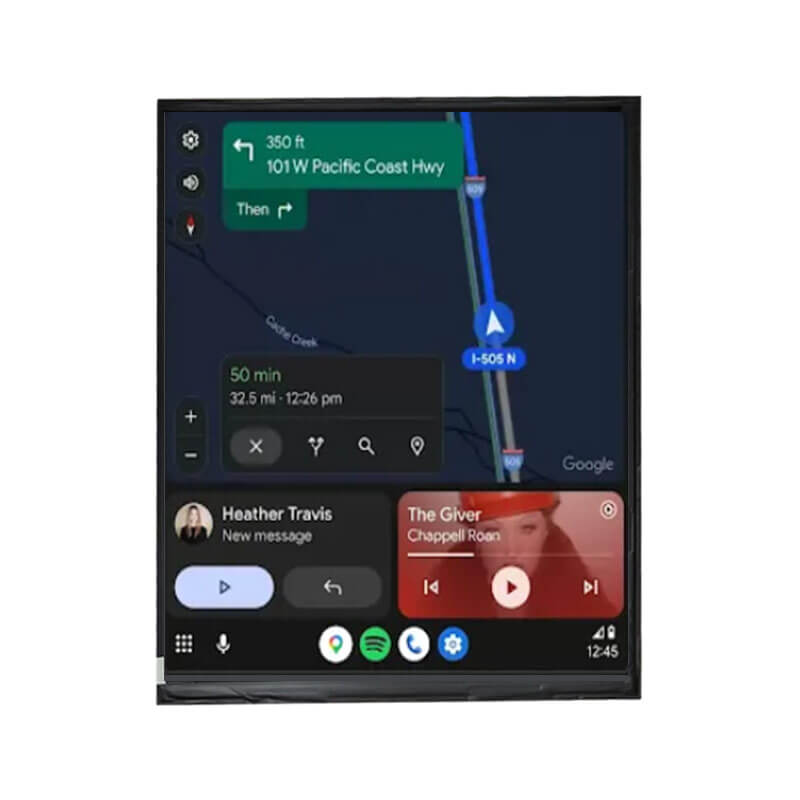

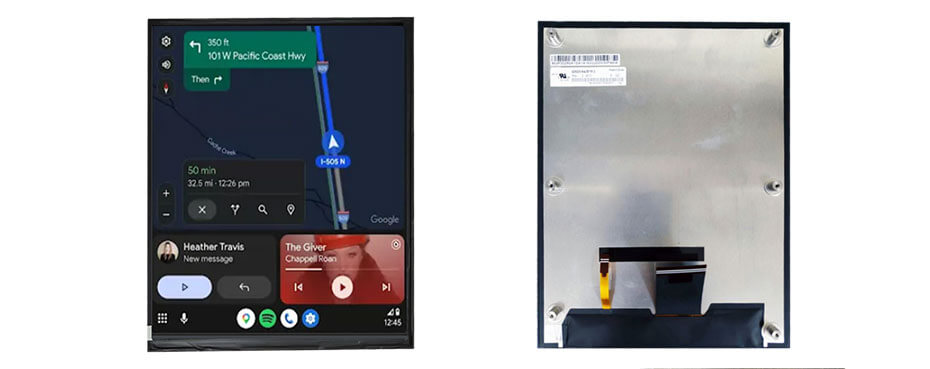

HSD104JPW1-B10 is a 10.4 inch diagonal a-Si TFT-LCD display screen product, with an incorporated WLED lighting system, without backlight driver, without touch screen.HSD104JPW1-B10 supports display 960(RGB)×1280 (Quad-VGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 158.4(W)×211.2(H) mm, outline size of 172.4(W)×227.9(H)×14.4(D) mm, with surface treament of Clear, Hard coating, Reflection 5.0% (Typ.), net weight of 414g (Typ.). As a IPS Pro, Normally Black, Transmissive LCM product, HSD104JPW1-B10 can provides 1000 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 30 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 10S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. HSD104JPW1-B10 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 60 pins FPC with power supply voltage of 3.3/6.0/-6.0/20/-10V (Typ.)(VDD/VDDP/VDDN/VGH/VGL). It's typical vertical frame rate (Fv) is 60Hz.

More 10.4 Inch Automotive Display For Reference
TM104SDHG40 (800×600, LVDS, TN, 400nits, -20~70°C, 243×184mm)
HSD104JPW1-B10 (960×1280, LVDS, IPS, 1000nits, -30~85°C, 172.4×227.9mm)
HSD104JXN1-A21 (1024×768, LVDS, IPS, 600nits, -30~85°C, 225.8×174.3mm)
